Quantile lines on violin plots are not rendered

Open
#1,400 3 comments 2 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

ggplotly
Dominant language
R
Stars
2.7k
Forks
641
PR merge metrics
No merged PRs in 30d

Description

When using draw_quantiles argument of ggplot2::geom_violin and converting the result with plotly::ggplotly, the quantile lines are shown on ggplot but not on plotly.

library(ggplot2)
library(plotly)
#>
#> Attaching package: 'plotly'
#> The following object is masked from 'package:ggplot2':
#>
#>     last_plot
#> The following object is masked from 'package:stats':
#>
#>     filter
#> The following object is masked from 'package:graphics':
#>
#>     layout

g <- ggplot(iris, aes(Species, Sepal.Length)) +
  geom_violin(draw_quantiles = c(0.25, 0.5, 0.75))
g

# ggplotly(g)

Created on 2018-11-12 by the reprex package (v0.2.1)

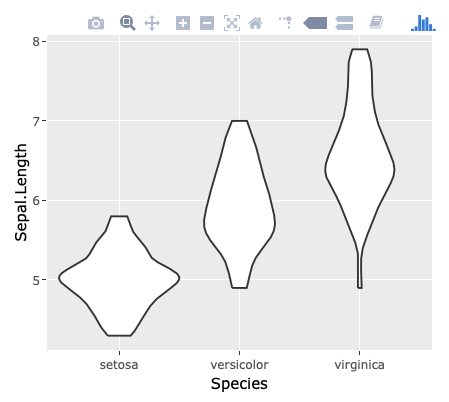

I'm not able to provided the result of ggplotly above. Still, by executing ggplotly(g) above, you'll find that the quantile lines disappear:

2018-11-12 14 38 02

Contributor guide

Open the contributing guide

First steps

  1. Read the whole issue, then the project's contributing guide.
  2. Comment on the issue to say you are picking it up — it saves two people doing the same work.
  3. Fork the repository and make your change on a branch.
  4. Open a pull request that references the issue number.

Research direction

Reproduce the issue with the supplied R example using ggplot2::geom_violin(draw_quantiles = c(0.25, 0.5, 0.75)) and plotly::ggplotly. Trace how violin layers and their quantile lines are converted, then verify that the quantile lines appear in the converted plot as they do in ggplot.
