Description

I use the uhdm to translate the orv64 SystemVerilog file into the verilog file, and want to do synthesis by yosys, the orv64 gitlab adress is here: [https://gitlab.com/picorio/OpenSource/hardware/orv64](url)
But there is some error when doing this translate , when the function include following format(Variables include output), the code where use this function will meet error. Here is an example in the orv64
```
function automatic void lru8_update_lru(
output logic [6:0] new_lru,
input logic [6:0] old_lru,
input logic [2:0] way_id
);
new_lru = old_lru;
new_lru[6] = ~old_lru[6];
if (way_id[2])
new_lru[5] = ~old_lru[5];
else
new_lru[4] = ~old_lru[4];

new_lru[way_id[2:1]] = ~old_lru[way_id[2:1]];

endfunction
```

and will meet this error
![148928605-79d1e517-0ad6-4f7b-a90e-caa9f0f783c6](https://user-images.githubusercontent.com/46994147/157805019-e4cc677c-c25f-48d1-8b1d-30fc1d3e5cfa.png)

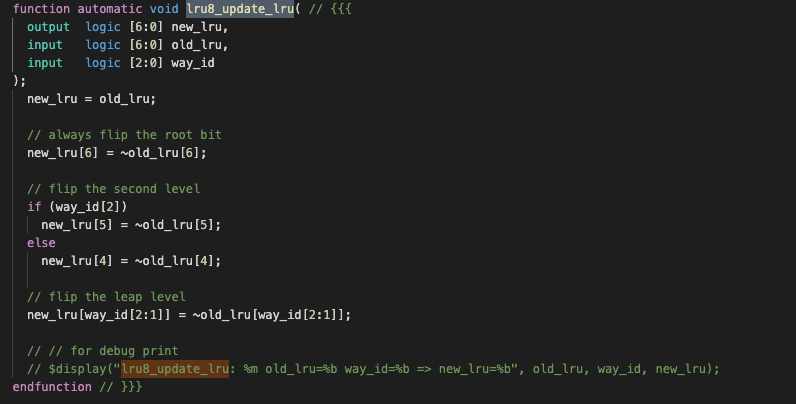

the function screenshot is this
![148929066-54736ff3-66b3-4b28-a381-db1aafa069ec](https://user-images.githubusercontent.com/46994147/157805116-3d57b7cd-fe4d-4691-bf85-6b8f08e1b7ad.png)

what we can do is change the source code where use this function, and expand this function where it is used, and this problem will be sovled.
