[Low priority] The curved hook stroke (撇鈎) might need improvements.

Aperta
#393 0 commenti 0 reazioni 0 assegnatari Vedi su GitHub
design
Lingua principale
Python
Stelle
17.2k
Fork
1.4k
Metriche di merge delle PR
Nessuna PR unita negli ultimi 30g

Descrizione

I apologize if my terminology for font editing may not be correct.

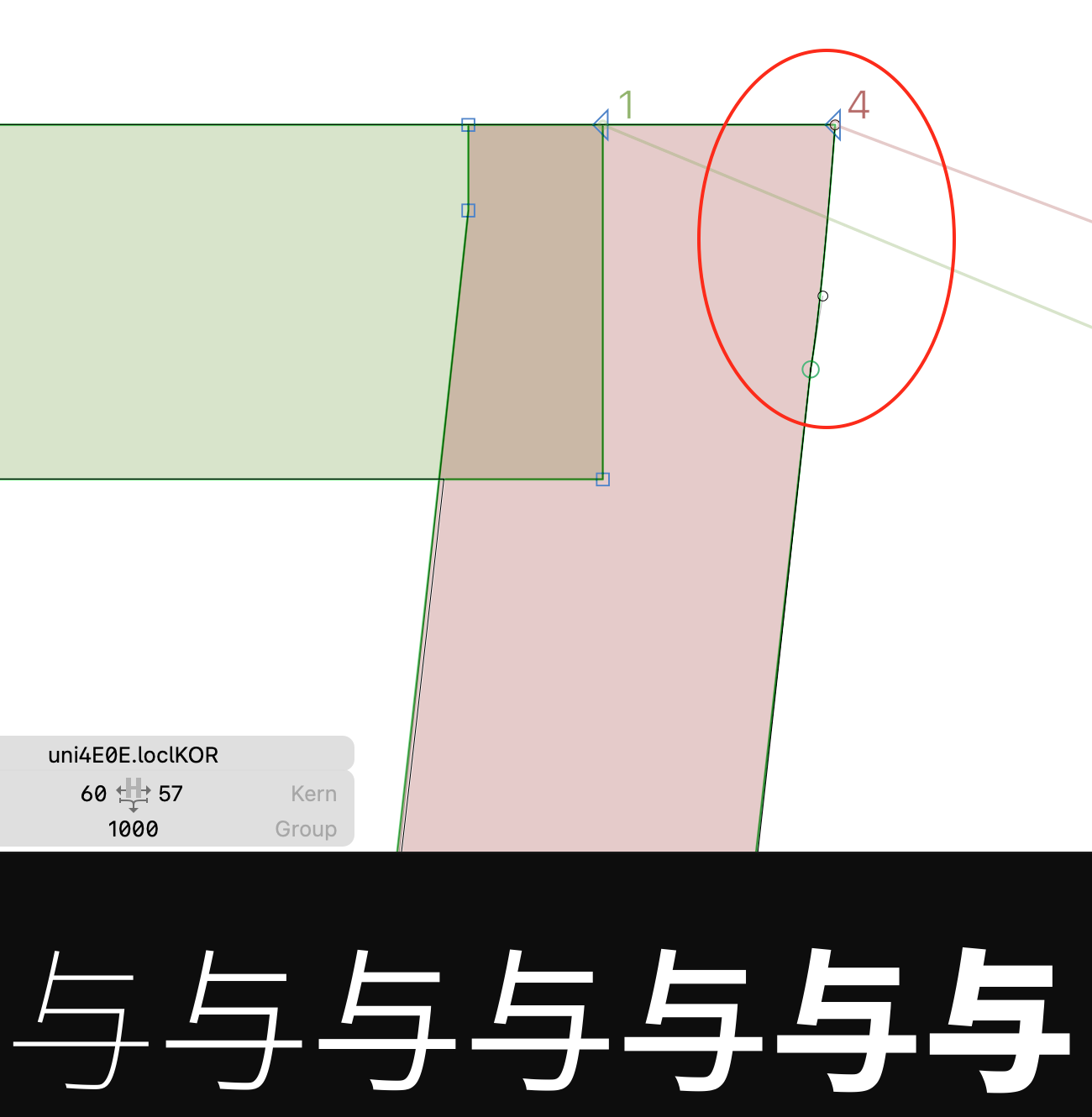

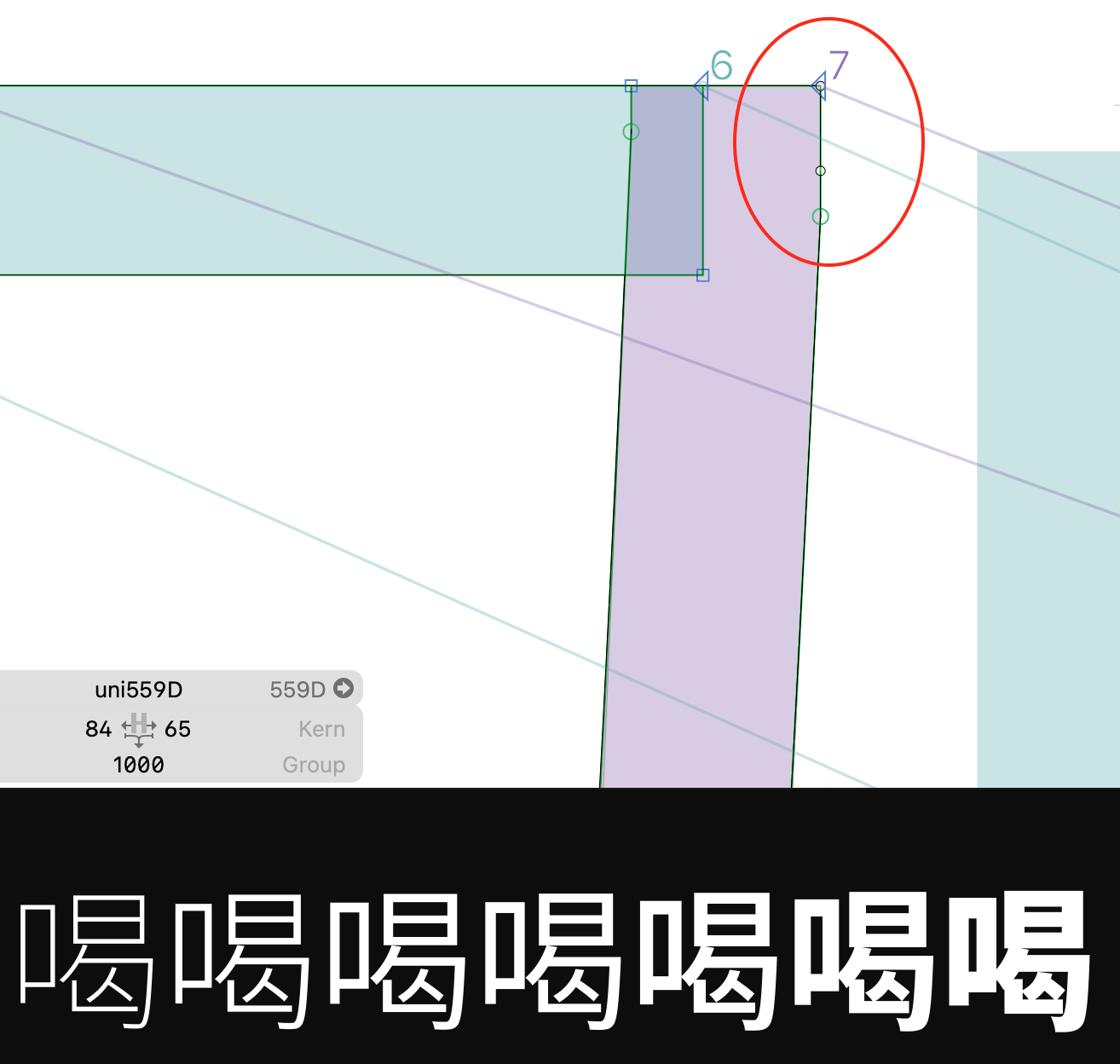

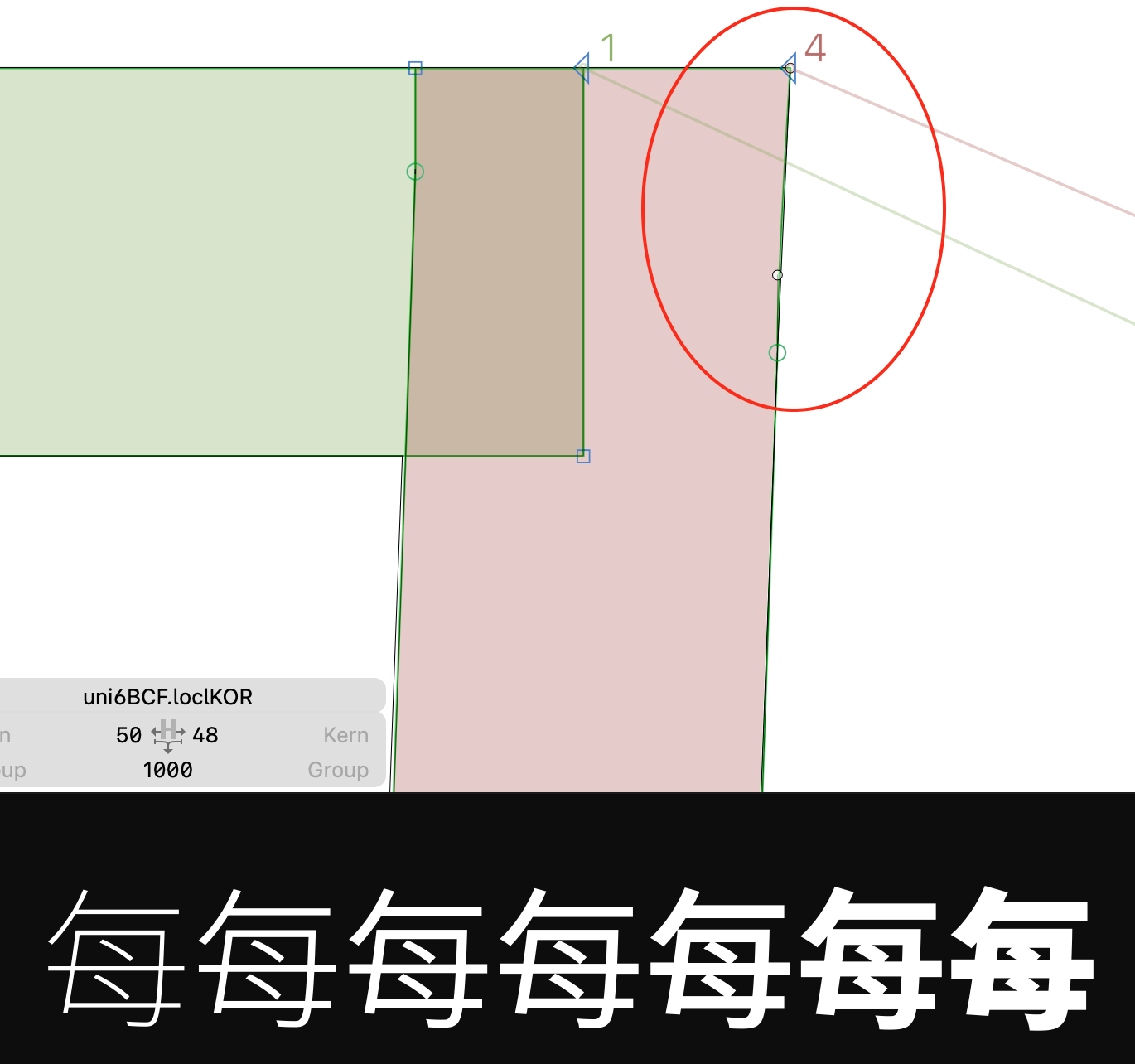

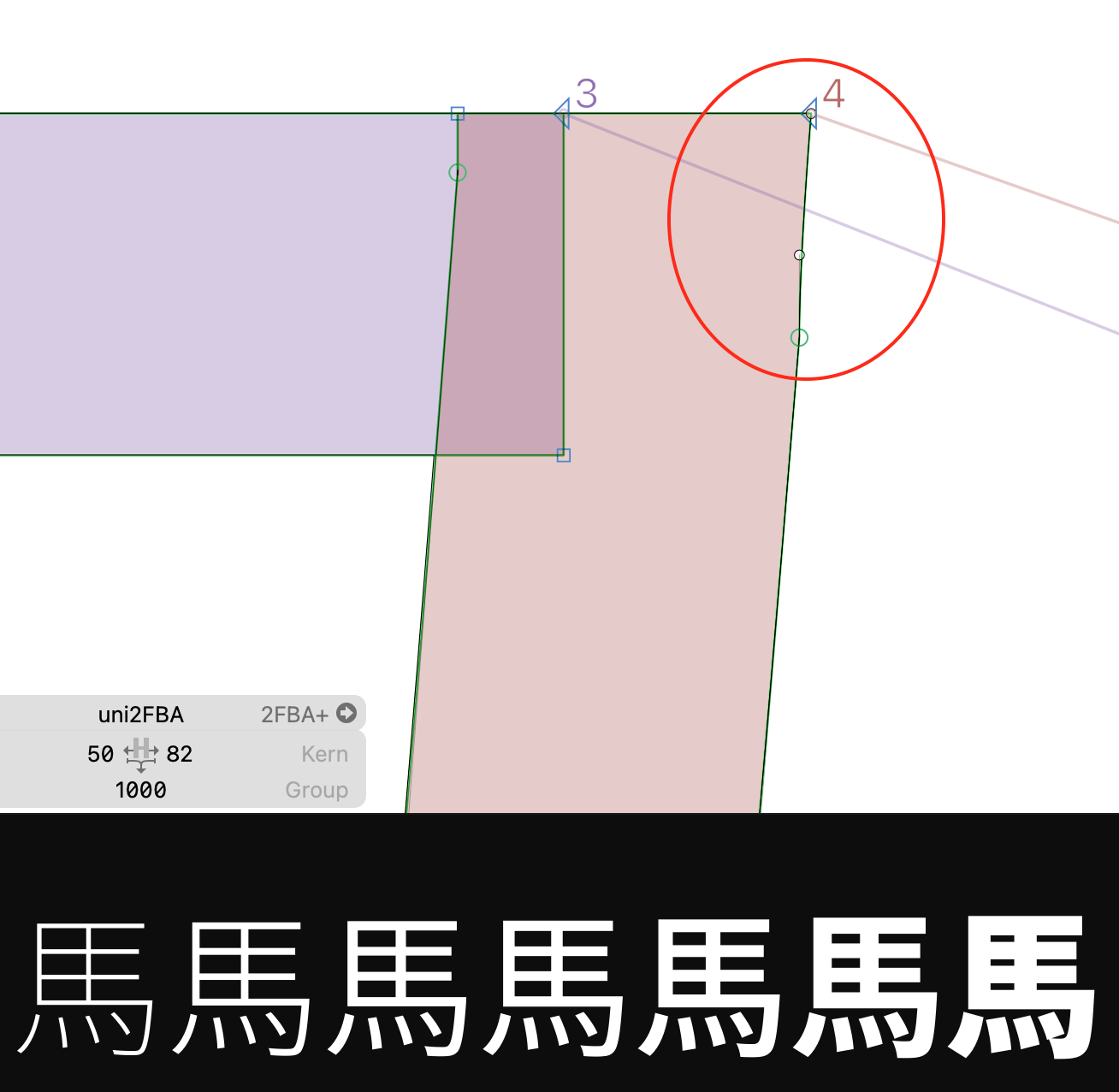

While the end result is not obvious, looking in the font software (Glyphs, for example), I see some minor kinks at the start of the curved-hook stroke (撇鈎), and only happens when looked at extremely close.

There is also another very minor issue with the left side also inconsistently having either a sharp (blue square) or smooth point (green circle), and that there is also two points put very close to each other (probably as a support node?), but that's not the main point as they are normally hidden. Perhaps I would like the idea of cleaner shapes, so that's why I point it out.

Unfortunately, virtually every character that incorporates the curved-hook stroke (撇鈎) has the flaw, for example, 馬, 每, 与, 曷, 方 and a lot more, across all locales, which means tens of thousands of glyphs and a lot of laborious work if this is to be improved. Therefore I am also putting this issue as "low priority" in the title, and I do not expect this to be addressed, even for the long term. (**EDIT:** 也 is not affected)

Screenshot 2023-03-05 at 17 03 33
Screenshot 2023-03-05 at 17 03 45
Screenshot 2023-03-05 at 17 03 56
Screenshot 2023-03-05 at 17 04 33

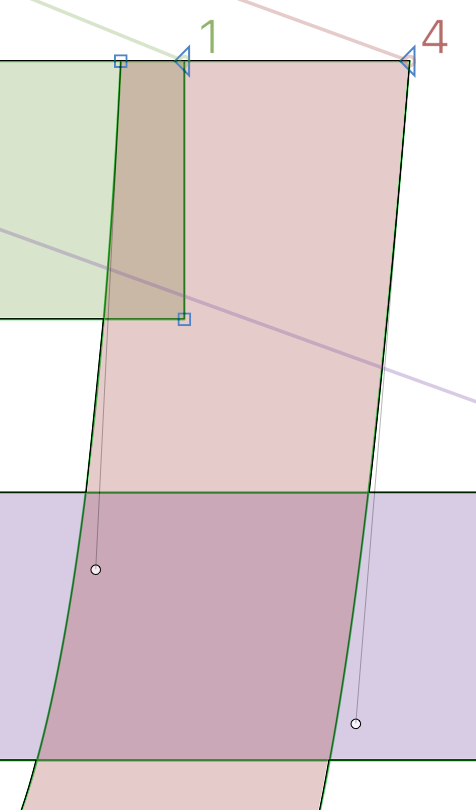

The solution is to remove the kinks and make the top left and right corner have a sharp curve node, as demonstrated in this picture. This could make for cleaner shapes.

Screenshot 2023-03-05 at 17 16 38
