`ggplotly` uses colour that doesn't match the displayed gradient when providing one single numeric value to `fill` or `colour`

Open
#1,958 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

Dominant language
R
Stars
2.7k
Forks
641
PR merge metrics
No merged PRs in 30d

Description

When converting from a ggplot object to a plotly interactive visualisation with ggplotly(), if there is only one numeric value for fill or colour, the wrong gradient colour is used according to the displayed legend. The legend uses a white-to-red gradient that doesn't match the blue gradient used in ggplot2.

library(ggplot2)
library(plotly)
# fill takes one numeric value
(single_value <- ggplot(mapping = aes(x = 1, y = 1, fill = 1)) +
  geom_col())

Convert to plotly:

# ggplotly(single_value)

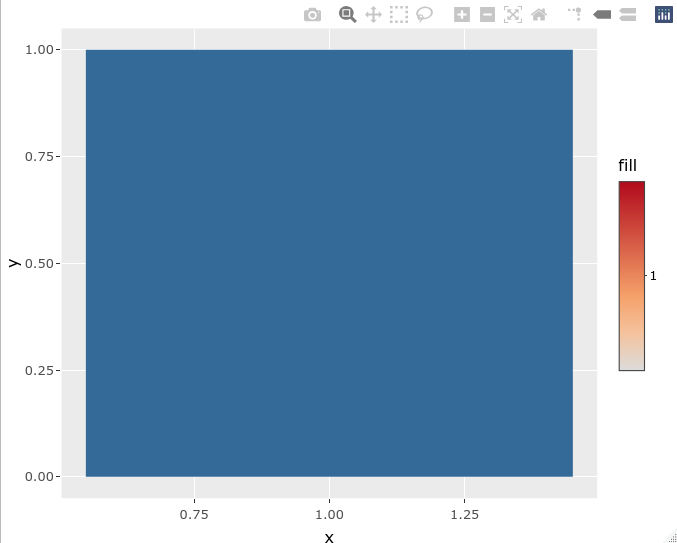

one_value

Using two numeric values works well:

# fill takes 2 numeric values
(two_values <- ggplot(mapping = aes(x = 1:2, y = 1:2, fill = 1:2)) +
    geom_col())

Convert to plotly:

# ggplotly(two_values)

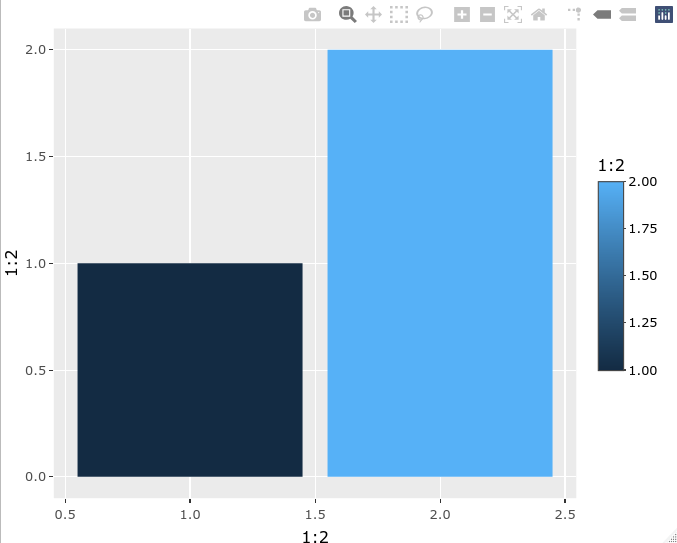

two_values

Using:

  • R 4.1.0
  • ggplot2 3.3.3
  • plotly 4.9.3
