Description

Case 1: Calendar event lasts longer than a week

The allDay property is false

Sample Code
import com.vaadin.annotations.Theme;
import com.vaadin.server.VaadinRequest;
import com.vaadin.ui.Calendar;
import com.vaadin.ui.UI;
import com.vaadin.ui.VerticalLayout;
import com.vaadin.ui.components.calendar.event.BasicEvent;
import com.vaadin.ui.components.calendar.event.BasicEventProvider;
import com.vaadin.ui.themes.ValoTheme;

import java.util.Date;
import java.util.GregorianCalendar;
import java.util.Locale;

@Theme(ValoTheme.THEME_NAME)
public class TestUI extends UI {

    @Override
    protected void init(VaadinRequest request) {
        java.util.Calendar date = new GregorianCalendar();
        date.set(2017, java.util.Calendar.SEPTEMBER, 4, 0, 0, 0);
        Date startDate = date.getTime();

        date.set(2017, java.util.Calendar.SEPTEMBER, 12, 0, 0, 0);
        Date endDate = date.getTime();

        BasicEventProvider eventProvider = new BasicEventProvider();
        BasicEvent event = new BasicEvent("Event 1", null, startDate, endDate);
        eventProvider.addEvent(event);

        final Calendar calendar = new Calendar(eventProvider);
        calendar.setLocale(Locale.ENGLISH);
        calendar.setSizeFull();
        date.set(2017, java.util.Calendar.SEPTEMBER, 1, 0, 0, 0);
        calendar.setStartDate(date.getTime());
        date.set(2017, java.util.Calendar.SEPTEMBER, 30, 0, 0, 0);
        calendar.setEndDate(date.getTime());

        VerticalLayout layout = new VerticalLayout(calendar);
        layout.setMargin(true);
        layout.setSpacing(true);
        setContent(layout);
    }
}

ER:
The event is fully displayed.

AR:

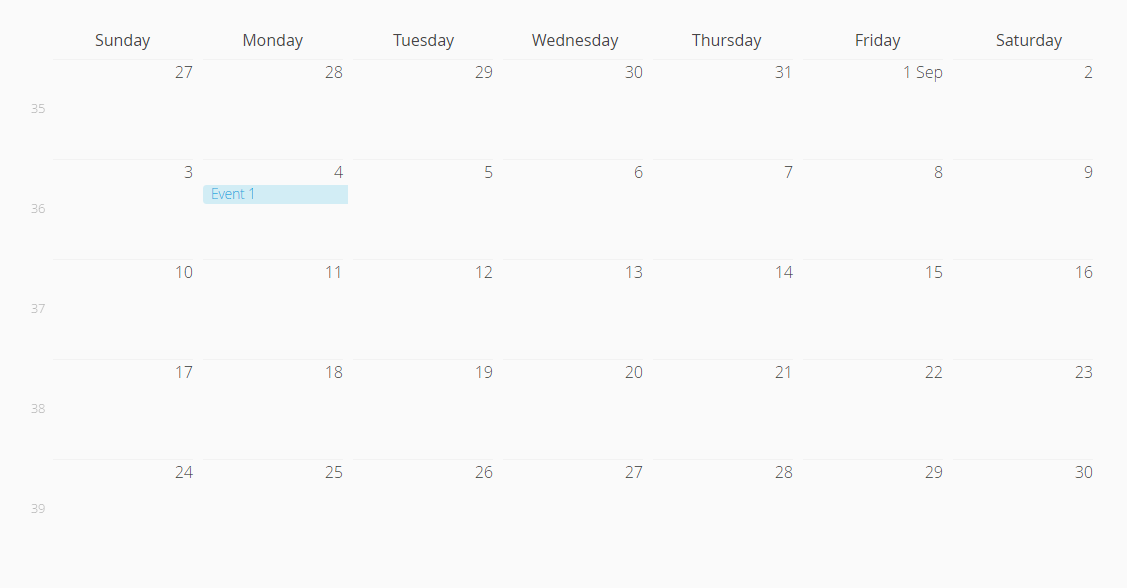

The visual representation of the event is cropped.

For instance, for the event from 2017-09-04 to 2017-09-12 is displayed as one-day event

Case 2: Calendar event lasts longer than a day but less than a week

The allDay property is false

ER:
The last day of the event has end-day style, i.e. has rounded corners in its visual representation.

AR:
The last day of the event has no end-day style


For case 1: the com.vaadin.client.ui.VCalendar#isEventInDayWithTime method compares the day of the week which results to a bug with events last longer than a week
For case 2: the com.vaadin.client.ui.calendar.schedule.SimpleDayCell#createMonthEventLabel does not take into account case with long-running events without allDay=true
