$ref in path method renders in default tag

Q&A (please complete the following information)

• OS: [linux]
• Browser: [chrome, firefox]
• Version: [latest?]
• Method of installation: [npm, also swagger.io]
• Swagger-UI version: [3.23.0]
• Swagger/OpenAPI version: [OpenAPI 3.0]

Content & configuration

Live example: code, doc

Example Swagger/OpenAPI definition:

openapi: 3.0.0
info:
  version: '1'
  title: ''
  description: 'Demo of a bug in swagger'
# Added by API Auto Mocking Plugin
servers:
  - description: SwaggerHub API Auto Mocking
    url: https://virtserver.swaggerhub.com/murrayju/Bug/1
definitions:
  parameters:
    sessionId:
      type: string
      in: path
      name: sessionId
      description: ID of the session.
      required: true
paths:
  /api/foo:
    post:
      summary: Foo
      description: |
        Does foo stuff
      tags:
      - Cat
      responses:
        200:
          description: Successful request
  /api/bar:
    post:
      $ref: '#/paths/~1api~1foo/post'

Swagger-UI configuration options:
Irrelevant (defaults)

Describe the bug you're encountering

The path definition that uses $ref renders in the default tag initially. Clicking on it (as if to expand) in the UI causes it to jump into the correct tag group.

To reproduce...

Steps to reproduce the behavior:

1. Go to https://app.swaggerhub.com/apis-docs/murrayju/Bug/1
2. Click on /api/bar
3. See UI jump to a new category

Expected behavior

The path should derive the correct tags from the reference at startup, and render in the correct tag group(s) initially.

Screenshots

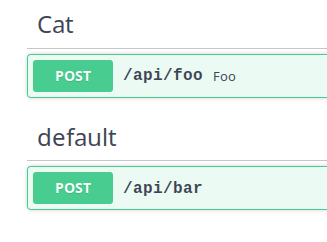

Initial load:

After click:

Additional context or thoughts

This is a simplified (minimal) reproduction of the bug. The real use case involves mostly similar routes, but with different path parameters. The idea is to define the endpoint definition once, and use a $ref to duplicate, along with allOf to override the parameters. Everything is working except for this weird UI glitch.

Start with the linked SwaggerHub reproduction and the minimal OpenAPI definition, especially the /api/bar path reference to /api/foo. Reproduce the initial load and click behavior; done means the referenced path derives its tags at startup and appears in the correct tag group without requiring a click.
