swagger-api / swagger-api/swagger-parser

ResolveFully option does not resolve all schemas in some paths

Open
#1,778 0 comments 9 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

Dominant language
Java
Stars
867
Forks
560
Avg merge
2d 21h
Merged PRs (30d)
7

Description

Swagger-parser version: 2.1.1

Example swagger spec:
The test case is quite large, so I put it in a github gist. Don't be surprised by the names of the paths and schemes - I masked the critical data.

Description:

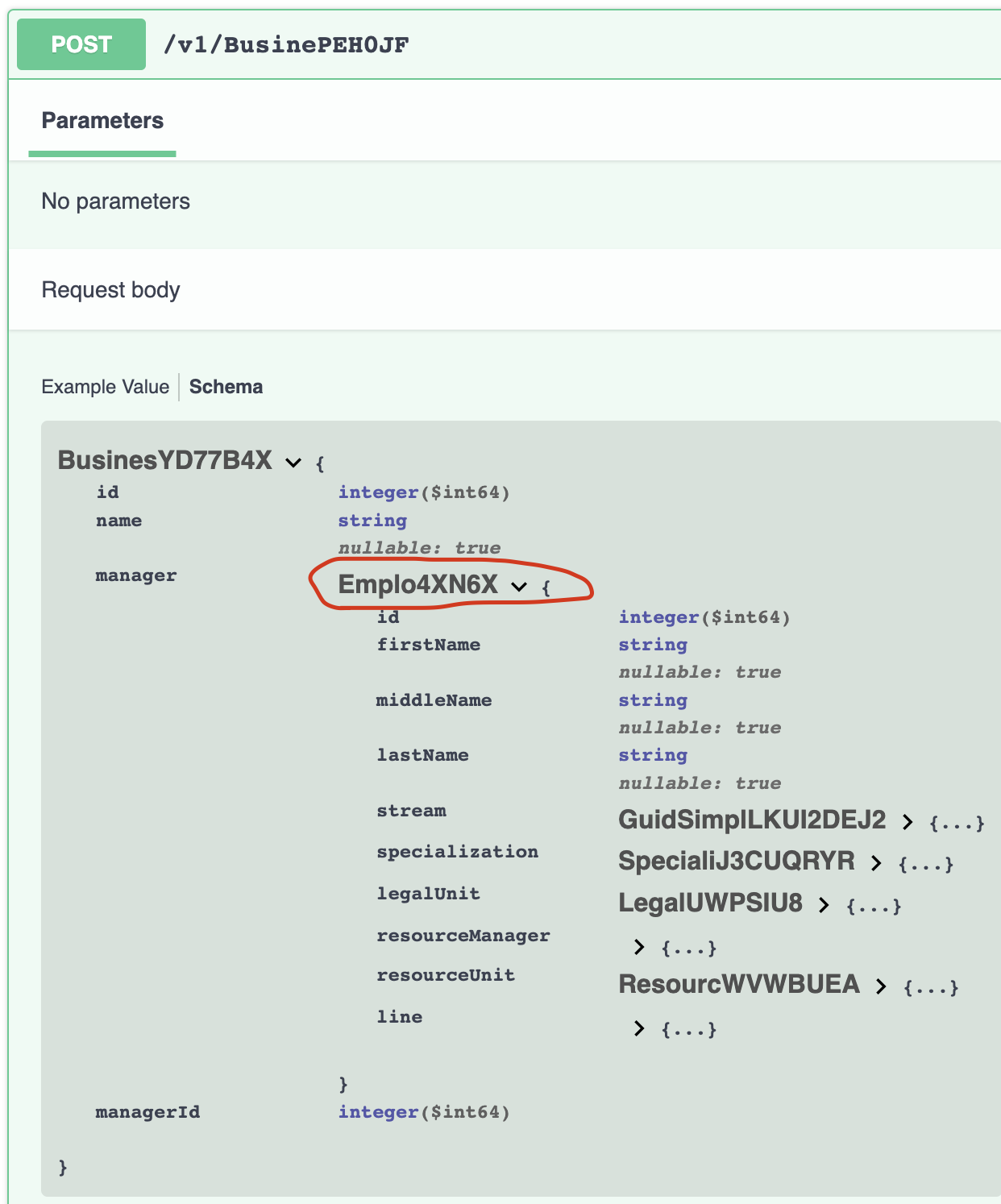

When using the ResolveFully option, I get requests with unresolved links. For example, take the request POST /v1/BusinePEH0JF. In swagger-ui it renders correctly - in the request body in the manager field, the Emplo4XN6X schema is resolved:

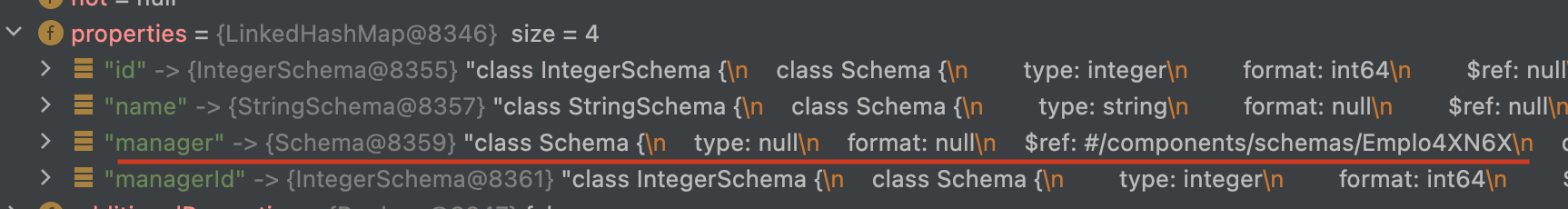

But swagger-parser gives this result:

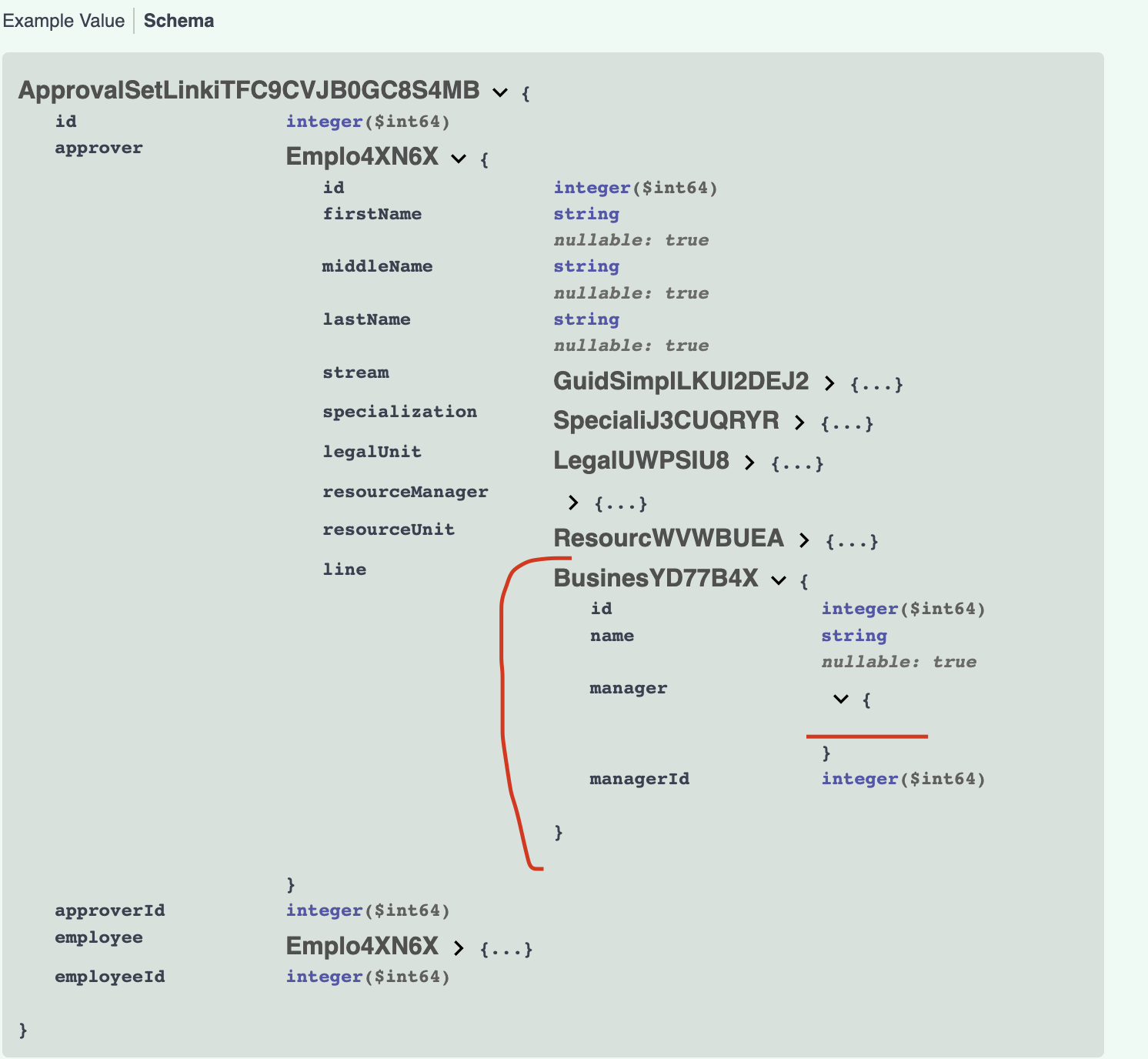

Here the link is not resolved. This is most likely due to the fact that the parent schema BusinesYD77B4X in this request is stored as such in resolvedModels due to the fact that it is also used in other requests, such as POST /v1/ApprovalSetU0C9RY71SHD/manager-to-employees. Here, the manager field is empty, because this scheme has already been used above in the approver field.


Reproduction of the error:

val parseOptions = new ParseOptions()
parseOptions.setResolve(true)
parseOptions.setResolveFully(true)

val openAPI = new OpenAPIV3Parser().read(swaggerSpec, null, parseOptions)

Expected result:
Like on the first screen in swagger-ui

Thanks!

Contributor guide

Open the contributing guide

First steps

  1. Read the whole issue, then the project's contributing guide.
  2. Comment on the issue to say you are picking it up — it saves two people doing the same work.
  3. Fork the repository and make your change on a branch.
  4. Open a pull request that references the issue number.

Research direction

Start with OpenAPIV3Parser.read and the ParseOptions resolve/resolveFully settings, reproducing the case from the linked gist. Trace how the shared BusineYD77B4X schema is handled when parsing the two requests, then verify that the manager field and Emplo4XN6X schema are fully resolved in both paths.

Written by the indexing model from the issue text.
