Description

Description

Hi,

I have the following swagger yaml.

When I'm generating the backend code, it makes only one controller. Which I think is on the basis of first part of URI i.e. "inbound". PFB the screenshot.

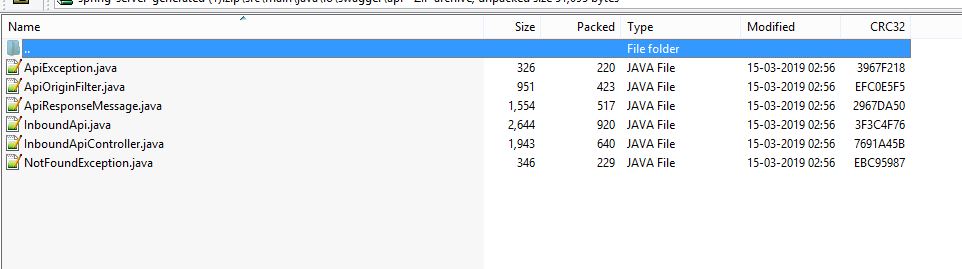

spring-swagger

But, while generating the frontend code, it makes two services, based upon the tags that I have defined and the code for path is in the file with the tag name.

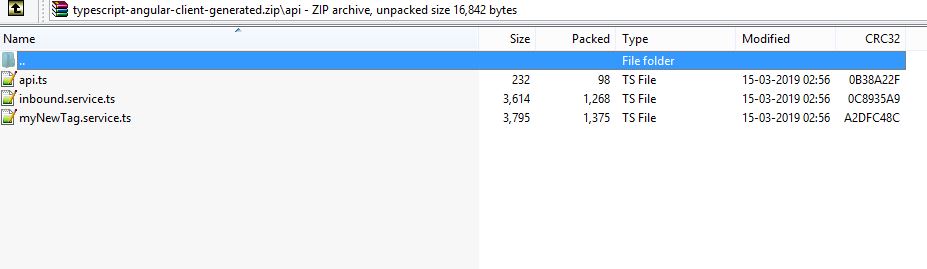

typescript-swagger

Why is that? This is not the same logical grouping of endpoints that I'd like to see in my code. I think this needs to be re-looked or fixed.

Swagger-codegen version

Downloading from the web (https://editor2.swagger.io)

Swagger declaration file content or url
openapi: 3.0.0
info:
  title: Yard Management System
  description: Rest endpoints description of YMS.
  version: 0.1.9
servers:
  - url: http://localhost:4200
    description: Inbound Container Management module API description.
tags:
  - name: MyNewTag
    description: My new tag desc.
  - name: Inbound
    description: Operations related to the Organization.

paths:
  /inbound/container/search:
    post:
      tags:
      - MyNewTag
      security:
        - Bearer: []
      operationId: searchInBound
      summary: Search Inbound Containers.
      description: 1. From Date should be less than to Date.
                   2. Difference between From and To Date should not be     greater than 3 months.
                   3. Search Button should be disabled when no search       criteria is filled.
                   4. Container format Check(Length should be 11, 4         alphabets followed by 7digits).
      responses:
        '200':
         description: Records Found
         content:
          application/body:
              schema:
                items:
                  $ref: '#/components/schemas/InBoundDAOData'

  /inbound/container/addUpdate:
    post:
      tags:
         - Inbound
      security:
         - Bearer: []
      operationId: addUpdateInBound
      summary: Add, Update and Delete
      description: Receiving process for all containers, add/update/delete container and RFID tag to the container.

      responses:
       '200':
        description: Added/Updated Successfully
        content:
          application/body:
              schema:
                 items:
                    $ref: '#/components/schemas/InBoundDAOData'
components:
  schemas:
    InBoundDAOData:
       type: object
       properties:
          containerNum:
           type: string
          userId:
           type: string
          status:
           type: string
          yardId:
           type: string
          offset:
            type: string
          limit :
             type: integer
          sortType:
             type: string
          sortColumn:
              type: string
          customerCode:
            type: integer
Command line used for generation
Steps to reproduce

Paste the swagger yaml into editor and generate the spring and typescript-angular code.
