Description

Description

Endpoint parameters of style deepObject dont have description in generated page. E.g. in declaration file:

 "parameters": [
  {
    "name": "deepObject_parameter",
    "in": "query",
    "description": "Decription of deepObject parameter",
    "style": "deepObject",
    "schema": {
      "$ref": "#/components/schemas/deepObjectSchema"
    }
  }

and deepObjectSchema:

  "deepObjectSchema": {
    "properties": {
      "object1": {
        "description": "Object one description.",
        "type": "string"
      },
      "object2": {
        "description": "Object two description.",
        "type": "string"
      }
    },
    "type": "object"
  }

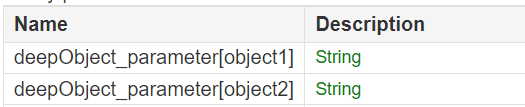

generate the following output in html page:
Where none of inlined deepObject parameter has any description, neither description of "deepObject_parameter" itself nor description of objects in "deepObjectSchema".

Swagger-codegen version
 <groupId>io.swagger.codegen.v3</groupId>
 <artifactId>swagger-codegen-maven-plugin</artifactId>
 <version>3.0.33</version>
Swagger declaration file content or url

Example json declaration file that reproduces the problem:
https://gist.github.com/pakhopav/73c3c6feabdf8e049b35eeaba73025d6

Command line used for generation
mvn -f pom-generators.xml io.swagger.codegen.v3:swagger-codegen-maven-plugin:generate
Steps to reproduce

Generate html page using declaration file provided by the gist link above.

Related issues/PRs
Suggest a fix/enhancement

Context for templates should have description data for deepObject parameters, that could be than accessed in
https://github.com/swagger-api/swagger-codegen/blob/master/modules/swagger-codegen/src/main/resources/htmlDocs2/param.mustache template
