How to bind to two groups with the same destination?

@sabbyanandan commented on Tue May 04 2021

@Synchronized1 commented on Fri Dec 11 2020

This working mode is similar to rabbitmq:https://www.rabbitmq.com/tutorials/tutorial-five-python.html

 spring:
  rabbitmq:
    addresses: 192.168.1.102
    username: admin
    password: 123456
    virtual-host: myVH
  cloud:
    stream:
      binders:
        myRabbitMQ:
          type: rabbit
      bindings:
        orderMsgOutput:
          destination: order.exchange
          binder: myRabbitMQ
          group: order.release.queue
        orderMsgInput:
          destination: order.exchange
          binder: myRabbitMQ
          group: order.release.queue

        stockMsgOutput:
          destination: stock.exchange
          binder: myRabbitMQ
          group: stock.release.queue
        stockMsgInput:
          destination: stock.exchange
          binder: myRabbitMQ
          group: stock.release.queue

        orderReleaseStockOutput:
          destination: order.exchange
          binder: myRabbitMQ
          group: stock.release.queue

        orderReleaseStockInput:
          destination: order.exchange
          binder: myRabbitMQ
          group: stock.release.queue

      rabbit:
        bindings:
          orderMsgOutput:
            producer:
              delayedExchange: true
              routingKeyExpression: '''order.release'''
          orderMsgInput:
            consumer:
              delayedExchange: true
              bindingRoutingKey: order.release.#
              acknowledgeMode: manual
              queueNameGroupOnly: true
          stockMsgOutput:
            producer:
              delayedExchange: true
              routingKeyExpression: '''stock.release'''

          stockMsgInput:
            consumer:
              delayedExchange: true
              bindingRoutingKey: stock.release.#
              acknowledgeMode: manual
              queueNameGroupOnly: true

          orderReleaseStockOutput:
            producer:
              delayedExchange: true
              routingKeyExpression: '''order.stock.release'''

          orderReleaseStockInput:
            consumer:
              delayedExchange: true
              bindingRoutingKey: order.stock.release.#
              acknowledgeMode: manual
              queueNameGroupOnly: true

I want order.exchange to be bound with stock.release.queue and order.release.queue at the same time

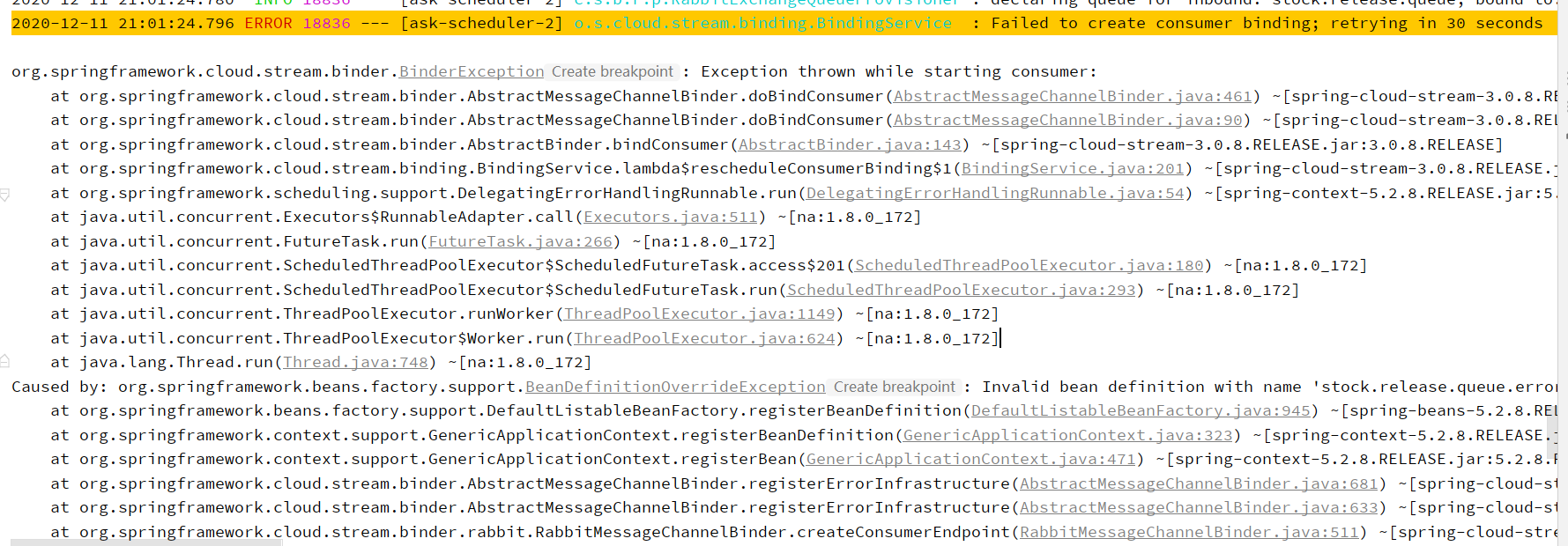

  2020-12-11 21:01:24.796 ERROR 18836 --- [ask-scheduler-2] o.s.cloud.stream.binding.BindingService  : Failed to create consumer binding; retrying in 30 seconds

org.springframework.cloud.stream.binder.BinderException: Exception thrown while starting consumer:
	at org.springframework.cloud.stream.binder.AbstractMessageChannelBinder.doBindConsumer(AbstractMessageChannelBinder.java:461) ~[spring-cloud-stream-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.cloud.stream.binder.AbstractMessageChannelBinder.doBindConsumer(AbstractMessageChannelBinder.java:90) ~[spring-cloud-stream-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.cloud.stream.binder.AbstractBinder.bindConsumer(AbstractBinder.java:143) ~[spring-cloud-stream-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.cloud.stream.binding.BindingService.lambda$rescheduleConsumerBinding$1(BindingService.java:201) ~[spring-cloud-stream-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.scheduling.support.DelegatingErrorHandlingRunnable.run(DelegatingErrorHandlingRunnable.java:54) ~[spring-context-5.2.8.RELEASE.jar:5.2.8.RELEASE]
	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) ~[na:1.8.0_172]
	at java.util.concurrent.FutureTask.run(FutureTask.java:266) ~[na:1.8.0_172]
	at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$201(ScheduledThreadPoolExecutor.java:180) ~[na:1.8.0_172]
	at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:293) ~[na:1.8.0_172]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) ~[na:1.8.0_172]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) ~[na:1.8.0_172]
	at java.lang.Thread.run(Thread.java:748) ~[na:1.8.0_172]
Caused by: org.springframework.beans.factory.support.BeanDefinitionOverrideException: Invalid bean definition with name 'stock.release.queue.errors.recoverer' defined in null: Cannot register bean definition [Root bean: class [org.springframework.integration.handler.advice.ErrorMessageSendingRecoverer]; scope=; abstract=false; lazyInit=null; autowireMode=0; dependencyCheck=0; autowireCandidate=true; primary=false; factoryBeanName=null; factoryMethodName=null; initMethodName=null; destroyMethodName=null] for bean 'stock.release.queue.errors.recoverer': There is already [Root bean: class [org.springframework.integration.handler.advice.ErrorMessageSendingRecoverer]; scope=; abstract=false; lazyInit=null; autowireMode=0; dependencyCheck=0; autowireCandidate=true; primary=false; factoryBeanName=null; factoryMethodName=null; initMethodName=null; destroyMethodName=null] bound.
	at org.springframework.beans.factory.support.DefaultListableBeanFactory.registerBeanDefinition(DefaultListableBeanFactory.java:945) ~[spring-beans-5.2.8.RELEASE.jar:5.2.8.RELEASE]
	at org.springframework.context.support.GenericApplicationContext.registerBeanDefinition(GenericApplicationContext.java:323) ~[spring-context-5.2.8.RELEASE.jar:5.2.8.RELEASE]
	at org.springframework.context.support.GenericApplicationContext.registerBean(GenericApplicationContext.java:471) ~[spring-context-5.2.8.RELEASE.jar:5.2.8.RELEASE]
	at org.springframework.cloud.stream.binder.AbstractMessageChannelBinder.registerErrorInfrastructure(AbstractMessageChannelBinder.java:681) ~[spring-cloud-stream-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.cloud.stream.binder.AbstractMessageChannelBinder.registerErrorInfrastructure(AbstractMessageChannelBinder.java:633) ~[spring-cloud-stream-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.cloud.stream.binder.rabbit.RabbitMessageChannelBinder.createConsumerEndpoint(RabbitMessageChannelBinder.java:511) ~[spring-cloud-stream-binder-rabbit-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.cloud.stream.binder.rabbit.RabbitMessageChannelBinder.createConsumerEndpoint(RabbitMessageChannelBinder.java:129) ~[spring-cloud-stream-binder-rabbit-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	at org.springframework.cloud.stream.binder.AbstractMessageChannelBinder.doBindConsumer(AbstractMessageChannelBinder.java:407) ~[spring-cloud-stream-3.0.8.RELEASE.jar:3.0.8.RELEASE]
	... 11 common frames omitted

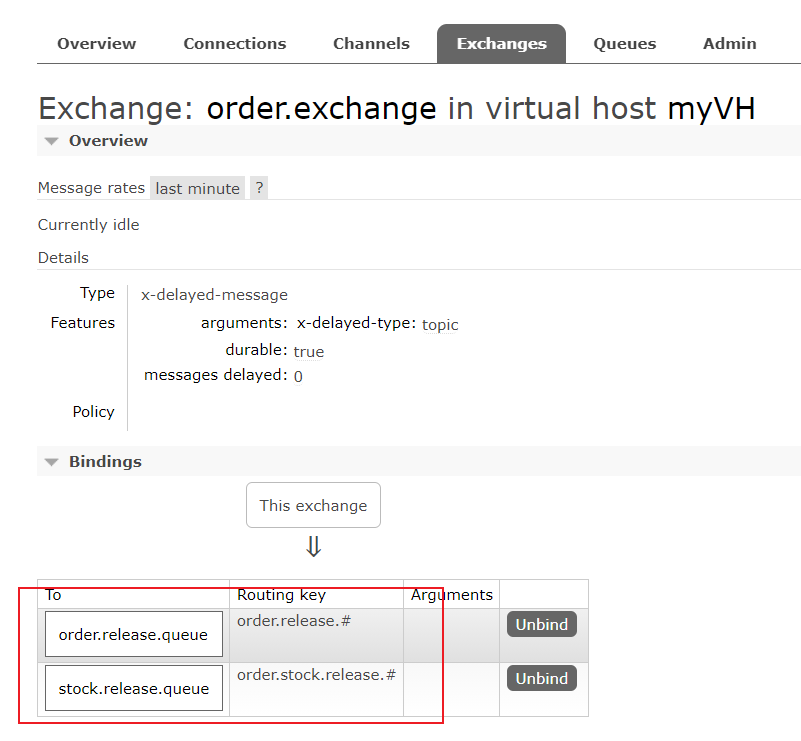

The monitoring station of rabbimq looks normal, but the program throws an exception

Start by examining AbstractMessageChannelBinder.registerErrorInfrastructure and RabbitMessageChannelBinder.createConsumerEndpoint, the entry points named in the stack trace. Reproduce the configuration with both groups using the same destination, then determine whether consumer binding can complete without the duplicate stock.release.queue.errors.recoverer definition; add or update coverage for the supported behavior.
