Description

Is your feature request related to a problem? Please describe.
I am trying to use transitions (----) in the docstrings of my Python package members but Sphinx outputs an error message when I do that and the generated html does not contain a transition.

Here is a minimal example. The function below belongs to my_module.

def foobar():
    r"""Foo

    ----

    Bar
    """
    pass

This is my Sphinx's main index.rst file:

.. autosummary::
    :toctree: _api_members

    my_module.foobar

Trying to make the html will output the following message:

docstring of my_module.foobar:3: WARNING: Unexpected section title or transition.

And as can be seen below, the output does not contain the expected transition.


I believe the only changes I did to my default conf.py are:

extensions = [
    'sphinx.ext.autodoc',
    'sphinx.ext.autosummary',
]

autosummary_generate = True
autosummary_imported_members = True

Describe the solution you'd like
I would like to be able to use ---- in docstrings similarly to regular rst.

Describe alternatives you've considered
The only way I found to solve this is to use raw html to print a <hr>, but this is really inelegant solution that polutes the docstrings.

def foobar():
    r"""Foo

    .. raw:: html

        <hr>

    Bar
    """
    pass

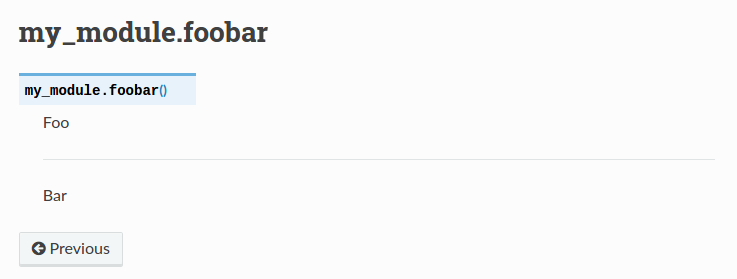

Producing the expected output with the horizontal rule:
