torchvision.io.read_video mirrors videos of BDD100k and sometimes rotates them 180 degrees

🐛 Bug

The function torchvision.io.read_video(path, start_pt, end_pt, pts_unit='sec') flips videos horizontally and for around half of the videos, also rotates them 180 degrees. The videos in question are from the dataset BDD100k. I believe they have been collected with an iPhone, and are in .mov format.

To Reproduce

Steps to reproduce the behavior:

import torch
import torchvision as tv
import matplotlib.pyplot as plt

vid1, _, _ = tv.io.read_video('data/bdd100k/bdd100k/videos/train/011f8481-b14725fa.mov', 9.5, 10.5, pts_unit='sec')
vid2, _, _ = tv.io.read_video('data/bdd100k/bdd100k/videos/train/019c8305-3a3be0d6.mov', 9.5, 10.5, pts_unit='sec')

# vid1.size() -> torch.Size([31, 1280, 720, 3])

plt.imshow(vid1[0].permute(1, 0, 2))
plt.show() # See first figure
plt.imshow(vid2[0].permute(1, 0, 2))
plt.show() # See second figure

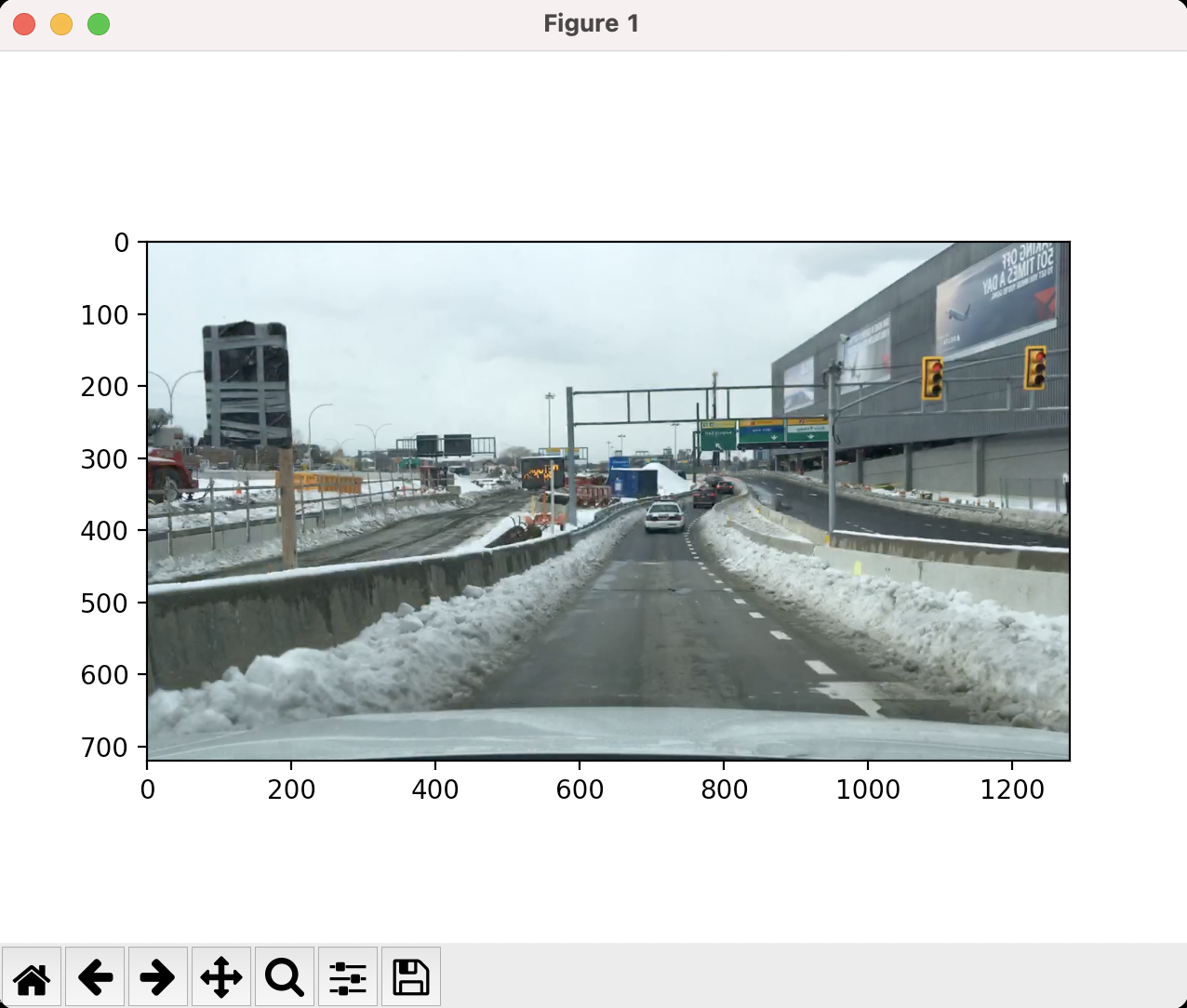

Figures:

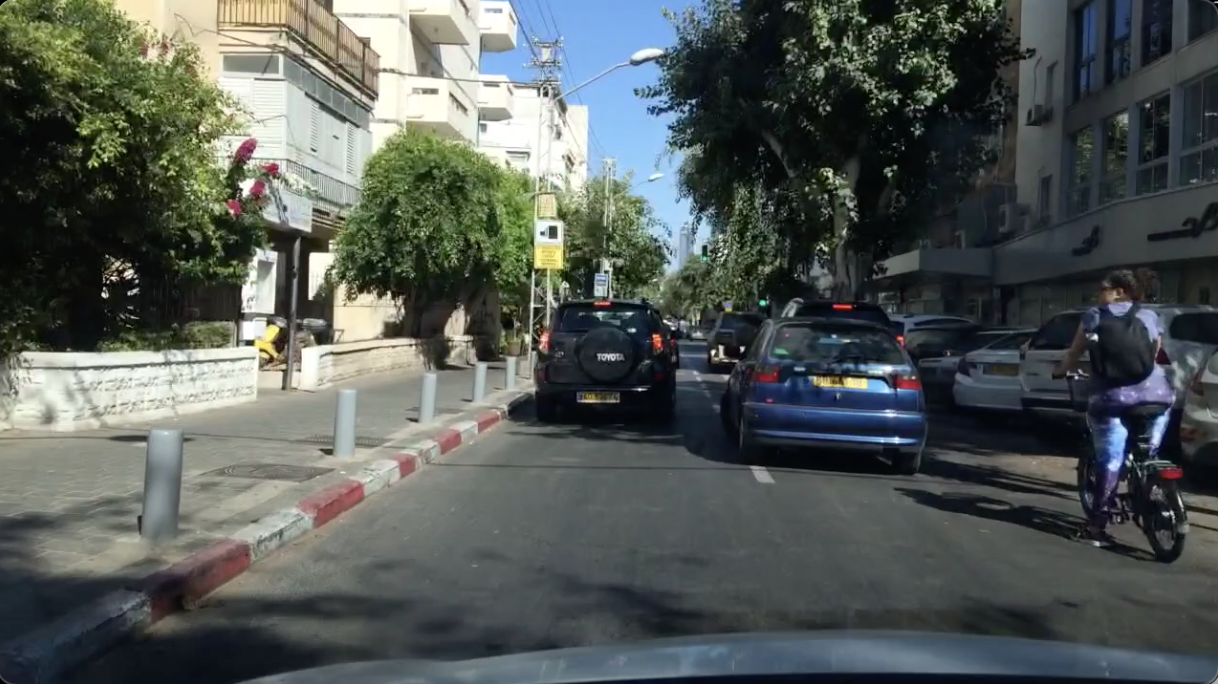

Videos when opened with QuickTime:

ffprobe provides:

> ffprobe data/bdd100k/bdd100k/videos/train/011f8481-b14725fa.mov
ffprobe version 4.3.1 Copyright (c) 2007-2020 the FFmpeg developers
  built with Apple clang version 12.0.0 (clang-1200.0.32.27)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.3.1_4 --enable-shared --enable-pthreads --enable-version3 --enable-avresample --cc=clang --host-cflags= --host-ldflags= --enable-ffplay --enable-gnutls --enable-gpl --enable-libaom --enable-libbluray --enable-libdav1d --enable-libmp3lame --enable-libopus --enable-librav1e --enable-librubberband --enable-libsnappy --enable-libsrt --enable-libtesseract --enable-libtheora --enable-libvidstab --enable-libvorbis --enable-libvpx --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libxvid --enable-lzma --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-librtmp --enable-libspeex --enable-libsoxr --enable-videotoolbox --disable-libjack --disable-indev=jack
  libavutil      56. 51.100 / 56. 51.100
  libavcodec     58. 91.100 / 58. 91.100
  libavformat    58. 45.100 / 58. 45.100
  libavdevice    58. 10.100 / 58. 10.100
  libavfilter     7. 85.100 /  7. 85.100
  libavresample   4.  0.  0 /  4.  0.  0
  libswscale      5.  7.100 /  5.  7.100
  libswresample   3.  7.100 /  3.  7.100
  libpostproc    55.  7.100 / 55.  7.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'data/bdd100k/bdd100k/videos/train/011f8481-b14725fa.mov':
  Metadata:
    major_brand     : qt
    minor_version   : 512
    compatible_brands: qt
    encoder         : Lavf57.71.100
  Duration: 00:00:40.09, start: 0.000000, bitrate: 3949 kb/s
    Stream #0:0(eng): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, smpte170m/bt709/bt709), 720x1280, 3946 kb/s, 30.06 fps, 60 tbr, 19200 tbn, 38400 tbc (default)
    Metadata:
      rotate          : 270
      handler_name    : VideoHandler
      encoder         : H.264
    Side data:
      displaymatrix: rotation of 90.00 degrees

> ffprobe data/bdd100k/bdd100k/videos/train/019c8305-3a3be0d6.mov
ffprobe version 4.3.1 Copyright (c) 2007-2020 the FFmpeg developers
  built with Apple clang version 12.0.0 (clang-1200.0.32.27)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.3.1_4 --enable-shared --enable-pthreads --enable-version3 --enable-avresample --cc=clang --host-cflags= --host-ldflags= --enable-ffplay --enable-gnutls --enable-gpl --enable-libaom --enable-libbluray --enable-libdav1d --enable-libmp3lame --enable-libopus --enable-librav1e --enable-librubberband --enable-libsnappy --enable-libsrt --enable-libtesseract --enable-libtheora --enable-libvidstab --enable-libvorbis --enable-libvpx --enable-libwebp --enable-libx264 --enable-libx265 --enable-libxml2 --enable-libxvid --enable-lzma --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --enable-librtmp --enable-libspeex --enable-libsoxr --enable-videotoolbox --disable-libjack --disable-indev=jack
  libavutil      56. 51.100 / 56. 51.100
  libavcodec     58. 91.100 / 58. 91.100
  libavformat    58. 45.100 / 58. 45.100
  libavdevice    58. 10.100 / 58. 10.100
  libavfilter     7. 85.100 /  7. 85.100
  libavresample   4.  0.  0 /  4.  0.  0
  libswscale      5.  7.100 /  5.  7.100
  libswresample   3.  7.100 /  3.  7.100
  libpostproc    55.  7.100 / 55.  7.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'data/bdd100k/bdd100k/videos/train/019c8305-3a3be0d6.mov':
  Metadata:
    major_brand     : qt
    minor_version   : 512
    compatible_brands: qt
    encoder         : Lavf57.71.100
  Duration: 00:00:40.16, start: 0.000000, bitrate: 4085 kb/s
    Stream #0:0(eng): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, smpte170m/bt709/bt709), 720x1280, 4082 kb/s, 30.03 fps, 29.97 tbr, 19200 tbn, 38400 tbc (default)
    Metadata:
      rotate          : 90
      handler_name    : VideoHandler
      encoder         : H.264
    Side data:
      displaymatrix: rotation of -90.00 degrees

Expected behavior

I expect tv.io.read_video to provide images similar to what would be displayed in QuickTime.

Environment

• PyTorch / torchvision Version (e.g., 1.0 / 0.4.0): 1.7.1 / 0.8.2
• OS (e.g., Linux): macOS Big Sur
• How you installed PyTorch / torchvision (conda, pip, source): Conda
• Build command you used (if compiling from source): N/A
• Python version: 3.8.5
• CUDA/cuDNN version: N/A
• GPU models and configuration: N/A
• Any other relevant information:

Best regards,
Joakim

cc @bjuncek
