Change appearance of branch element
Nobody has claimed this yet.
- Dominant language
- JavaScript
- Stars
- 22
- Forks
- 9
- PR merge metrics
- No merged PRs in 30d
Description
I wondered why in diagrams created with struktolab the diagonal lines in the branch element do not meet at the bottom of the box but somewhere in the middle instead. I have not seen this except with struktolab. See example from Wikipedia below for comparison.

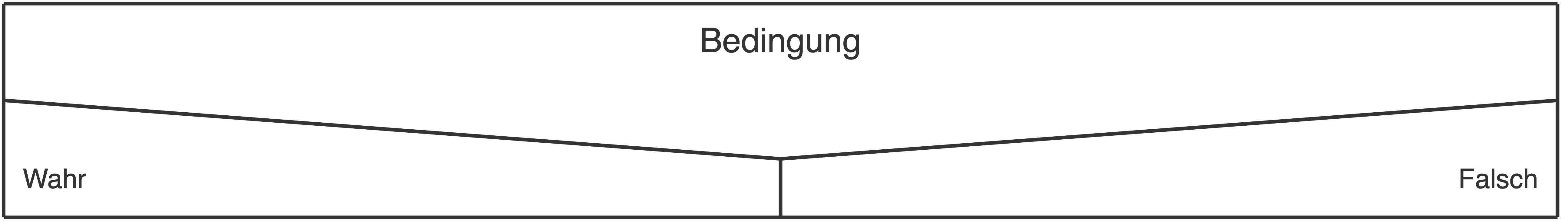

struktolab:
Wikipedia:
So my question is: Would it be possible to change the appearance of the branch element in struktolab or at least add an option for users who wish the appearance to be like the one from the Wikipedia example?
