[BUG] Optional dependencies not exluded when sourcing from alternate registry

Is there an existing issue for this?

• I have searched the existing issues

This issue exists in the latest npm version

• I am using the latest npm

Current Behavior

optionalPackages sourced from npm.pkg.github.com that have an unmatching os or cpu package.json field relative to the running machine install to node_modules.

Expected Behavior

Optional packages should not be saved when filters exclude them. Behavior should be consistent whether a package if sourced from npm, npm.pkg.github.com, or git+https.

Steps To Reproduce

When using this package.json:

{
  "name": "base",
  "version": "1.0.0",
  "optionalDependencies": {
    "from-github": "git+https://github.com/obsius/from-github",
    "@obsius/from-pkg": "1.0.0"
  }
}

Sourcing these two packages:

(1) From Github

{
  "name": "from-github",
  "version": "1.0.0",
  "os": [
    "linux"
  ]
}

(2) From custom registry (npm.pkg.github.com):

{
  "name": "@obsius/from-pkg",
  "version": "1.0.0",
  "publishConfig": {
    "@obsius:registry": "https://npm.pkg.github.com"
  },
  "os": [
    "linux"
  ]
}

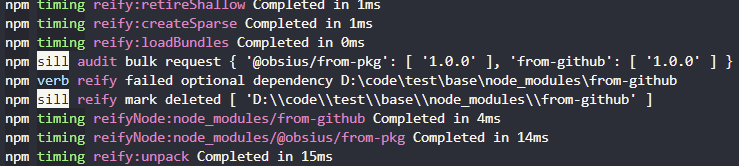

The following output is observed running npm install --ddd:

Even though the two packages are identical, only the git+https sourced one is excluded from install. I'd expect both packages to be excluded in this situation.

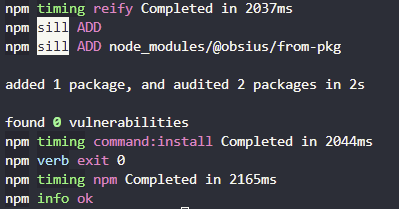

When running on NPM < 7 (6.14.17), the following output is observed:

In this older version of NPM, the expected behavior is observed, and neither package in installed.

Environment

• npm: 8.19.2
• Node.js: 16.18.0
• OS Name: Windows 11
• System Model Name: PC

Start with the provided package.json reproduction and run npm install --ddd on a machine whose os or cpu does not match the optional packages. Compare filtering for the npm.pkg.github.com, git+https, and npm sources. Done means all excluded optional packages are consistently absent from node_modules, including those fetched from an alternate registry.
