nightscout / nightscout/AndroidAPS

Statistics UI refinement

Open
#2,091 6 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

enhancement
Dominant language
Kotlin
Stars
1.2k
Forks
6.4k
Avg merge
2d 7h
Merged PRs (30d)
19

Description

We have a much better Statistics page now, as before.


Here are some ideas for a further refinement:

Motivation
The columns Bolus, Basal and Basal% make no sense with SMB, and limited sense with AMA.
While seeing TDD, Carbs and TIR values in the same line provide an informative overview, if profile change/tuning is needed.

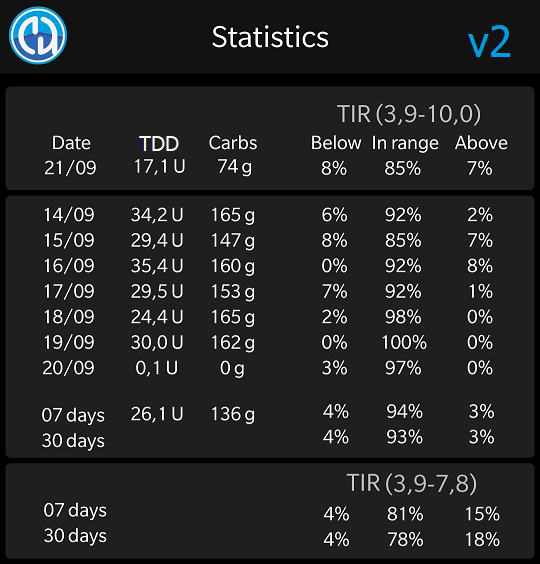

Changes (v2)

  • Delete columns: Bolus, Basal, Basal%
  • Rename column Sum to TDD
  • Move column carbs to the left
  • Move TIR(3,9-10,0) to the right beside TDD and Carbs
  • Move title TIR(3,9-10,0) above 3 right columns
  • Delete titles: average, today, TDD, etc.
  • Rename Title Average (3,9-7,8) to TIR (3,9-7,8)
  • Move 30 days under 07 days
  • Separate card for today on top
  • Separate card for TIR (3,9-7,8) on the bottom
    update 2023-02-07 (not in the picture):
  • an additional column with the mean SGV would indicate sensitivity changes
  • if today is on top, the last 7 days should decrease (newest on top)

Notice the space freed up with dumping Bolus, Basal, Basal% and uniting the spreadsheets, too.


Changes (v3)

  • Move units to column titles - to let the eye focus on the values


Optional

  • Coloring of values of individual days:
    red = high TDD, Carb, Below and Above and low TIR
    white = for near average values
    green = for the rest

If Bolus, Basal, Basal% seems to be very important, I'd suggest to leave only Basal%, and this could even fit in an own column in the 3rd image.
