Instance counting mismatch

Open
#638 1 comment 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

type:bug?
Dominant language
C#
Stars
51
Forks
29
PR merge metrics
No merged PRs in 30d

Description

The instance number should be based on the number of elements with a given identifier to better mimic what FEM-Design does.

Problem

Create a model with 3 bars. 2 with identifier A and 1 with identifier B. Currently their names will be the following in our API:

A.1
A.2
B.3

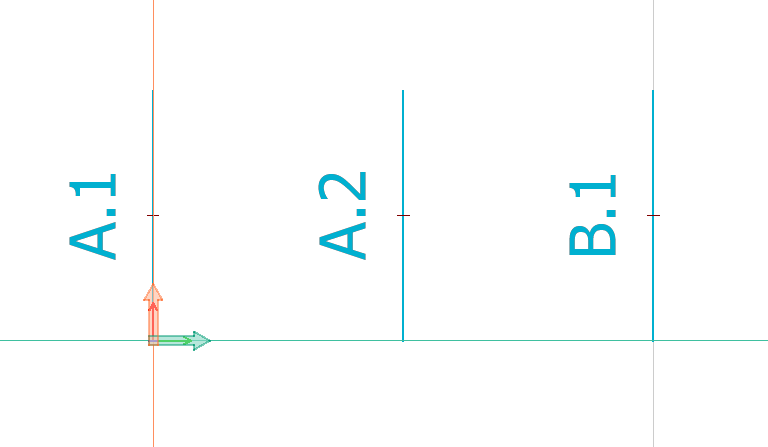

But when opening the model in FEM-Design they will be renamed to

A.1
A.2
B.1 <-- 1 instead
Solution

Instead of having a private static int _barInstance field we could change it to a dictionary private static Dictionary<string, int> _barInstances.
This dictionary could map the number of instances created of each name. Like this:

{
  "A": 2,
  "B": 1
}

Testfile in testfolder 638
