Is that possible to setup wsl2 default nic (eth0) to "Enable spoofing of MAC addresses"

Open
#7,192 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

feature
Dominant language
C++
Stars
33.7k
Forks
1.8k
Avg merge
3d 17h
Merged PRs (30d)
116

Description

Is your feature request related to a problem? Please describe.

Make the linux network namespace can be used the Linux Bridge to access the external network (Not with the Nat, But with the Bridge mode).

My test environment:
  • WSL2 Default Virtual Switch
    1. Name: WSL
    2. Set up the extra IP address: New-NetIPAddress -IPAddress "192.168.15.1" -PrefixLength 24 -InterfaceAlias "vEthernet (WSL)"
  • WSL2 instance:
    1. Linux Distro: Ubuntu-20.04
Ubuntu-20.04 network configuration:
#1. Setup the bridge
ip link add br0 type bridge
ip link set br0 up

#2. Add the `eth0` nic to the `br0`
ip addr flush eth0
ip link set eth0 master br0

#3. Define the IP address for the `br0`
ip addr add 192.168.15.11/24 dev br0

#4. Define the network namespace
ip netns add ns1

#5. Define the type of `veth` peer virtual interfaces
ip link add veth0 type veth peer name veth1
ip link set veth0 up

#6. Add the `veth1` to the `ns1` network namespace,and config the IP address to the `veth1`
ip link set veth1 netns ns1
ip netns exec ns1 ip addr 192.168.15.21/24 dev veth1
ip netns exec ns1 ip link set veth1 up
Network ping test:
#1. `br0` ping the virtual switch `WSL`, it was successful.
ping -c 1 192.168.15.1
> PING 192.168.15.1 (192.168.15.1) 56(84) bytes of data.
> 64 bytes from 192.168.15.1: icmp_seq=1 ttl=128 time=0.283 ms

#2. In th `ns1` namespace, use `veth1` ping the virtual switch `WSL`, it was failed.
ip netns exec ns1 ping -c 192.168.15.1
> PING 192.168.15.1 (192.168.15.1) 56(84) bytes of data.

> --- 192.168.15.1 ping statistics ---
> 1 packets transmitted, 0 received, 100% packet loss, time 0ms

Describe the solution you'd like

I repeated the test in the Virtual Box and Hyper-V environment,it was successful.

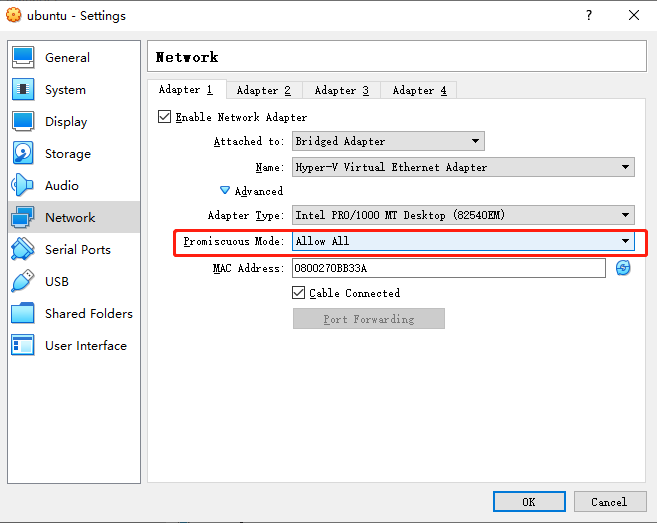

The Virtual Box should set the vm network as follows:

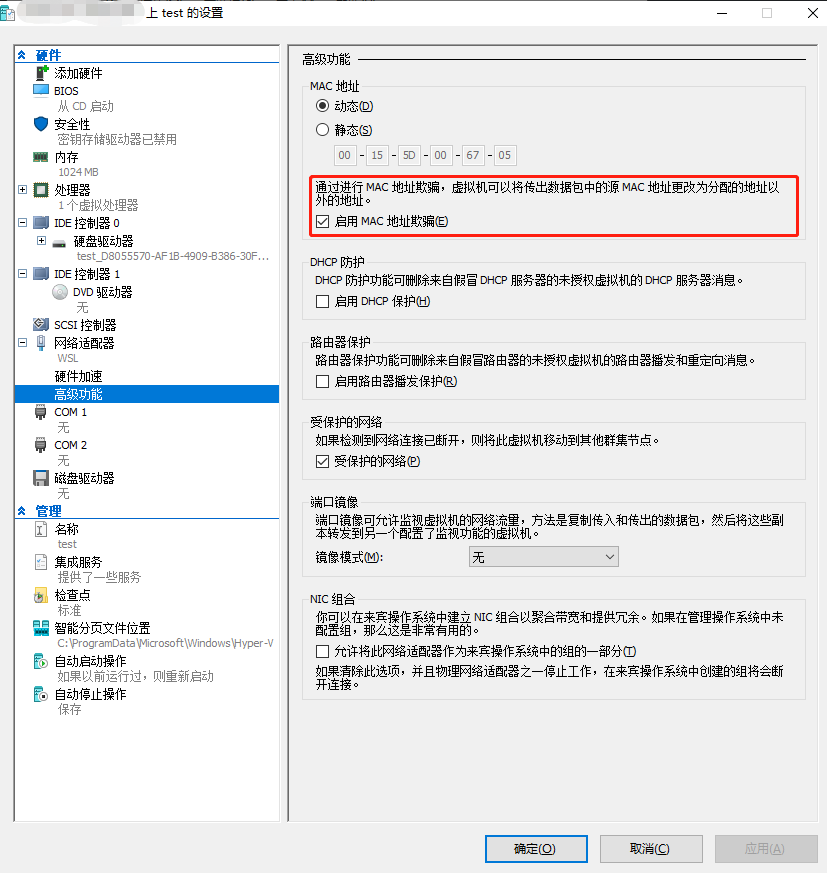

The Hyper-V should set the vm network as follows:


And the linux network namespace can be used the Linux Bridge to access the external network.

Describe alternatives you've considered
None.

Additional context
None.
