[Rendering] Action.ToggleVisibility SelectActions on columns, column sets, and containers not working in Teams desktop client
Open
Nobody has claimed this yet.
Area-Renderers
Bug
- Dominant language
- C#
- Stars
- 2k
- Forks
- 595
- Avg merge
- 1d 19h
- Merged PRs (30d)
- 1
Description
Target Platforms
Other
SDK Version
3.0.0
Application Name
Microsoft Teams
Problem Description
When using an Action.ToggleVisibility selectAction on a column, columnSet, or container, it won't work in Microsoft Teams in both the browser and the desktop client. The iOS and Android Teams apps work as expected. Performing the toggle using an actionSet also works.
I can't recall an exact date it started happening, but this is a fairly recent occurrence. I've tried rolling back to a previous SDK version, but it has not helped.
I am able to replicate this using the Expense report with labels template and data.
I believe the issue is that the UI is not re-rendering when performing the selectAction. If a different action is performed that does work as expected, then the UI reflects any un-rendered changes from the erroneous selectActions.
Screenshots
Base card

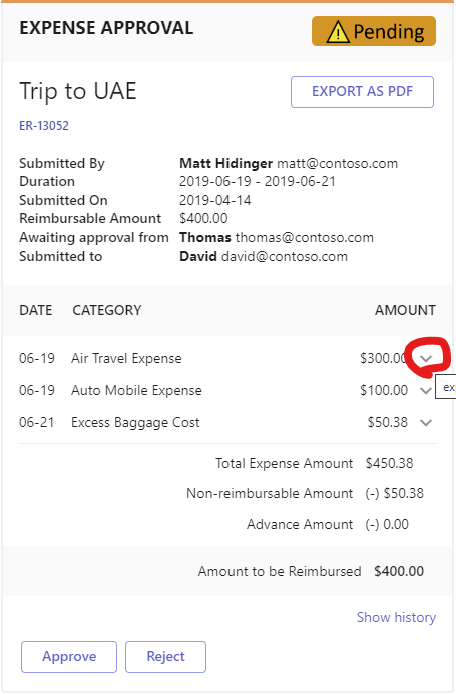

Clicked expand arrow next to Air Travel Expense (no change)
Clicked on Reject (note that the changes for clicking Reject are rendered, and the Air Travel Expense section is also rendered)
Card JSON
{
"type": "AdaptiveCard",
"body": [
{
"type": "Container",
"style": "emphasis",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"size": "large",
"weight": "bolder",
"text": "**EXPENSE APPROVAL**",
"style": "heading"
}
],
"width": "stretch"
},
{
"type": "Column",
"items": [
{
"type": "Image",
"url": "${status_url}",
"altText": "${status}",
"height": "30px"
}
],
"width": "auto"
}
]
}
],
"bleed": true
},
{
"type": "Container",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"size": "ExtraLarge",
"text": "${purpose}",
"wrap": true,
"style": "heading"
}
],
"width": "stretch"
},
{
"type": "Column",
"items": [
{
"type": "ActionSet",
"actions": [
{
"type": "Action.OpenUrl",
"title": "EXPORT AS PDF",
"url": "https://adaptivecards.io"
}
]
}
],
"width": "auto"
}
]
},
{
"type": "TextBlock",
"spacing": "small",
"size": "small",
"weight": "bolder",
"text": "[${code}](https://adaptivecards.io)"
},
{
"type": "FactSet",
"spacing": "large",
"facts": [
{
"title": "Submitted By",
"value": "**${created_by_name}** ${creater_email}"
},
{
"title": "Duration",
"value": "${formatTicks(min(select(expenses, x, int(x.created_by))), 'yyyy-MM-dd')} - ${formatTicks(max(select(expenses, x, int(x.created_by))), 'yyyy-MM-dd')}"
},
{
"title": "Submitted On",
"value": "${formatDateTime(submitted_date, 'yyyy-MM-dd')}"
},
{
"title": "Reimbursable Amount",
"value": "$${formatNumber(sum(select(expenses, x, if(x.is_reimbursable, x.total, 0))), 2)}"
},
{
"title": "Awaiting approval from",
"value": "**${approver}** ${approver_email}"
},
{
"title": "Submitted to",
"value": "**${other_submitter}** ${other_submitter_email}"
}
]
}
]
},
{
"type": "Container",
"spacing": "large",
"style": "emphasis",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"weight": "bolder",
"text": "DATE"
}
],
"width": "auto"
},
{
"type": "Column",
"spacing": "large",
"items": [
{
"type": "TextBlock",
"weight": "bolder",
"text": "CATEGORY"
}
],
"width": "stretch"
},
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"weight": "bolder",
"text": "AMOUNT"
}
],
"width": "auto"
}
]
}
],
"bleed": true
},
{
"$data": "${expenses}",
"type": "Container",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"text": "${formatDateTime(created_time, 'MM-dd')}",
"wrap": true
}
],
"width": "auto"
},
{
"type": "Column",
"spacing": "medium",
"items": [
{
"type": "TextBlock",
"text": "${description}",
"wrap": true
}
],
"width": "stretch"
},
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"text": "$${formatNumber(total, 2)}",
"wrap": true
}
],
"width": "auto"
},
{
"type": "Column",
"spacing": "small",
"selectAction": {
"type": "Action.ToggleVisibility",
"title": "expand",
"targetElements": [
"cardContent${$index}",
"chevronDown${$index}",
"chevronUp${$index}"
]
},
"verticalContentAlignment": "center",
"items": [
{
"type": "Image",
"id": "chevronDown${$index}",
"url": "https://adaptivecards.io/content/down.png",
"width": "20px",
"altText": "Details collapsed"
},
{
"type": "Image",
"id": "chevronUp${$index}",
"url": "https://adaptivecards.io/content/up.png",
"width": "20px",
"altText": "Details expanded",
"isVisible": false
}
],
"width": "auto"
}
]
},
{
"type": "Container",
"id": "cardContent${$index}",
"isVisible": false,
"items": [
{
"type": "Container",
"items": [
{
"$data": "${custom_fields}",
"type": "TextBlock",
"text": "* ${value}",
"isSubtle": true,
"wrap": true
},
{
"type": "Container",
"items": [
{
"type": "Input.Text",
"id": "comment${$index}",
"label": "Add your comment here"
}
]
}
]
},
{
"type": "Container",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"items": [
{
"type": "ActionSet",
"actions": [
{
"type": "Action.Submit",
"title": "Send",
"data": {
"id": "_qkQW8dJlUeLVi7ZMEzYVw",
"action": "comment",
"lineItem": 1
}
}
]
}
],
"width": "auto"
}
]
}
]
}
]
}
]
},
{
"type": "ColumnSet",
"spacing": "large",
"separator": true,
"columns": [
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"horizontalAlignment": "right",
"text": "Total Expense Amount \t",
"wrap": true
},
{
"type": "TextBlock",
"horizontalAlignment": "right",
"text": "Non-reimbursable Amount",
"wrap": true
},
{
"type": "TextBlock",
"horizontalAlignment": "right",
"text": "Advance Amount",
"wrap": true
}
],
"width": "stretch"
},
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"text": "$${formatNumber(sum(select(expenses, x, x.total)), 2)}"
},
{
"type": "TextBlock",
"text": "(-) $${formatNumber(sum(select(expenses, x, if(x.is_reimbursable, 0, x.total))), 2)} \t"
},
{
"type": "TextBlock",
"text": "(-) 0.00 \t"
}
],
"width": "auto"
},
{
"type": "Column",
"width": "auto"
}
]
},
{
"type": "Container",
"style": "emphasis",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"horizontalAlignment": "right",
"text": "Amount to be Reimbursed",
"wrap": true
}
],
"width": "stretch"
},
{
"type": "Column",
"items": [
{
"type": "TextBlock",
"weight": "bolder",
"text": "$${formatNumber(sum(select(expenses, x, if(x.is_reimbursable, x.total, 0))), 2)}"
}
],
"width": "auto"
},
{
"type": "Column",
"width": "auto"
}
]
}
],
"bleed": true
},
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"selectAction": {
"type": "Action.ToggleVisibility",
"targetElements": [
"cardContent4",
"showHistory",
"hideHistory"
]
},
"verticalContentAlignment": "Center",
"items": [
{
"type": "TextBlock",
"id": "showHistory",
"horizontalAlignment": "right",
"color": "accent",
"text": "Show history",
"wrap": true
},
{
"type": "TextBlock",
"id": "hideHistory",
"horizontalAlignment": "right",
"color": "accent",
"text": "Hide history",
"wrap": true,
"isVisible": false
}
],
"width": 1
}
]
},
{
"type": "Container",
"id": "cardContent4",
"isVisible": false,
"items": [
{
"type": "Container",
"items": [
{
"type": "TextBlock",
"text": "* Expense submitted by **${created_by_name}** on {{DATE(${formatDateTime(created_date, 'yyyy-MM-ddTHH:mm:ssZ')}, SHORT)}}",
"isSubtle": true,
"wrap": true
},
{
"type": "TextBlock",
"text": "* Expense ${expenses[0].status} by **${expenses[0].approver}** on {{DATE(${formatDateTime(approval_date, 'yyyy-MM-ddTHH:mm:ssZ')}, SHORT)}}",
"isSubtle": true,
"wrap": true
}
]
}
]
},
{
"type": "Container",
"items": [
{
"type": "ActionSet",
"actions": [
{
"type": "Action.Submit",
"title": "Approve",
"style": "positive",
"data": {
"id": "_qkQW8dJlUeLVi7ZMEzYVw",
"action": "approve"
}
},
{
"type": "Action.ShowCard",
"title": "Reject",
"style": "destructive",
"card": {
"type": "AdaptiveCard",
"body": [
{
"type": "Input.Text",
"id": "RejectCommentID",
"label": "Please specify an appropriate reason for rejection",
"isMultiline": true,
"isRequired": true,
"errorMessage": "A reason for rejection is necessary"
}
],
"actions": [
{
"type": "Action.Submit",
"title": "Send",
"data": {
"id": "_qkQW8dJlUeLVi7ZMEzYVw",
"action": "reject"
}
}
],
"$schema": "http://adaptivecards.io/schemas/adaptive-card.json"
}
}
]
}
]
}
],
"$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
"version": "1.2",
"fallbackText": "This card requires Adaptive Cards v1.2 support to be rendered properly."
}
Sample Code Language
No response
Sample Code
No response
