Description

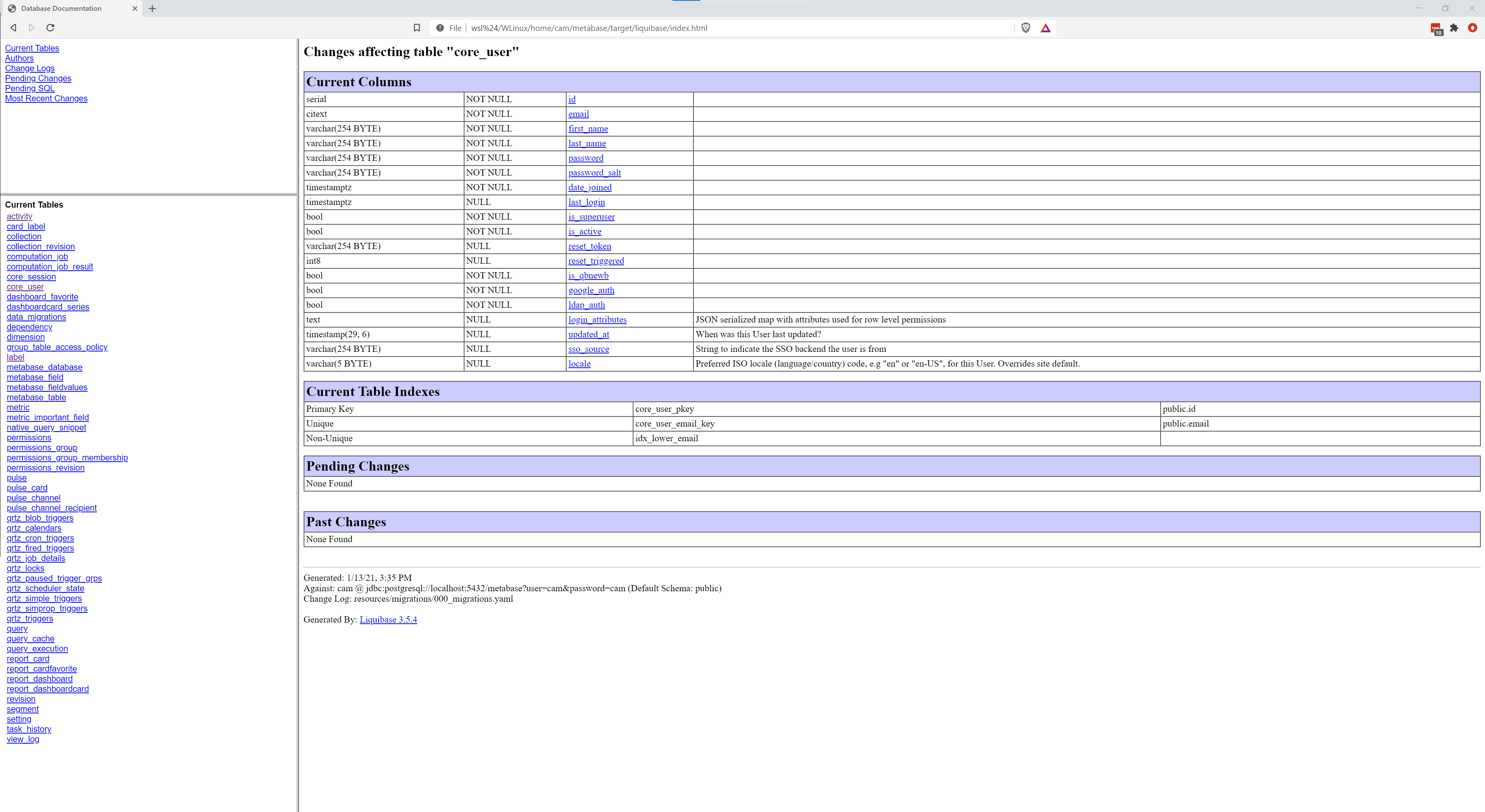

Liquibase can generate dox about everything in the application DB, e.g.

Command to do this from CLI (needed to replace `:dependencies: because Liquibase was refusing to use Log4j):
```
lein update-in : assoc :dependencies '^:replace [[org.clojure/clojure "1.10.1"] [org.liquibase/liquibase-core "3.5.5"] [org.postgresql/postgresql "42.2.8"]]' -- \
update-in : dissoc :aliases -- \
with-profile -run \
run -m liquibase.integration.commandline.Main \
--changeLogFile=resources/migrations/000_migrations.yaml \
--url='jdbc:postgresql://localhost:5432/metabase?user=cam&password=cam' \
dbDoc target/liquibase
```
We could definitely invoke the equivalent code directly from Clojure. I think we should add routes under `/_debug/schema` and then lazily trigger the Liquibase dox generation as needed when you visit those routes. Should be easy enough.
This would make it easy for us to poke at stuff and maybe to debug people's latest weird MySQL issues.
I think we should look at this more generally and create a `_dev` portal with other statically generated pages that will make Metabase dev a little easier.
Other things we can consider exposing in a similar way:
* The auto-generated API documentation could be exposed this way
* We could expose some utilities that make it easier to inspect the application state/app DB (potentially risky so I say we only do these for local development via `lein`)
* If people are using H2, we could expose the [H2 web console](http://h2database.com/html/quickstart.html) this way as well
* we could expose something like https://github.com/camsaul/lein-instant-cheatsheet as well so you can look up fn dox as you're working on the code.
