[TopAppBar] elevation (on scroll) of top app bar

Open
#2,664 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

bug Widget: TopAppBar
Dominant language
Java
Stars
17.4k
Forks
3.2k
PR merge metrics
No merged PRs in 30d

Description

**Description:**
https://m3.material.io/components/top-app-bar/specs:
The elevation (on scroll) of top app bar is **3dp**.
```
Element | Design attribute | Role | Token
1. Container | Color | Surface | md.sys.color.surface
| Surface tint color | Surface tint | md.sys.color.surface-tint
| Elevation | Level 0 | md.sys.elevation.level0
| Elevation (on scroll) | Level 2 | md.sys.elevation.level2
```
https://github.com/material-components/material-components-android/blob/master/docs/components/TopAppBar.md:
The elevation of AppBarLayout is 0dp to **4dp**.
The default value of elevation of MaterialToolbar is **not 4dp but 0dp**.
```
Element | Attribute | Related method(s) | Default value
MaterialToolbar elevation | android:elevation | setElevation |
| | getElevation | 4dp
AppBarLayout elevation | android:stateListAnimator | setStateListAnimator |
| | getStateListAnimator | 0dp to 4dp (see all states)
```
Catalog app:
The elevation (on scroll) of top app bar is **4dp**.

Is it a document bug, a catalog bug, or an AppBarLayout bug?

**Source code:**
https://github.com/material-components/material-components-android/blob/master/catalog/java/io/material/catalog/topappbar/res/layout/cat_topappbar_fragment.xml#L25-L38
https://github.com/material-components/material-components-android/blob/master/catalog/java/io/material/catalog/topappbar/res/layout/cat_topappbar_collapsing_medium_fragment.xml#L24-L46
...
https://github.com/material-components/material-components-android/blob/master/lib/java/com/google/android/material/appbar/AppBarLayout.java#L305-L306
https://github.com/material-components/material-components-android/blob/master/lib/java/com/google/android/material/appbar/res/values/dimens.xml#L19
https://github.com/material-components/material-components-android/commit/c587dd12597ee52086c3f637f03d6913e56e03cc

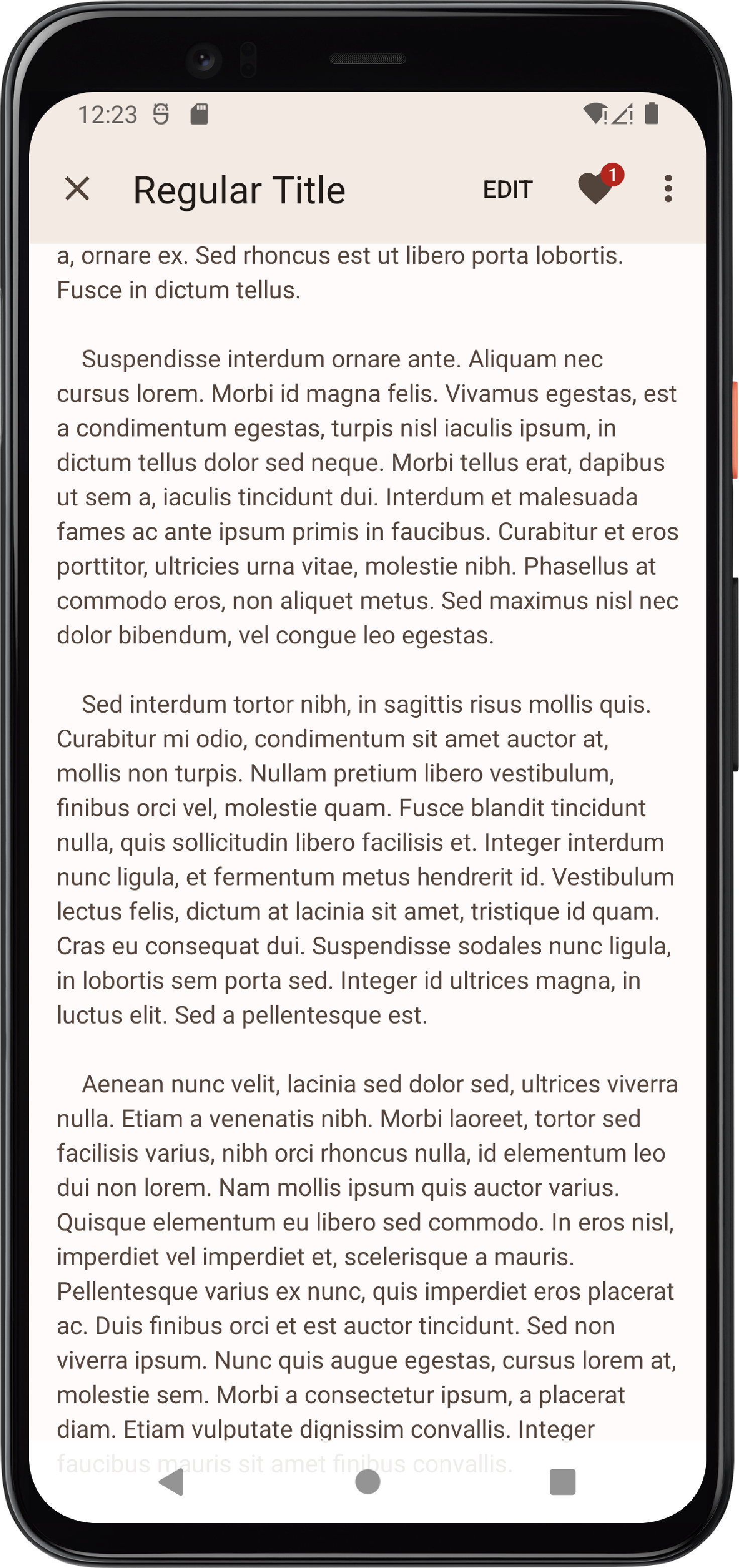

(TopAppBar on Scroll)
![Screenshot_20220422_212333](https://user-images.githubusercontent.com/71050561/165013121-397e4b25-b09a-429a-b9ba-7dff09056752.png)
(TopAppBar)
![Screenshot_20220422_212308](https://user-images.githubusercontent.com/71050561/165013146-c52999b2-b1f6-4354-983d-f6c6e41105b7.png)

**Android API version:** 32

**Material Library version:** 1.5.0, 1.6.0-rc01, 1.7.0-alpha01

**Device:** Emulator 31.2.10

P.S. design_appbar_elevation appears:
https://github.com/material-components/material-components-android/blob/master/lib/java/com/google/android/material/appbar/CollapsingToolbarLayout.java#L793
https://github.com/material-components/material-components-android/blob/master/lib/java/com/google/android/material/appbar/res/animator-v21/design_appbar_state_list_animator.xml#L34
https://github.com/material-components/material-components-android/blob/master/lib/java/com/google/android/material/appbar/res/values/styles.xml#L61
https://github.com/material-components/material-components-android/blob/master/lib/java/com/google/android/material/appbar/res/values/styles.xml#L113
