Description

Hi there,

I have a tileset built from geojson containing the coastline of the world. I've created this tileset with the following parameters, which works great:
```
tippecanoe -P -z11 --drop-smallest-as-needed -o output.mbtiles ...
```

What I would like to do is create a second tileset, but one that:
1- only has zoom 6
2- has the same level of detail at zoom 6, that the original tileset has at zoom 10

This second set (unlike the first) is not intended to be rendered. It is intended to be queried programatically, where the client needs to get the features at the resolution akin to zoom10 of the first dataset, but we do not want the client to make hundreds of requests (at zoom10). Instead we want the client to make a single request to one tile at zoom 6 to get all the features...

To produce this, I've tried the following:
```
tippecanoe \
--read-parallel \
--minimum-zoom=6 \
--maximum-zoom=6 \
--no-line-simplification \
--no-tiny-polygon-reduction \
--no-feature-limit \
--no-tile-size-limit \
--full-detail=16 \
--output=output.mbtiles ...
```

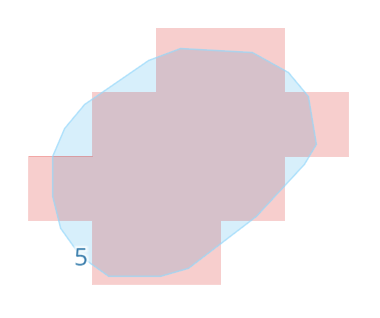

I appreciate the tiles will be massive in this tileset, but that's ok. However, the features do not come out at the same detail as the original tileset at zoom 10. Here is an example screenshot (blue is the zoom10 of the original tileset, and red is the same feature at zoom6 in the second tileset).

screen shot 2018-07-26 at 13 56 05

I might end up doing this trick at zoom 8 or something where the tile mb size doesn't get too crazy, but this is a theoretical question more than anything else. How would I produce a tileset that has it's zoom 6 at the same resolution as the original zoom 10?

Is that possible with tippecanoe?
