Tooltip for vector tile data-join should only show matching property, not all props from vector tile

Open
#116 5 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

bug
Dominant language
Python
Stars
681
Forks
137
PR merge metrics
No merged PRs in 30d

Description

Some of the examples [here](https://nbviewer.jupyter.org/github/mapbox/mapboxgl-jupyter/blob/master/examples/notebooks/choropleth-viz-example.ipynb) have tooltips with multiple items in them. However when I create my visualization I only get the "vector_join_property" and "color_property" keys and values in the tooltip but not the others. In this case "year":2014 is missing. Any idea why?

```
data = [{'pfafid_30spfaf06':233036, "year":2014,"value":42}]

viz = mapboxgl.viz.ChoroplethViz(data = data,
vector_url='mapbox://rutgerhofste.hybas06_v04_V04',
vector_layer_name='hybas06_v04', # Warning should match name on mapbox.
vector_join_property='pfaf_id',
data_join_property= "pfafid_30spfaf06",
color_property="value",
color_function_type='match',
color_stops= color_stops_category,
line_color = 'rgba(0,0,0,0.05)',
line_width = 0.5,
opacity=0.7,
center=(5, 52),
zoom=4,
below_layer='waterway-label'
)

```

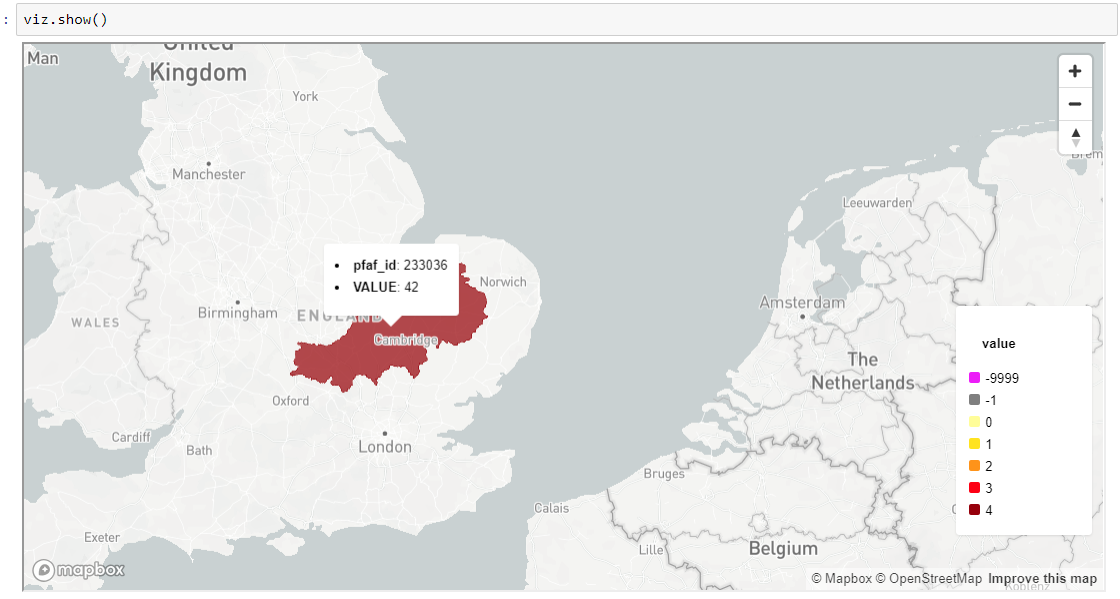

![capture](https://user-images.githubusercontent.com/10450589/42690818-060c63e6-86a6-11e8-87a3-082212796446.PNG)

and
![capture2](https://user-images.githubusercontent.com/10450589/42690906-609f55f2-86a6-11e8-851f-d7df8a433347.PNG)
