[Question] Is it possible to draw buffer around layer?

Open
#1,838 1 comment 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

auto-triaged bug :beetle: question
Dominant language
Swift
Stars
601
Forks
196
PR merge metrics
No merged PRs in 30d

Description

Hello.
I am using Xamarin wrapper for your library, but my question is related to your SDK.

In the code below you can see that I am trying to add one more style for the layer, which should show a buffer around my polygon with a gap 50 (I hope it's meters).
But when I zoom in/out the gap changes.

Maybe you can propose another way to draw a dashed line/buffer around my polygon?

var lineLayer = new MGLLineStyleLayer(layerId + LAYER_DEVIATION_THRESHOLD_SUFFIX, source)
{
LineDashPattern = NSExpression.FromFormat(@"{2, 1.5}"),
LineWidth = NSExpression.FromConstant(FromObject(2.0f)),
LineColor = NSExpression.FromConstant(layerFillColor),
LineGapWidth = NSExpression.FromConstant(FromObject(50.0f))
};

Also how to do only the Outer gap line?

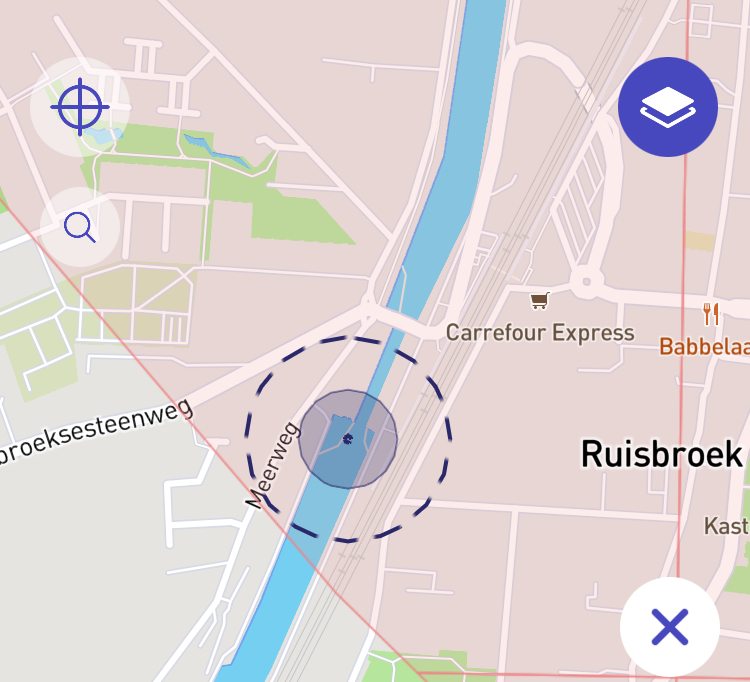

![IMG_0013](https://user-images.githubusercontent.com/110451358/211299044-81bb3768-8722-43a2-8ba6-59f573151e24.jpg)

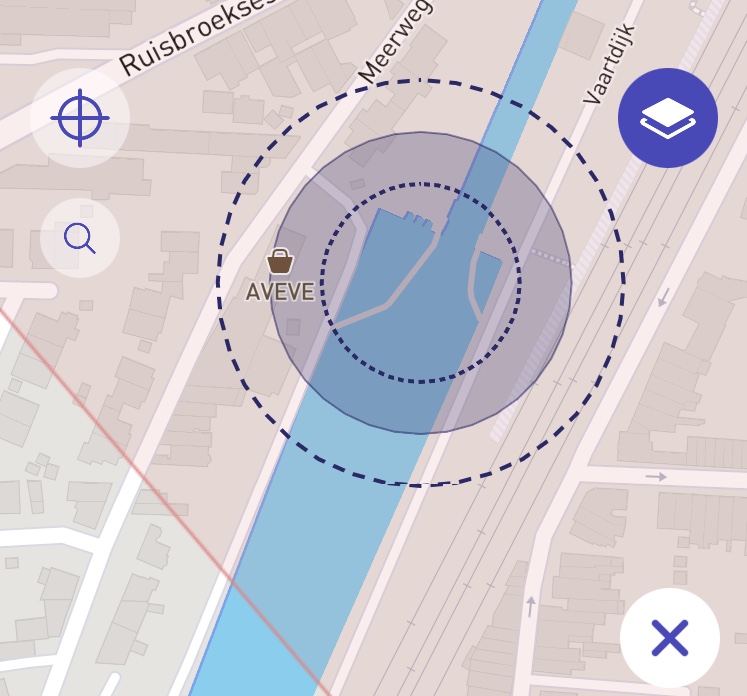

![IMG_0012](https://user-images.githubusercontent.com/110451358/211299053-b293c008-c377-4964-b3f9-106e2badb718.jpg)

Best regards
Oleksandr
