Polygon border with line-offset is not closed
Open
Nobody has claimed this yet.
bug :lady_beetle:
needs investigation :mag:
- Dominant language
- TypeScript
- Stars
- 12.4k
- Forks
- 2.4k
- PR merge metrics
- No merged PRs in 30d
Description
mapbox-gl-js version: 0.54.0-beta.2
Steps to Trigger Behavior
Geometry example:
{"type":"FeatureCollection","features":[{"type":"Feature","properties":{},"geometry":{"type":"Polygon","coordinates":[[[30.837589970270813,59.64936661137284],[30.83686460283053,59.6484792324394],[30.838086274316026,59.64888916584533],[30.837589970270813,59.64936661137284]]]}}]}

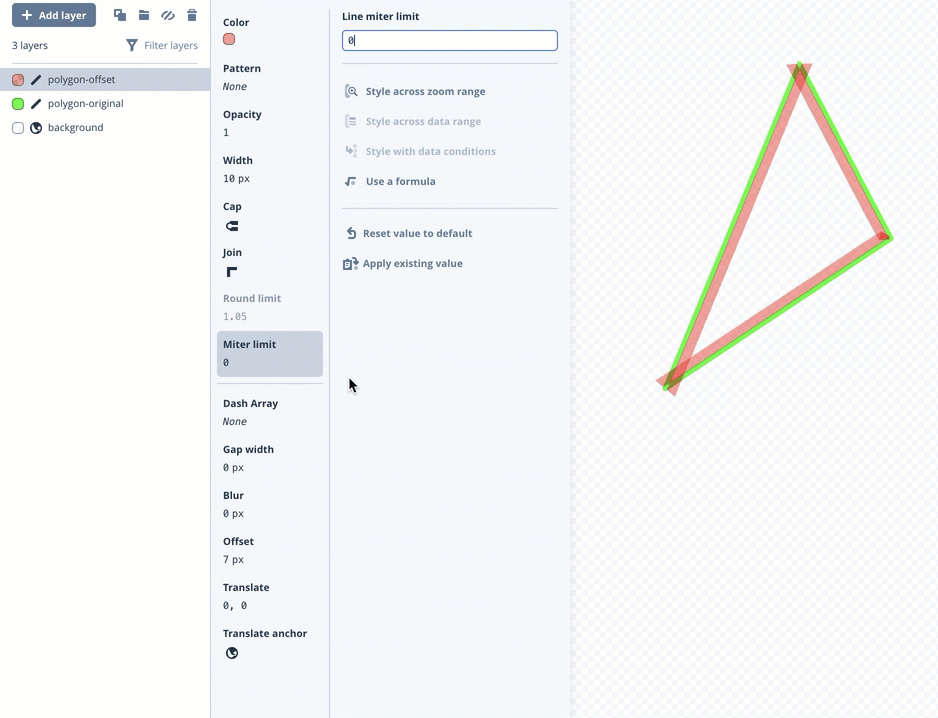

Set line-offset to > 1
Expected Behavior
Polygon border with offset is closed.
Actual Behavior
Polygon border with offset is not closed.
Contributor guide
First steps
- Read the whole issue, then the project's contributing guide.
- Comment on the issue to say you are picking it up — it saves two people doing the same work.
- Fork the repository and make your change on a branch.
- Open a pull request that references the issue number.
Research direction
Start by reproducing the supplied Polygon geometry in mapbox-gl-js 0.54.0-beta.2 with line-offset set above 1, and inspect the rendering path responsible for polygon borders. Done means the offset border is visibly closed for this example and equivalent polygon cases.
