Add ability to set text in small caps?

Open
#5,547 7 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

feature :green_apple:
Dominant language
TypeScript
Stars
12.4k
Forks
2.4k
PR merge metrics
No merged PRs in 30d

Description

All uppercase letters is a common styling technique for text in latin, cyrillic, and greek scripts. We use `text-transform: uppercase` to set this styling. This is not ideal for multilingual maps, because text using scripts that distinguish upper and lowercase letters (latin, cyrillic, greek) appear visually larger than text in other scripts.

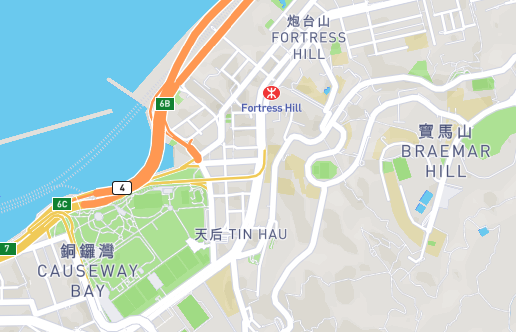

- Mixed-script labels are not visually balanced between the two scripts:

![screen shot 2017-10-27 at 12 43 40 pm](https://user-images.githubusercontent.com/5607844/32124441-c4f83196-bb35-11e7-9ab8-ad6b6cc09f54.png)
*E.g. these "Suburb" labels in Hong Kong, where the English more prominent*

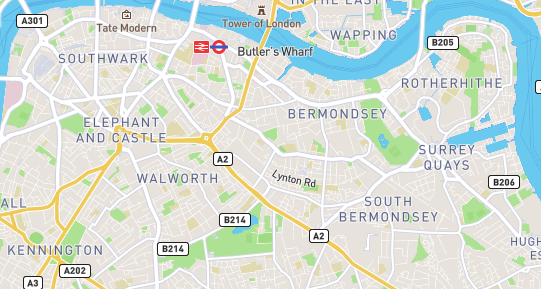

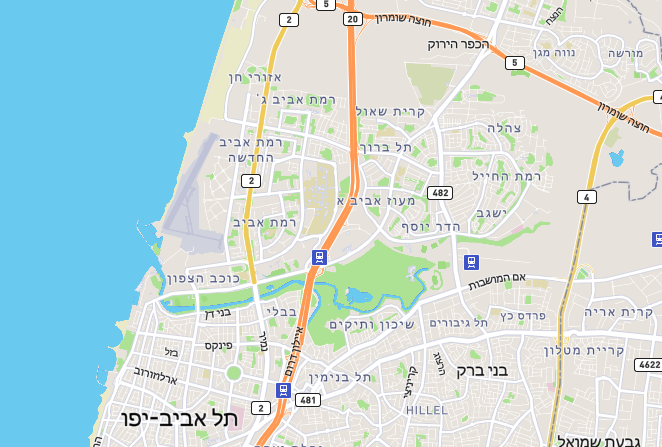

- Labels in different regions are visually different sizes, which is problematic for maintaining a uniform label hierarchy across different regions:

![screen shot 2017-10-27 at 12 51 34 pm](https://user-images.githubusercontent.com/5607844/32124466-de758f38-bb35-11e7-97a9-b51fb97d7904.png)
![screen shot 2017-10-27 at 12 47 35 pm](https://user-images.githubusercontent.com/5607844/32124465-de6a66ee-bb35-11e7-85e0-11ade9ac3d2c.png)
*E.g. these "Suburb" labels in London vs Tel Aviv*

I think it would be interesting to explore implementing some form of display for "small capitals" (glyphs that mimic uppercase letters, but sized appropriately to be incorporated within upper-and-lowercase text). Although the main use case for small caps is mostly irrelevant here (especially since we can't currently style text differently within a single label), perhaps it's worth implementing for the use case outlined above?

Here's an inital braindump. Would be curious to hear others' thoughts on whether this seems worthwhile, and if so, how we might want to proceed.

### True small caps

True small caps are glyphs specifically designed for this purpose, with appropriate stroke weights and proportions.

Typographically, displaying these glyphs would be ideal, but:

- These don't exist for many font families, especially san serifs (which are more common on web maps).
- I think we might need to use an [OpenType text shaping engine (e.g. Harfbuzz)](https://github.com/mapbox/mapbox-gl-native/issues/7528) to be able to make use of these glyphs (but perhaps we don't? @chrisloer? )

### "Fake" small caps

"Fake" small caps are just uppercase letters with a reduced text size (usually such that the new cap height is slightly larger than the old x-height).

I think most renderers that support "small caps" fall back to this approach if the specified font does not contain true small cap glyphs.

Usually fake small caps are a big typographic no-no, largely because just shrinking the uppercase letters means that their strokes become too thin, relative to the other characters displayed in that font at that size. However:

- Since for the most part our usage would only ever pair small cap letters in the same label with characters in scripts other than latin, cyrillic, or greek, perhaps the discrepency in text weight won't be so noticeable (especially in the cases where we're not even using the same font for different scripts).
- There might be ways to programmatically increase the apparent text weight of fake small caps (although it seems like getting consistently good results would be difficult).

This would mean that for some labels, we'd be technically rendering part of the text in one text size and the other part in another text size (for some multi-script labels). Is that possible?

### Spec

The CSS equivalent is `font-variant-caps: all-small-caps` or the shorthand [`font-variant: all-small-caps`](https://developer.mozilla.org/en-US/docs/Web/CSS/font-variant), which use the OpenType [feature tags](https://www.microsoft.com/typography/otspec/features_pt.htm) for supporting small caps: `smcp` (small capitals) `c2sc` (capital to small caps). Perhaps we could support a similar property?

### Misc

Not directly related, but here's another ticket regarding better language support for uppercase styling: [text-tranform is not locale-aware](https://github.com/mapbox/mapbox-gl-js/issues/3999)

/cc @ChrisLoer @ansis @kkaefer @jfirebaugh @1ec5
