Globe view downloading more tiles than necessary
Nobody has claimed this yet.
- Dominant language
- TypeScript
- Stars
- 12.4k
- Forks
- 2.4k
- PR merge metrics
- No merged PRs in 30d
Description
As pointed out by @ansis in https://github.com/mapbox/mapbox-gl-js/pull/11917#issuecomment-1141160639
### Steps to Trigger Behavior

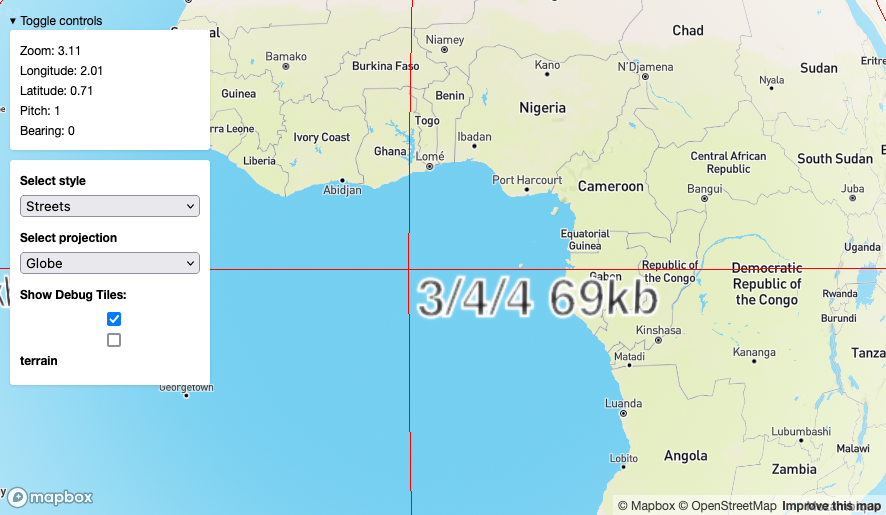

1. Go to http://localhost:9966/debug/projections.html#3.11/2.01/0.71
2. Switch projection to globe and enable debug tiles
3. Shrink window so that only four tiles are visible

4. In console:
```js
Object.keys(map.style._sourceCaches['other:composite']._tiles).length
8
```
Logging the tiles, we can see that tiles columns 2 and 5 are included, which are to the right and left of the visible screen:
```js
[
[3, 4, 3],
[3, 4, 4],
[3, 3, 3],
[3, 3, 4],
[3, 5, 3],
[3, 5, 4],
[3, 2, 3],
[3, 2, 4]
];
```
This issue also occurs with raster tiles and can be tested with:
```js
Object.keys(map.style._sourceCaches['other:mapbox']._tiles).length
```
Removing these extra tiles should be a low-hanging fruit for improving performance, though it may require a more involved collision detection algorithm than the axis-aligned-bounding-box approach introduced in https://github.com/mapbox/mapbox-gl-js/pull/11508.
On the other hand, it's possible that including these extra tiles in the cache could improve performance on subsequent panning. (Though even if this was included as a feature, they should not cause additional draw calls).
cc @ansis @akoylasar
