Raster layers crossing antimeridian are incorrectly transformed on non-mercator projections

Open
#11,218 1 comment 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

bug :lady_beetle:
Dominant language
TypeScript
Stars
12.4k
Forks
2.4k
PR merge metrics
No merged PRs in 30d

Description

**mapbox-gl-js version**: 3216f1ce2ed8acabb661caa498d6068acf5ec0b9 and v2.6.0-beta.1

**browser**: google chrome 95.0.4638.54, safari 15.1, firefox 93

### Steps to Trigger Behavior

1. Enable any non-mercator projection
2. Add raster layer, e.g. [this time zone chart of the world in mercator](https://tile.loc.gov/image-services/iiif/service:gdc:gdcwdl:wd:l_:06:77:6:wdl_06776:am007837/full/pct:25/0/default.jpg) (note that is's crossing antimeridian)

```js
map.addLayer({
'id': 'mercator',
'type': 'raster',
'source': {
type: 'image',
url: 'https://tile.loc.gov/image-services/iiif/service:gdc:gdcwdl:wd:l_:06:77:6:wdl_06776:am007837/full/pct:25/0/default.jpg',
coordinates: [
[-257, 81.3],
[175, 81.3],
[175, -74],
[-257, -74]
]
},
paint: {
'raster-opacity': 0.2,
}
});
```

### Link to Demonstration

https://jsbin.com/metanol/edit?js,output

### Expected Behavior

The image is transformed on the map according to the coordinates.

#### Mercator

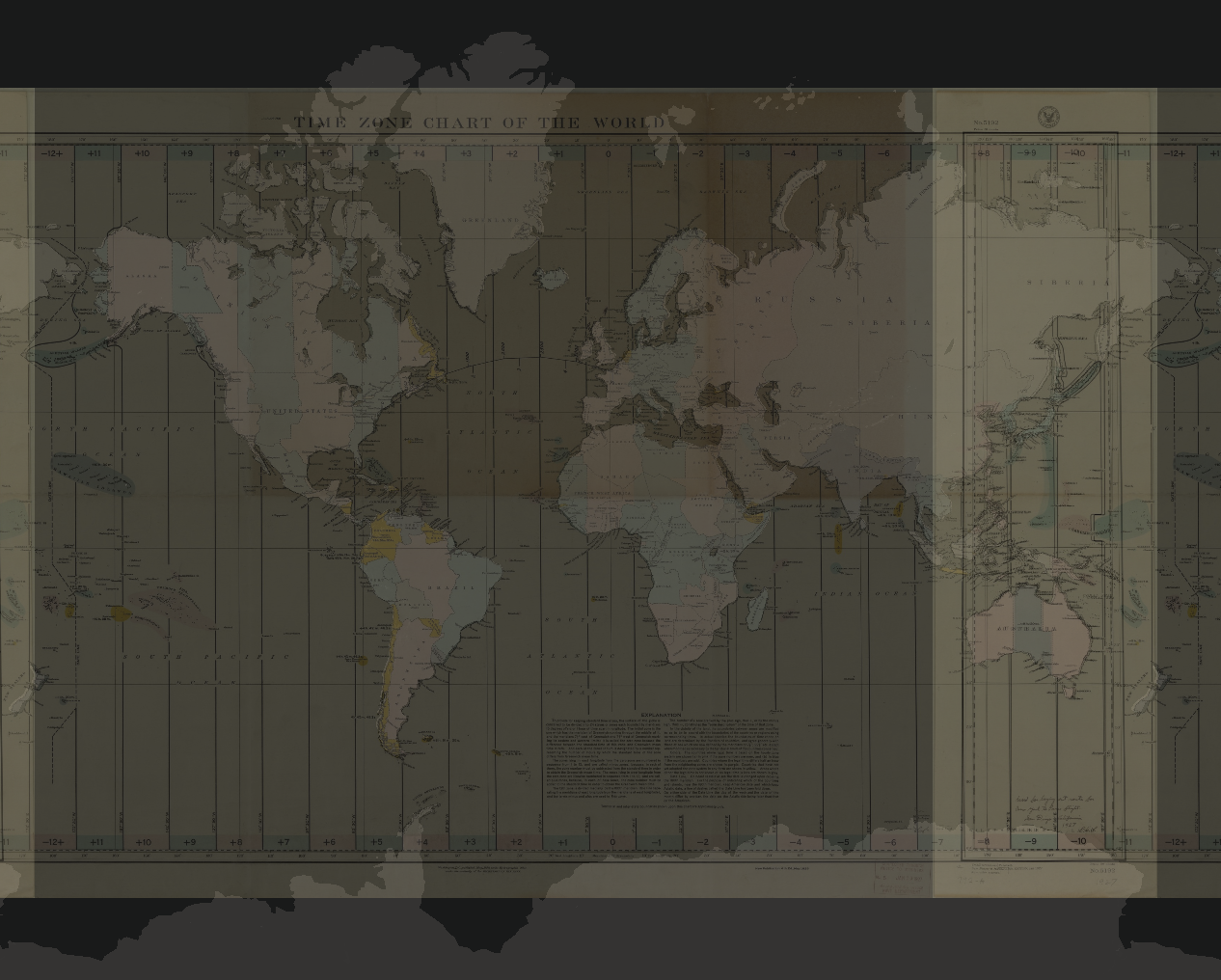

Screenshot 2021-11-04 at 12 54 46

### Actual Behavior

The image is not transformed as with Mercator projection

#### Equal Earth

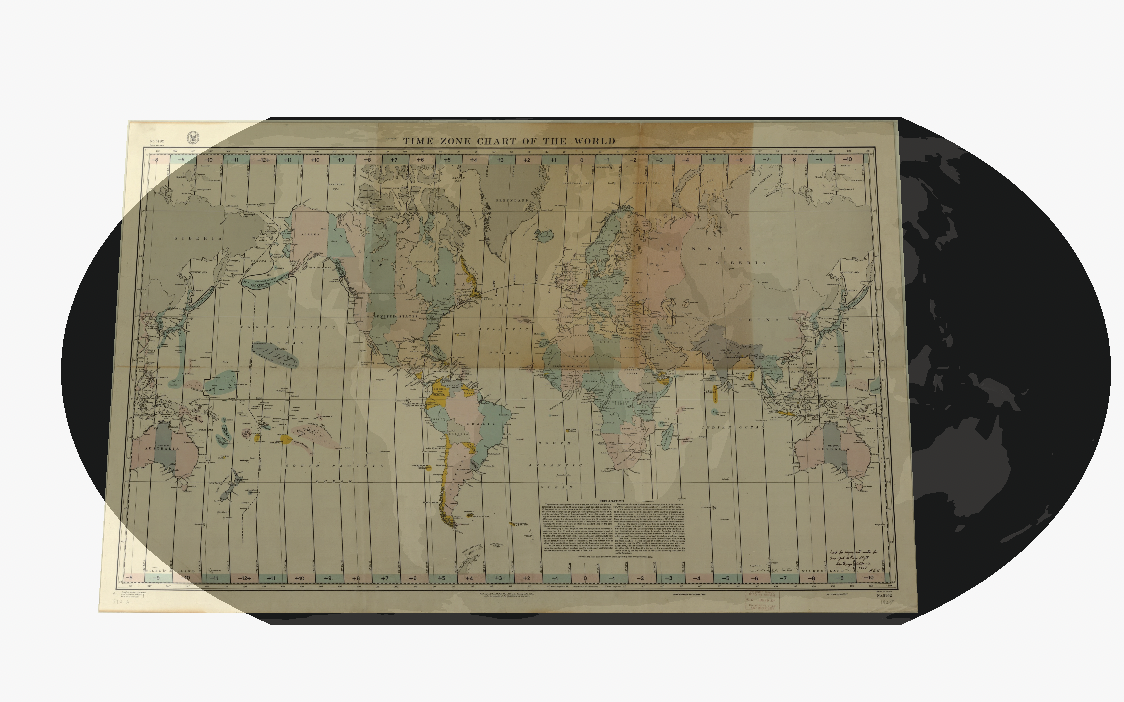

Screenshot 2021-11-04 at 13 15 16

#### Equirectangular

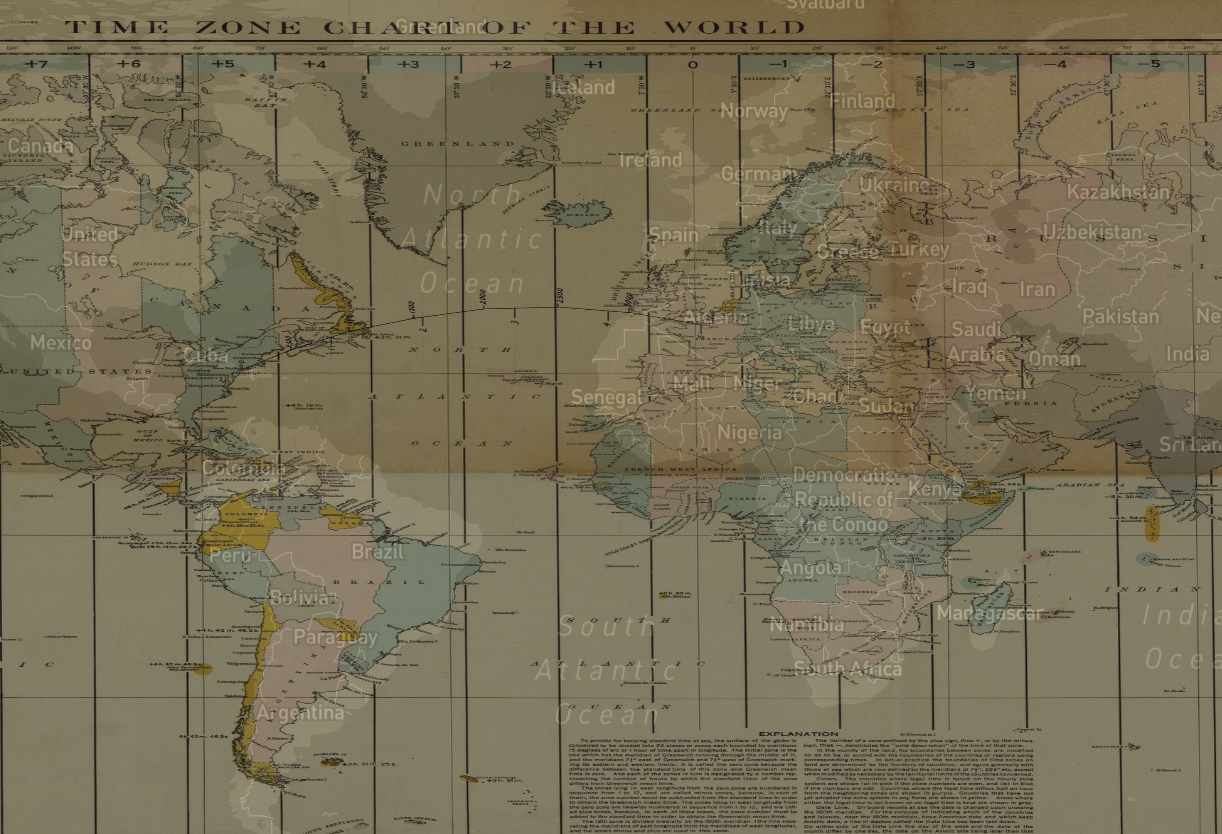

Screenshot 2021-11-04 at 13 16 58

#### Albers

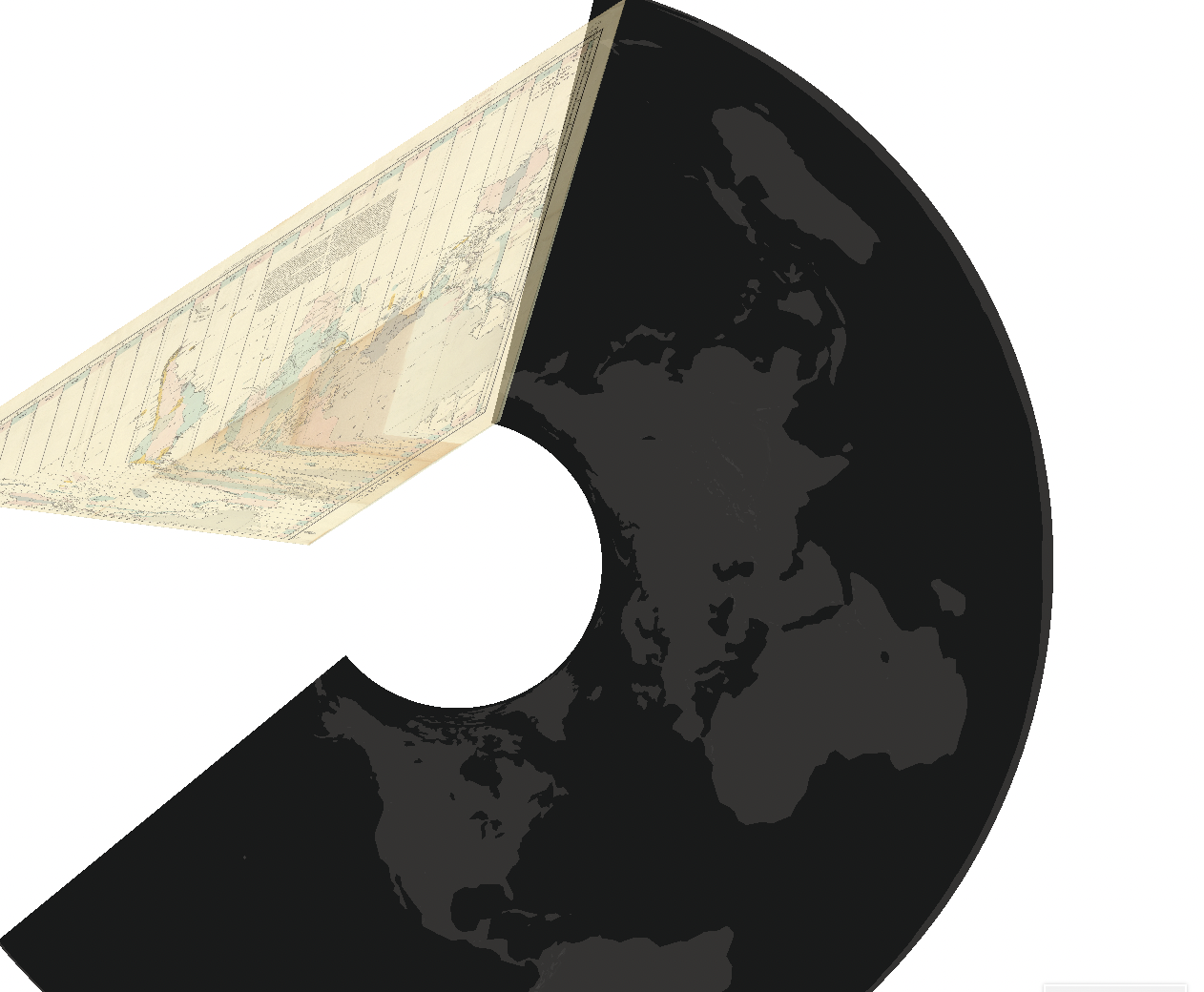

Screenshot 2021-11-04 at 12 54 03

#### Lambert Conformal Conic

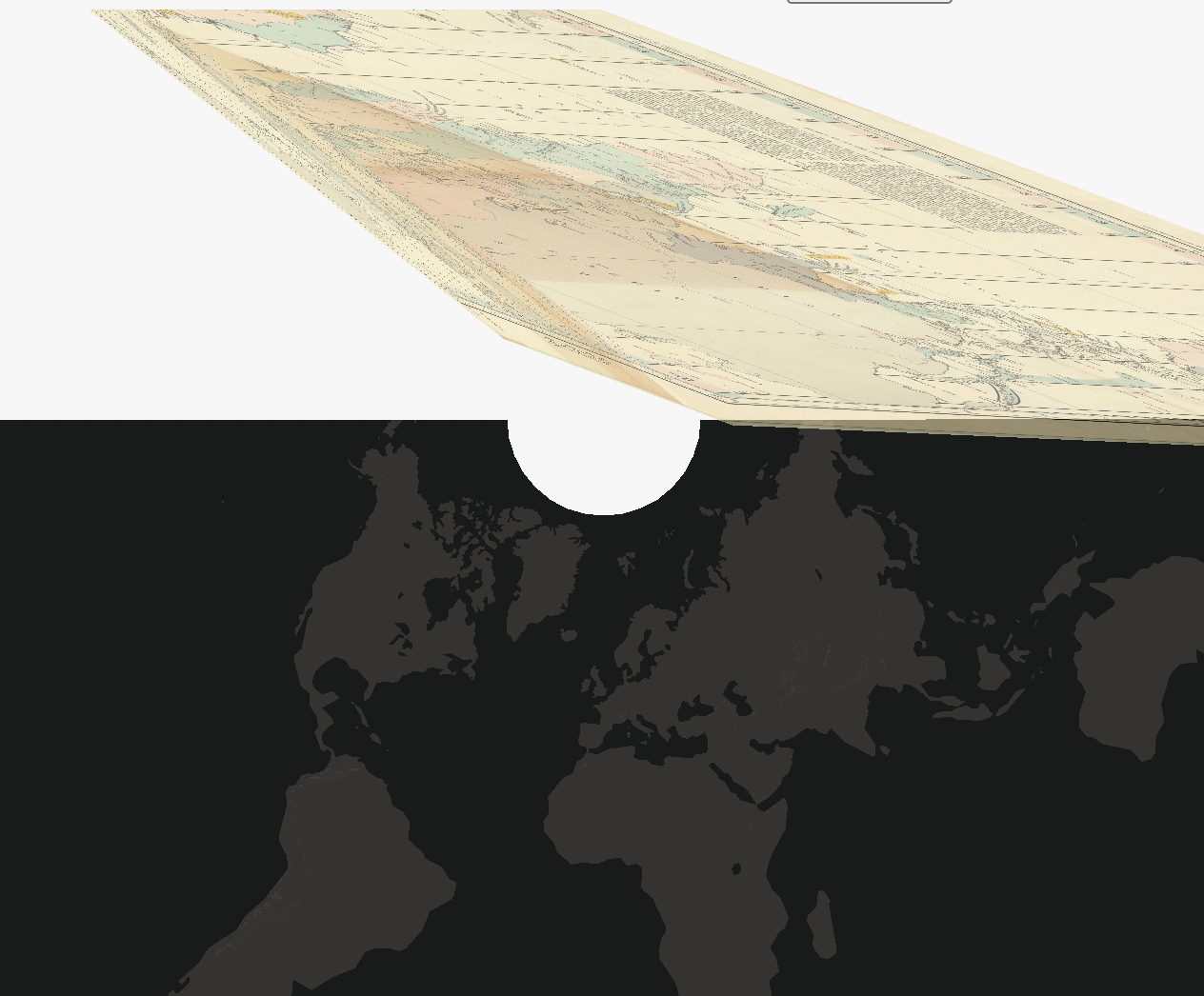

Screenshot 2021-11-04 at 12 54 27

https://user-images.githubusercontent.com/533564/140303679-2b7c1f09-1ca8-41b4-831b-b9b79eecc792.mov
