wrong tiles at low zooms with terrain enabled

Open
#10,826 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

bug :lady_beetle:
Dominant language
TypeScript
Stars
12.4k
Forks
2.4k
PR merge metrics
No merged PRs in 30d

Description

An unpitched map with terrain enabled shows a tiles from a mix of zoom levels. It should show tiles from the same zoom level (the way it looks without terrain). The visual effect is more severe when using tilesets with sharper cutoffs (data exists in z2, but not z1).

I think `transform.coveringTiles(...)` is not returning the right tiles and I think this may be related to the [distance calculation it uses](https://github.com/mapbox/mapbox-gl-js/blob/0eecef1d3fd42e9ebc41546e6ff1b292e9213491/src/geo/transform.js#L757). I think it uses a 3D distance from the camera point to the tile when maybe it should be using just the z distance from the camera to the tile.

**mapbox-gl-js version**: main (0eecef1)

**browser**: all

### Steps to Trigger Behavior

1. `yarn run start-debug`
2. open `http://localhost:9966/debug/terrain-debug.html#2.06/54.49/71.37` with a large viewport (innerWidth: 1701, innerHeight: 1361)
3. set `map.showTileBoundaries = true` in the console

### Expected Behavior

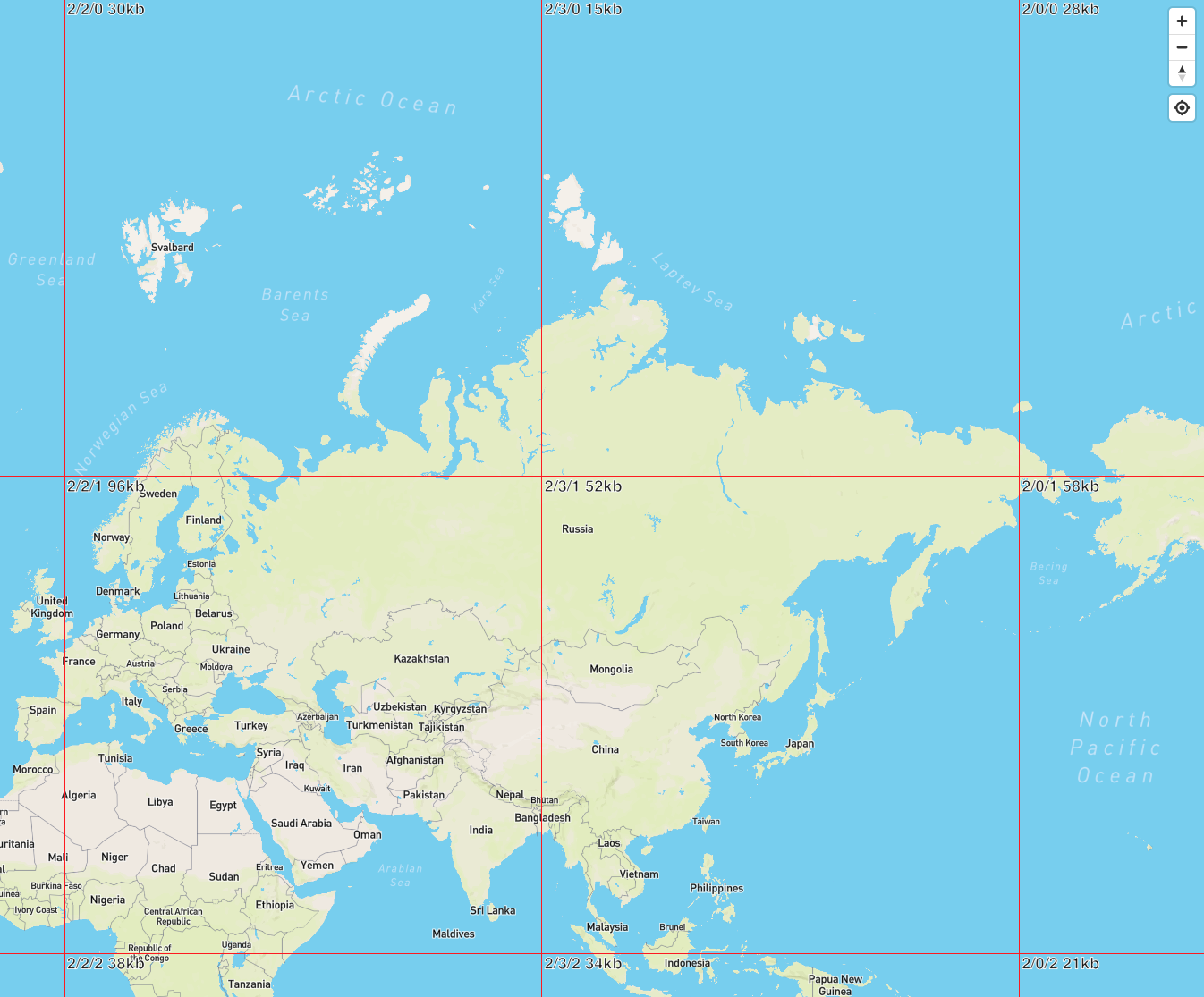

Viewport covered by z2 tiles:

![Screen Shot 2021-07-07 at 4 26 20 PM](https://user-images.githubusercontent.com/1421652/124824301-2f560680-df40-11eb-95bc-331c3c0cecf6.png)

### Actual Behavior

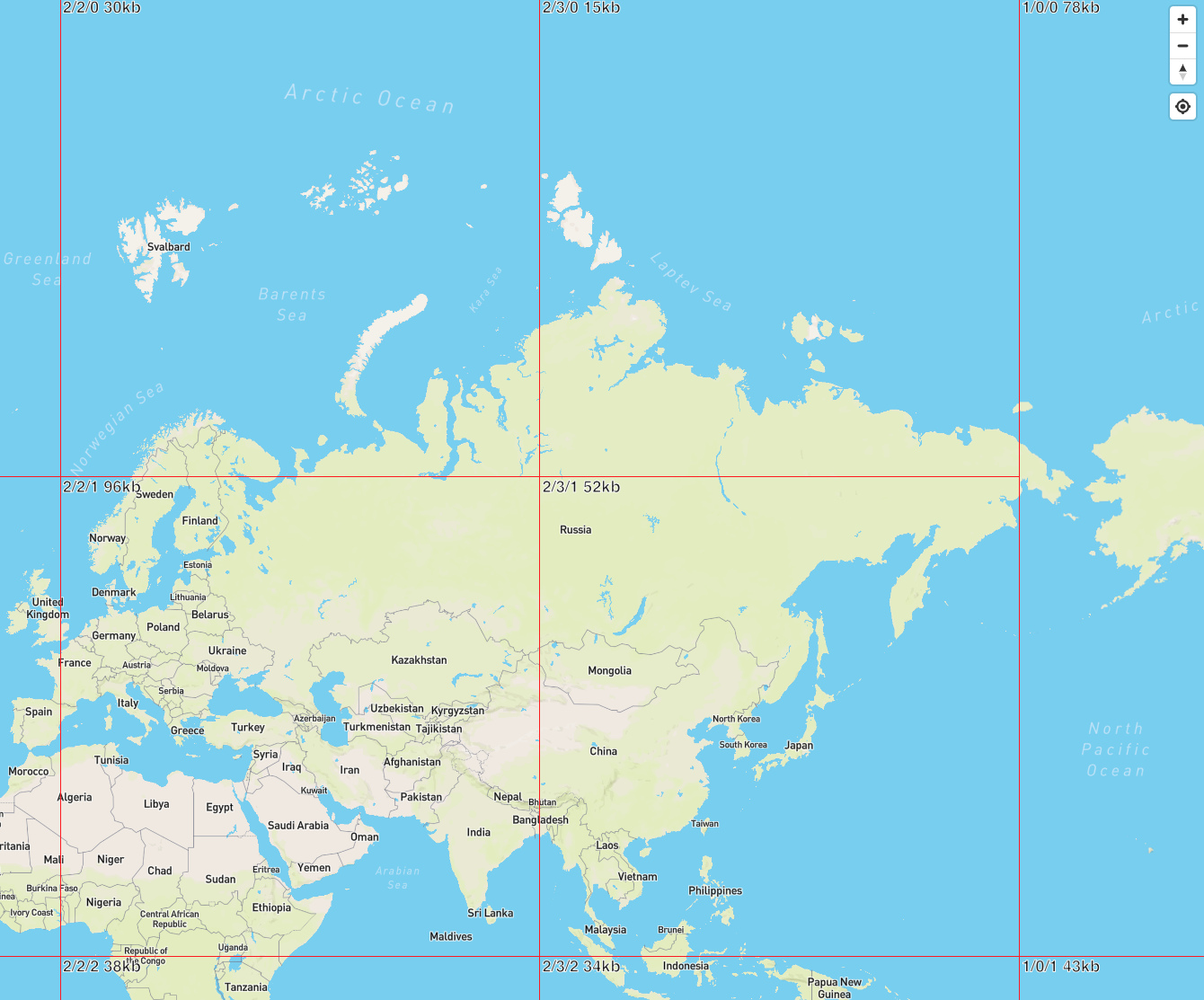

Viewport covered by a mix of z1 and z2 tiles:

![Screen Shot 2021-07-07 at 4 25 55 PM](https://user-images.githubusercontent.com/1421652/124824315-32e98d80-df40-11eb-9921-795e7267a5ee.png)
