Terrain drape texture size doesn't take device pixel ratio into account

Open
#10,396 0 comments 0 reactions 0 assignees View on GitHub

Nobody has claimed this yet.

3d :triangular_ruler: bug :lady_beetle:
Dominant language
TypeScript
Stars
12.4k
Forks
2.4k
PR merge metrics
No merged PRs in 30d

Description

Drape texture is used to render proxy tile in in whole integer zoom range, e.g. [14.00..15.0) for the example below.
Current calculation makes sense only for display with browser.devicePixelRation of 1.

https://github.com/mapbox/mapbox-gl-js/blob/2bf06afbd94b290dabaf1af80f50660cfc68ee39/src/terrain/terrain.js#L368-L370

This needs to be increased on displays with high DPI. The issue is accentuated towards the end of range, e.g. 14.98:

e.g.
http://localhost:9966/debug/terrain-debug.html#14.98/37.753/-122.435

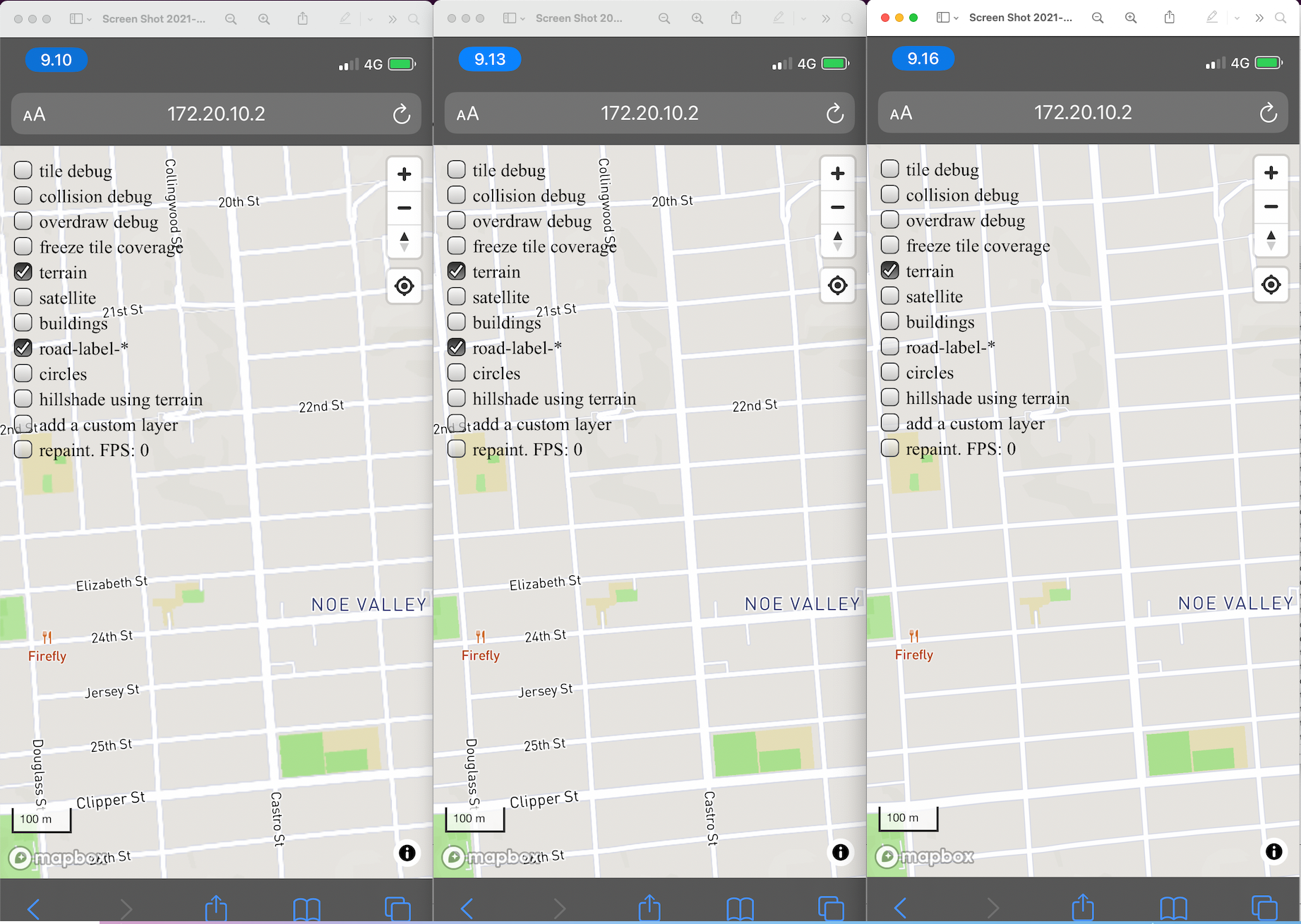

**current 1024** vs **2048** vs **3072** in iPhoneX (browser.devicePixelRatio is **3**).

![Screen Shot 2021-02-18 at 9 44 31](https://user-images.githubusercontent.com/549216/108327993-be9e8f80-71d4-11eb-815f-bef1fa501218.png)

1024 = `const extent = this.proxySourceCache.getSource().tileSize * 2;`
2048 = `const extent = this.proxySourceCache.getSource().tileSize * 2 * 2;`
1024 = `const extent = this.proxySourceCache.getSource().tileSize * 2 * 3; // browser.devicePixelRatio`

A short performance check shows drop in FPS count on tilted view (30 vs 23 vs 13). Render cache there is disabled - forcing that drape textures are re-rendered every frame. It is also noticeable that the visual difference is not that noticeable (due to bearing):

http://localhost:9966/debug/terrain-debug.html#17.98/37.755668/-122.447788/73.4/70

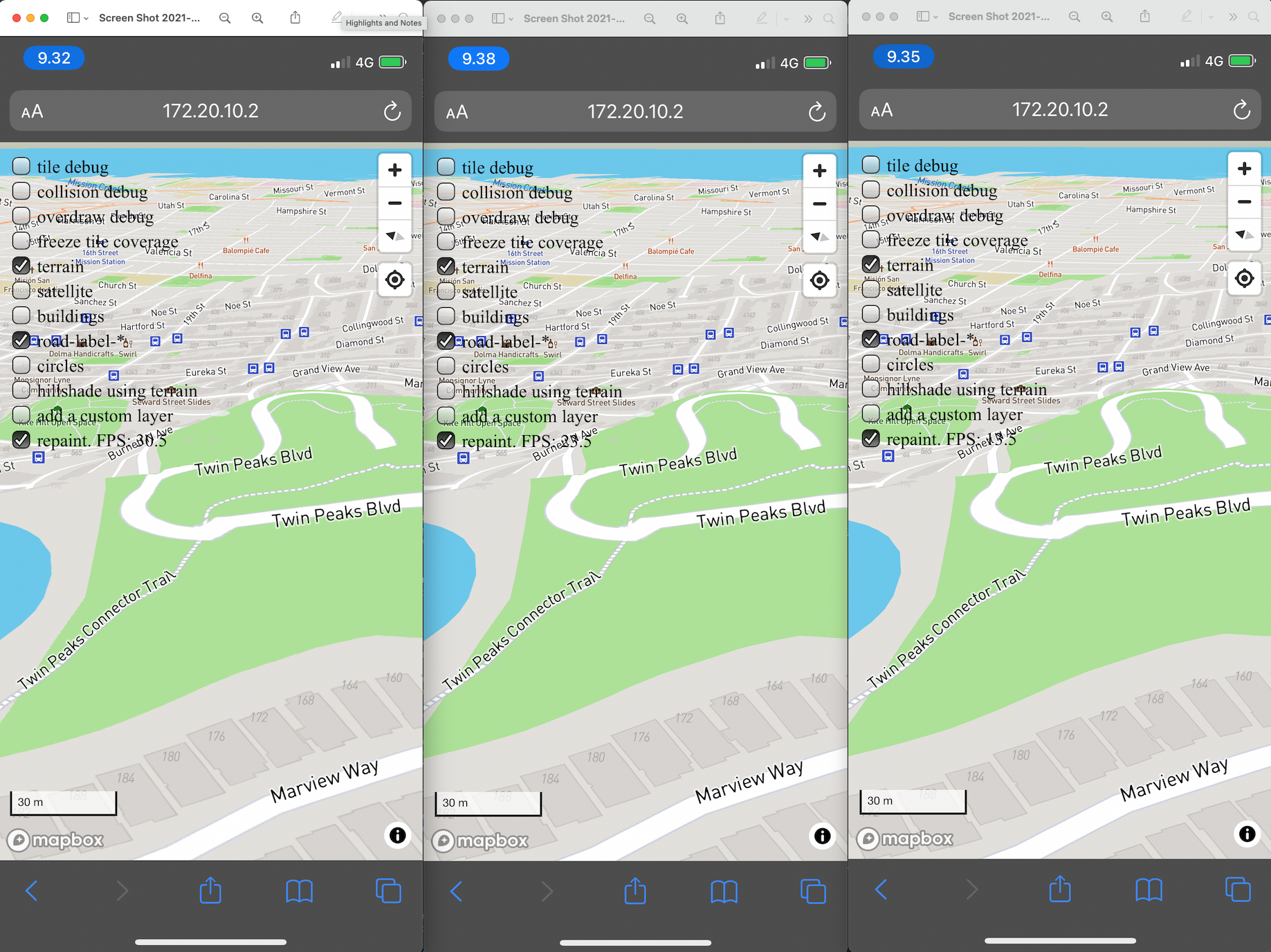

**current 1024** vs **2048** vs **3072** in iPhoneX (browser.devicePixelRatio is **3**).

![Screen Shot 2021-02-18 at 9 40 32](https://user-images.githubusercontent.com/549216/108329318-d591b180-71d5-11eb-9541-80474856d5ae.png)

Using 2 (2048) looks like an acceptable compromise.
