[doc] Signals between blocks can be very hard to read
Open
Nobody has claimed this yet.
Component:Doc
Earlgrey-PROD Triaged
- Dominant language
- SystemVerilog
- Stars
- 3.6k
- Forks
- 1.1k
- Avg merge
- 2d 22h
- Merged PRs (30d)
- 141
Description
Description

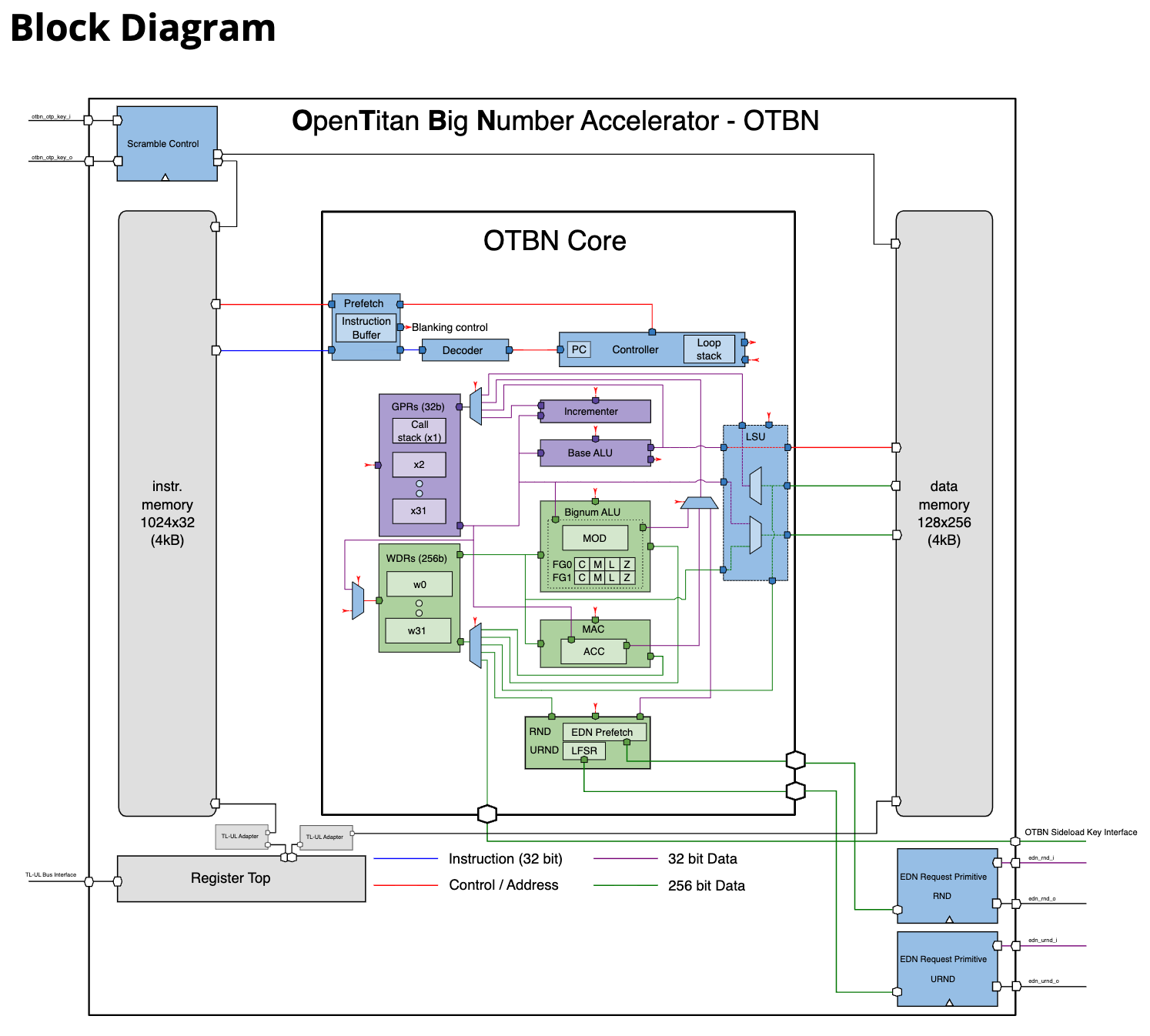

See for example the OTBN block:
Zooming ten times or more may be required to be able to read the signal name of the edges of the OTBN IP.
Tested on Safari 16.4 (18615.1.26.110.1) & Brave v1.50.121 Chromium: 112.0.5615.138
