Applying Sobel Edge Detection to Images applying machine learning techniques.

I've been working on a personal project that supports automatic coloring book page generation.
Started off using sharp for some of its major features. Conversion, optimization, cropping, blur, grayscale etc.
Then when it came time to use something like Sobel or Canny on the images I didn't have too many options.
Eventually, I made my own implementation which I've released into the wild.

• github link
• published npm library

There wasn't any features related to edge detection that I could find.

n/a

What would you expect the API to look like?

This change would involve wrapping, grayscale, blur and the suggested Sobel's algorithm to an image.
Current implementations look like.

// using this implementation requires the ability to create a
import * as sharp from 'sharp';
import { SobelService } from '@musical-sniffle/sobel-edge-detection';

const sobelService = new SobelService();
// sobel's algorithm uses grayscale image data.
const { data, info } = await sharp(`${__dirname}/my-image.png`)
  .ensureAlpha()
  .grayscale()
  // optional, but useful to do blur beforehand.
  // .blur(3)
  .raw()
  .toBuffer({ resolveWithObject: true });

const { width, channels, height } = info;
const { imageData: detected } = sobelService.applySobel(
  new Uint8ClampedArray(data.buffer),
  width,
  height,
  channels
);
const imagename = `${__dirname}/edge-detected-image.png`;
await sharp(detected, { raw: { channels: 4, height, width } }).toFile(
  imagename
);

Future Implementations may look like

// using this implementation requires the ability to create a
import * as sharp from 'sharp';

const { data, info } = await sharp(`${__dirname}/my-image.png`)
  .applySobel({ blur: 3, kernelSize: 3 })
  .toBuffer({ resolveWithObject: true });

const imagename = `${__dirname}/edge-detected-image.png`;
await sharp(detected, { raw: { channels: 4, height, width } }).toFile(
  imagename
);

I've implemented it myself and have successfully used it with sharp.

see above links to github and my public npm repository. Since my implementation uses some relatively low level constructs
to apply sobel to an image. We could leverage what I've already written to make this process a bit more seemless.

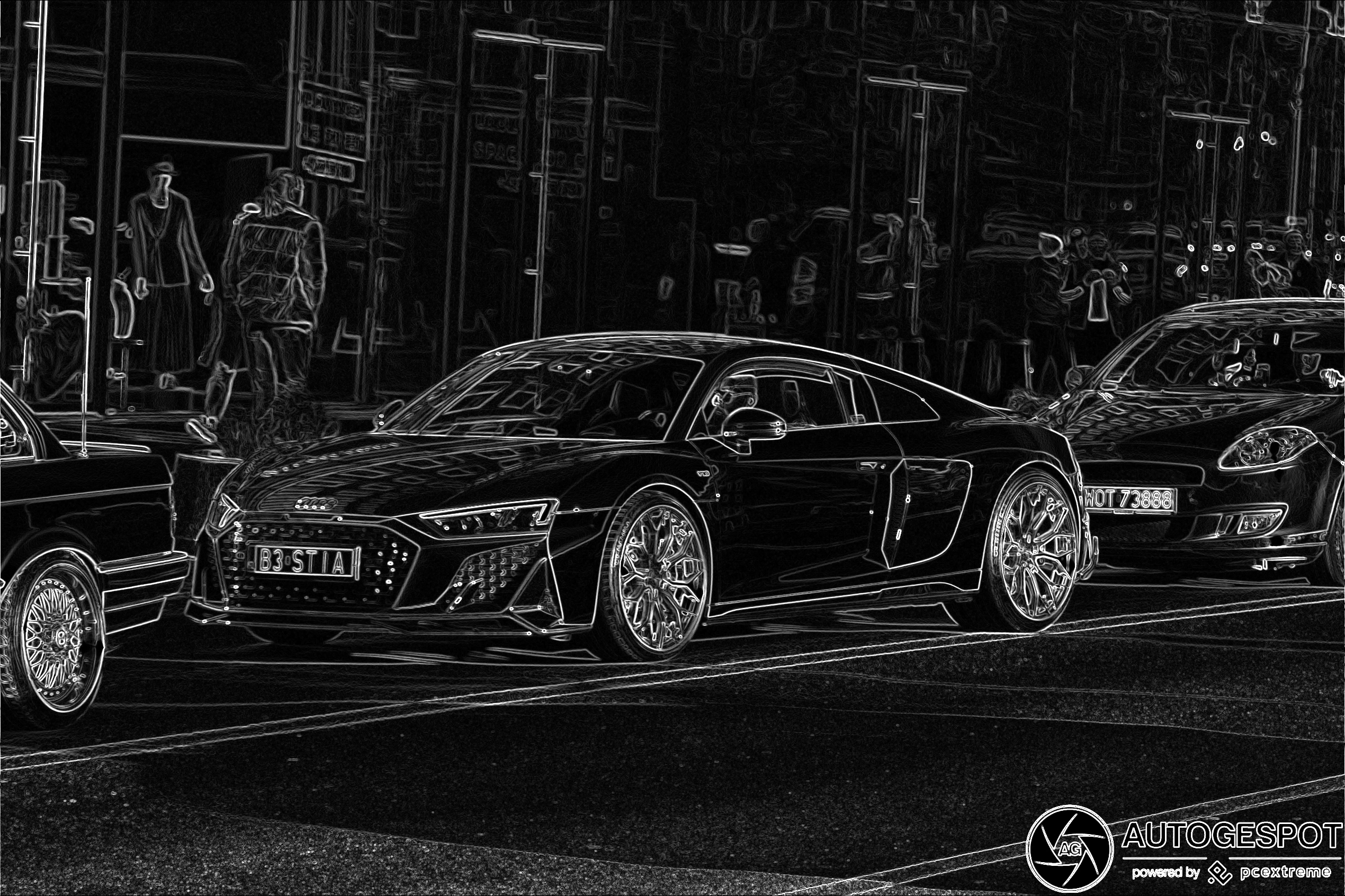

Images for Context.
