lordmauve / lordmauve/pgzero

Using screen.draw.text() with a color gradient causes clipping on characters with decenders

Open
#170 0 comments 0 reactions 0 assignees View on GitHub
ptext
Dominant language
Python
Stars
611
Forks
211
PR merge metrics
No merged PRs in 30d

Description

Using `screen.draw.text()` with a color gradient (`gcolor` argument) will clip characters having decenders (i.e. 'g', 'j', 'p', 'q', 'y').

The following code reproduces the issue using the 'g' character.
```
WIDTH = 600
HEIGHT = 400

def draw():
screen.fill('gray50')

screen.draw.text('gg',
(0,0),
color='black',
fontsize=400)

# Position the first gradient 'g' so it is covering the second black 'g'.
# This will show that the bottom is missing on the gradient 'g'.
screen.draw.text('gg',
(185,0),
color='green',
fontsize=400,
gcolor='white')

# Enclose the bottom of the text with a red rectangle to highlight
# the area being clipped.
screen.draw.rect(Rect((30, 270), (465, 15)), color='red')
```

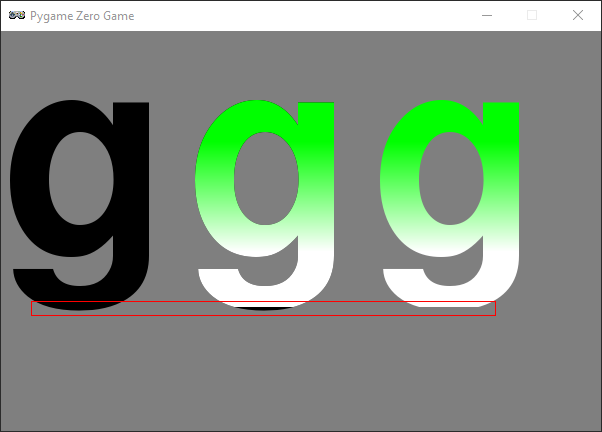

Running the above code gives the following output.

![clipped_gradient_g](https://user-images.githubusercontent.com/4837704/51076777-2f286900-166b-11e9-9ecf-107cbcdfa271.png)

System details:
- os: windows 10
- python: 3.7.2 (64bit) and 3.5.0 (64bit)
- pygame: 1.9.4
- pgzero: 1.2 (also reproduced on master branch at ef963beaa22db89cb011695e96587bb268cbec2a)
- numpy: 1.15.4
