Umap map samples from same data distribution into different region

Open
#710 0 comments 0 reactions 0 assignees View on GitHub
Dominant language
Python
Stars
8.3k
Forks
871
Avg merge
1d 13h
Merged PRs (30d)
5

Description

It seems like the umap model did not map the same data distribution samples to the same general region. This problem does not seems to be present on rapids umap implementation (which is weird)

Here are the sample code

**Data Generation**
```python
import numpy as np

n_samples = 10000
n_dims = 5
data = []
np.random.seed(1337)
for _ in range(n_dims):
data.append(np.random.normal(loc=(5*np.random.uniform() + 3), scale=2.0, size=n_samples))
order = np.arange(data[-1].shape[0])
np.random.shuffle(order)
order = order[:int(0.5*np.random.uniform()*order.shape[0])]
data[-1][order] = 0.0
data[-1][data[-1] < 0] = 0.0
data = np.array(data).T

train_data = data[:int(len(data)*0.5)]
test_data = data[int(len(data)*0.5):]
```

**Umap**
```python
import umap

fitter = umap.UMAP(
n_neighbors=30,
min_dist=0.0,
n_components=2,
negative_sample_rate=15,
random_state=42,
verbose=True,
).fit(train_data)

train_embedding = fitter.transform(train_data)
test_embedding = fitter.transform(test_data)
```

**Plot**
```python
import matplotlib.pyplot as plt
plt.style.use('ggplot')

fig, ax = plt.subplots(1, figsize=(15, 15))
plt.scatter(*train_embedding.T, s=3, alpha=0.5, label="train")
plt.scatter(*test_embedding.T, s=3, alpha=0.5, label="test")
plt.legend(loc="best")
plt.setp(ax, xticks=[], yticks=[])
plt.show()
```

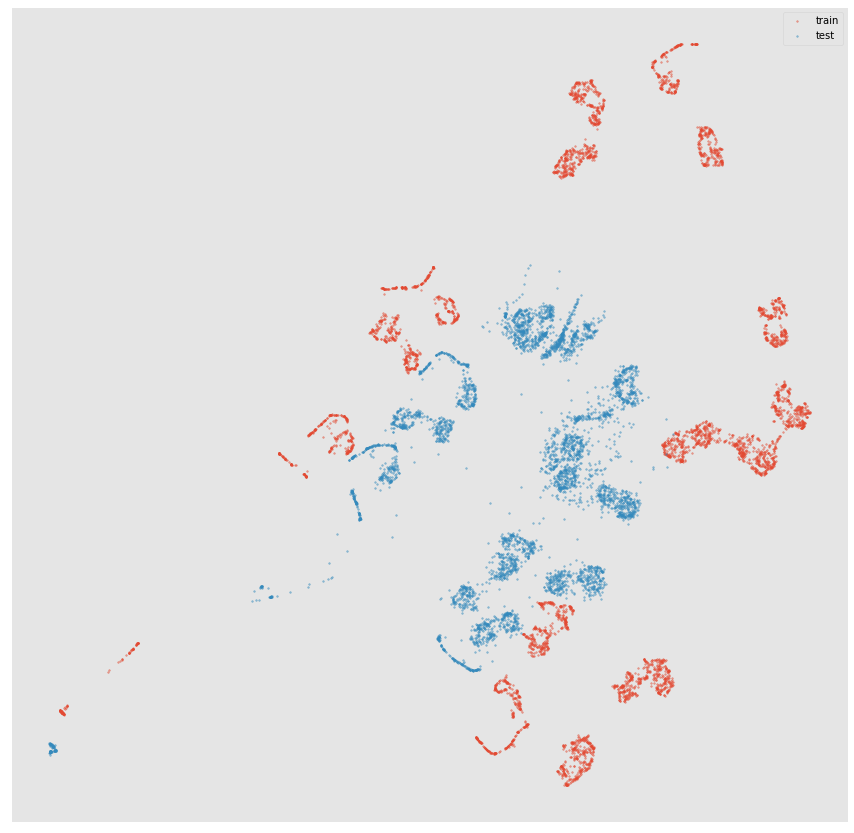

Umap (CPU)
![CPU plot](https://user-images.githubusercontent.com/21255489/123632399-15cb0580-d842-11eb-9efe-c44b5197e3e3.png)

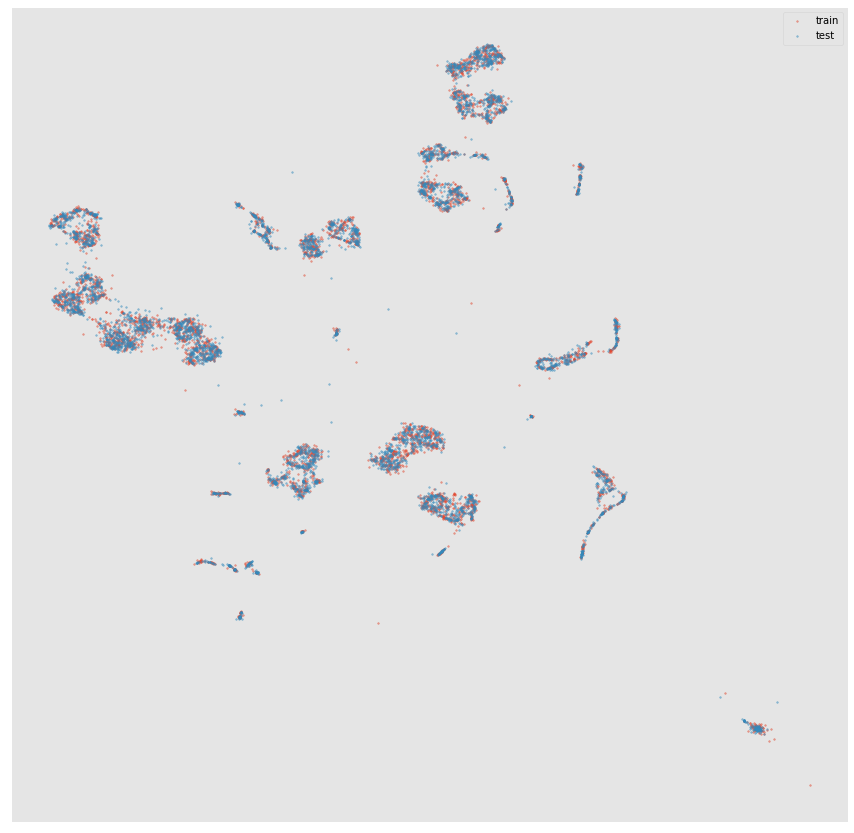

Umap (Rapids - GPU)
![Rapids plot](https://user-images.githubusercontent.com/21255489/123634879-2e88ea80-d845-11eb-98c9-130b2df1d1c6.png)
