Update 2020-02-07: Honeybee + Spider

Updates 2020-02-07: Honeybee + Spider

Accomplishments

Spider gbXML Viewer v-2020-02-06

• New tiny, fast, easy to read gbXML parser
• Note some faces still have errors
• New date-oriented versioning
  • https://calver.org/
  • Helps a lot when there are many many projects with modules
• Beginning to add features
• Loads sample files
• Better zooming and viewing

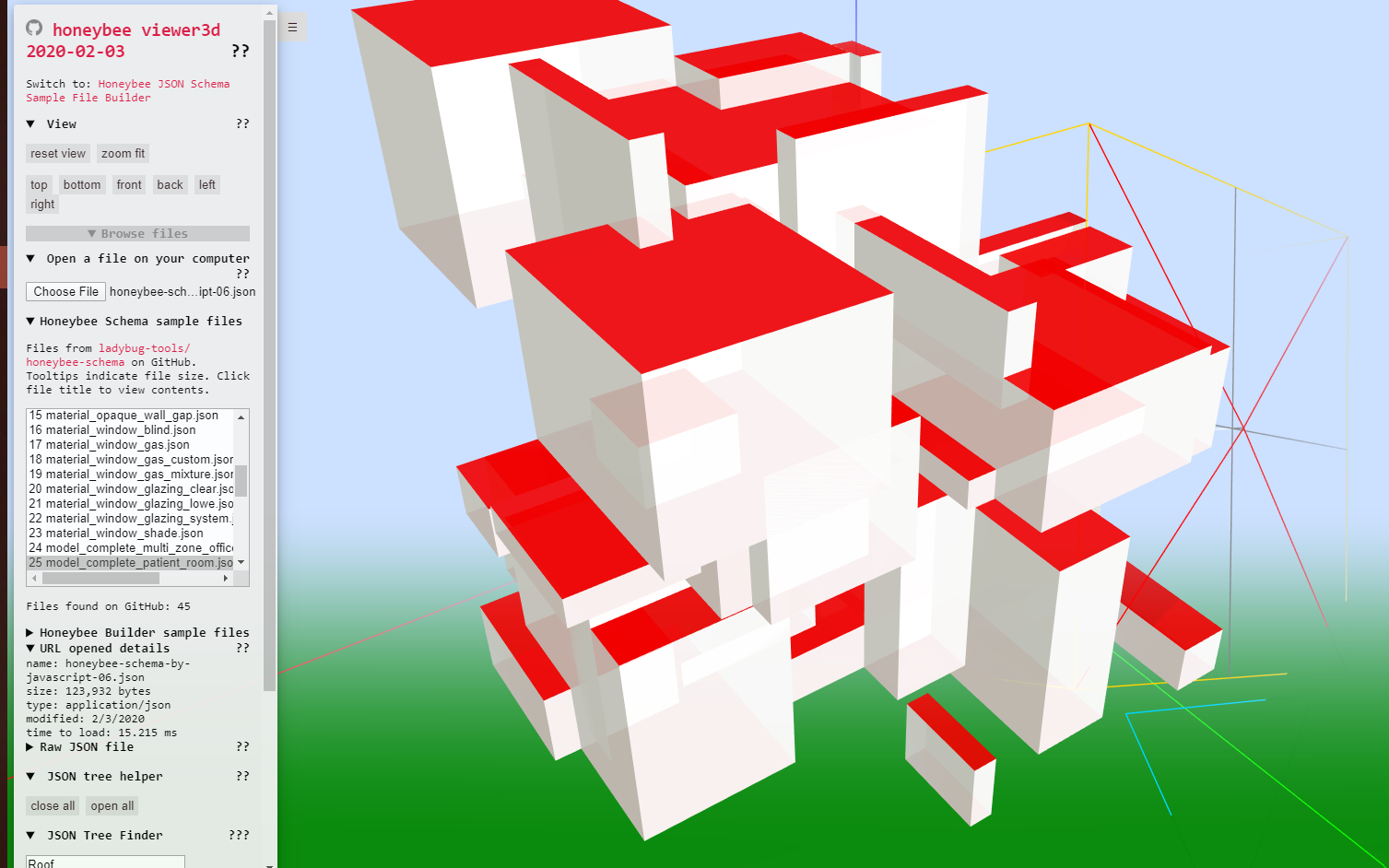

honeybee viewer3d 2020-02-03

F: Add link to Builder
R: Turn off gaming mode
F: Add gfb-github-file-builder-2020-02-03.js

Honeybee Viewer 3D 2020-01-27

• thrv-three-view-2020-01-27.js
  • R: Remove raycasting
• thrm-three-mouseover-2020-01-27.js
  • New module
  • Improved and working raycasting
  • Currently - and just for the moment - turns the viewer into a game
• phj-parse-honeybee-json-2020-01-24.js
  • R: Add mesh.computeBoundingBox - helps with raycasting
• jtf-json-tree-finder-2020-01-27.js
  • F: New module
  • F: Allows you to initiate a text search
  • F: Displays the findings but does not yet locate them

Honeybee Viewer 3D 2020-01-24

• phj-parse-honeybee-json-2020-01-24.js
  • R: Has shade fix from https://discourse.threejs.org/t/2d-to-3d-shape-shade-and-texture/12299/5
  • B: ass through jsHint and cleanup
• gfh-github-file-honeybee-2020-01-24.js
  • Don't run if you already have the data
• thrv-three-view-2020-01-21.js
  • New zoom fit

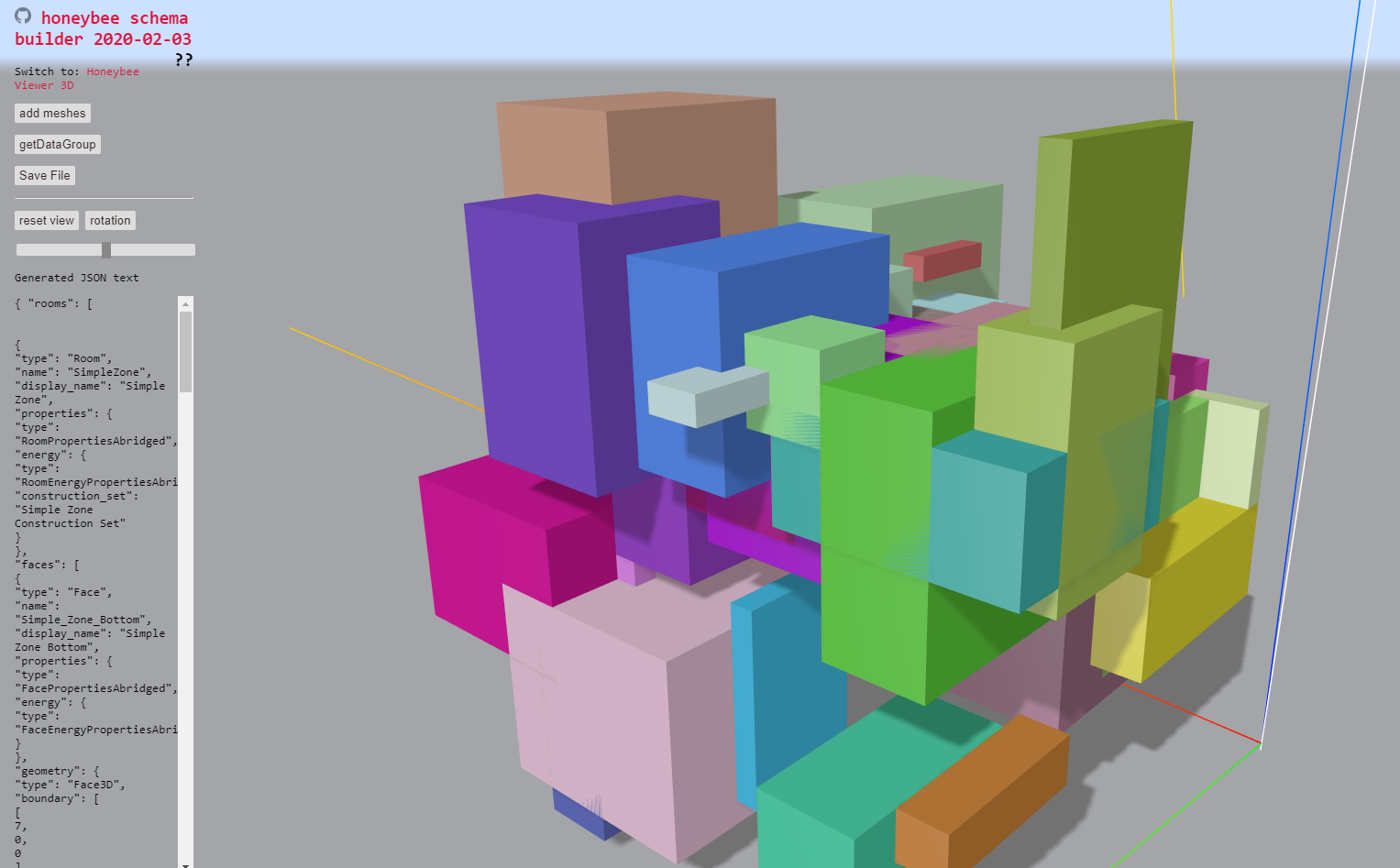

honeybee schema builder 2020-02-03

To Do / Wish List

• Add all the meta data
• Add all types of shades
• Add all types of openings
• Add any number of stories
• Add any number of plan types

Judgments

• What did we not accomplish and why?

For diverging points of view, see:

• https://github.com/ladybug-tools/spider-gbxml-tools/issues/46
• https://github.com/ladybug-tools/honeybee-viewer/issues/6

Objectives

For 2020

Honeybee Viewer Objectives

• Accesses, lists folders on GitHub with Sample files of the following types
  • gbXML, Honeybee Schema JSON, Dragonfly Schema JSON, RAD, OBJ, STL, GLTF, FBX and perhaps more
• Enables opening, displaying and saving assemblies of all the above file types
• Access maps images, terrain data and adjacent building data and add to assemblies
• Add Sun range, analaemmas and and similar
• Allow for building changes such as openings and shades being open or closed
• Allow for coloring, texturing and animating any surface using data supplied by engineering apps
• Add Git or Git-line capabilities to all files
• Enable projects to look pretty and be accessible or normal people
• Encourage use of data simplifications such as gbXML to be useful for envisaging piping, escape routes, signage etc
• Generate new data files as parametric components
• Provide seamless linking two way between 3D models and JSON or source data

Assistance with fixing broken CAD files will be available upon very special request only
