iovisor / iovisor/bcc

probe detach with many probes is slow (funccount)

Open
#1,317 2 comments 0 reactions 0 assignees View on GitHub
Dominant language
C
Stars
22.7k
Forks
4.1k
Avg merge
5d 13h
Merged PRs (30d)
3

Description

We've discussed this before, but I'm not sure we wrote anything down anywhere. So I'll create a ticket.

funccount with hundreds of probes takes tens of seconds to detach them. It gets annoying.

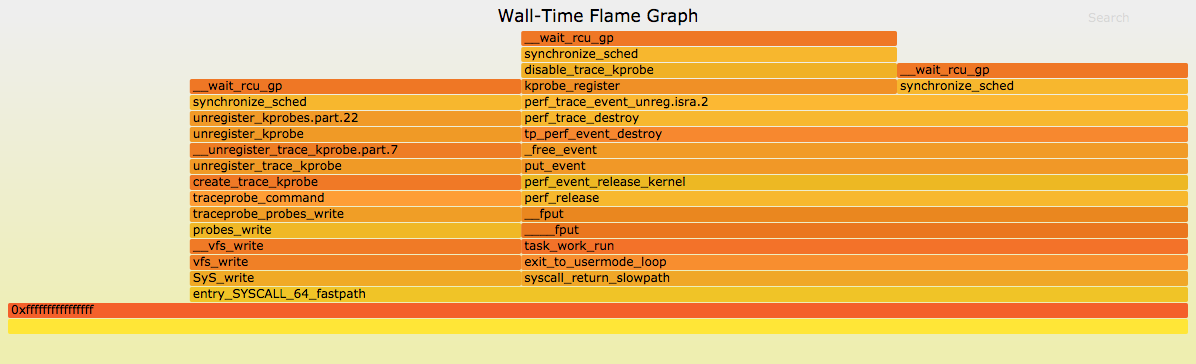

I wanted a CPU flame graph to see where in the kernel we were, but perf can't sample this CPU time (because we're in a scheduler lock? I haven't dug in as to why). I used ad hoc sampling of /proc/PID/stack instead to generate this wall-time flame graph:

![screen shot 2017-08-23 at 3 52 05 pm](https://user-images.githubusercontent.com/1101211/29641968-0c018914-881b-11e7-8cd4-75258828658a.png)

According to that, the time is all in synchronize_sched() (both on- and off-CPU). I imagine part of the problem is that we detach the probes one by one, so we end up in this path hundreds of times.

## Baseline

Here's tracing ext4 functions with a duration of 0 seconds, so the time measured is just setup and tear down:

```
# time ./funccount.py -d 0 'ext4_*' > /dev/null

real 0m40.703s
user 0m1.310s
sys 0m11.159s
```

That took 40 seconds. 28 of which it was blocked, off-CPU (synchronize_sched()).

## Offlining CPUs

Just as an experiment, I added this just before the exit, to turn off all CPUs on this 8 CPU system, except one:

```
os.system("for c in `seq 1 7`; do echo 0 > /sys/devices/system/cpu/cpu$c/online; done")
```

Now I get:

```
# time ./funccount.py -d 0 'ext4_*' > /dev/null

real 0m10.765s
user 0m1.191s
sys 0m8.935s
```

About 7 seconds of that is startup. So it's improved tear-down from 33 seconds to 3.

I'm not suggesting we have libbcc offline CPUs during detach, just measuring the magnitude of the RCU issue.

## Expedited RCUs

As another experiment with synchronize_sched(), I tried using expedited RCUs (after making sure my CPUs were back online):

```
echo 1 > /sys/kernel/rcu_expedited
```

Which brings it down to:

```
# time ./funccount.py -d 0 'ext4_*' > /dev/null

real 0m12.495s
user 0m1.242s
sys 0m11.207s
```

Pretty good. Should we set this, or should disable_track_kprobe() use synchronize_sched_expedited()? I'm not yet sure. (Might be a question for Paul E. McKenney).

Just looking at those numbers, it's letting bcc do the detach work without blocking. Compare those times to the baseline run, where 70% of the time is blocked off-CPU.

## Multiple detach

Another option of course is to have libbcc do multiple detach, instead of one by one.
