Description

__Steps to reproduce:__

I have counters collected from Telegraf statsd input with labels like these:

```
import statsd
c = statsd.StatsClient('localhost', 8125)
c.incr('film.viewed,title=Move')
c.incr('film.viewed,title=Elling')
c.incr('film.viewed,title=Elling,user=5')
c.incr('film.viewed,title=Elling,user=3')
c.incr('film.viewed,title=Move,user=5')
c.incr('film.viewed,title=Move,user=1')
c.incr('film.viewed,title=Kill Bill,user=5')
c.incr('film.viewed,title=Kill Bill,user=8')
c.incr('film.viewed,title=Elling,user=5')
c.incr('film.viewed,title=Move,user=5')
c.incr('film.viewed,title=Move,user=3')
c.incr('film.viewed,title=Kill Bill,user=3')
```

I am querying them like this:

```
from(bucket: "mybucket")
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> group(columns: ["title"], mode:"by")
|> filter(fn: (r) => r["_measurement"] == "film_viewed")
|> filter(fn: (r) => r["_field"] == "value")
|> cumulativeSum(columns: ["_value"])
|> yield(name: "views")
```

__Expected behavior:__

I would expect to get strictly increasing results for this query, one result per film title.

__Actual behavior:__

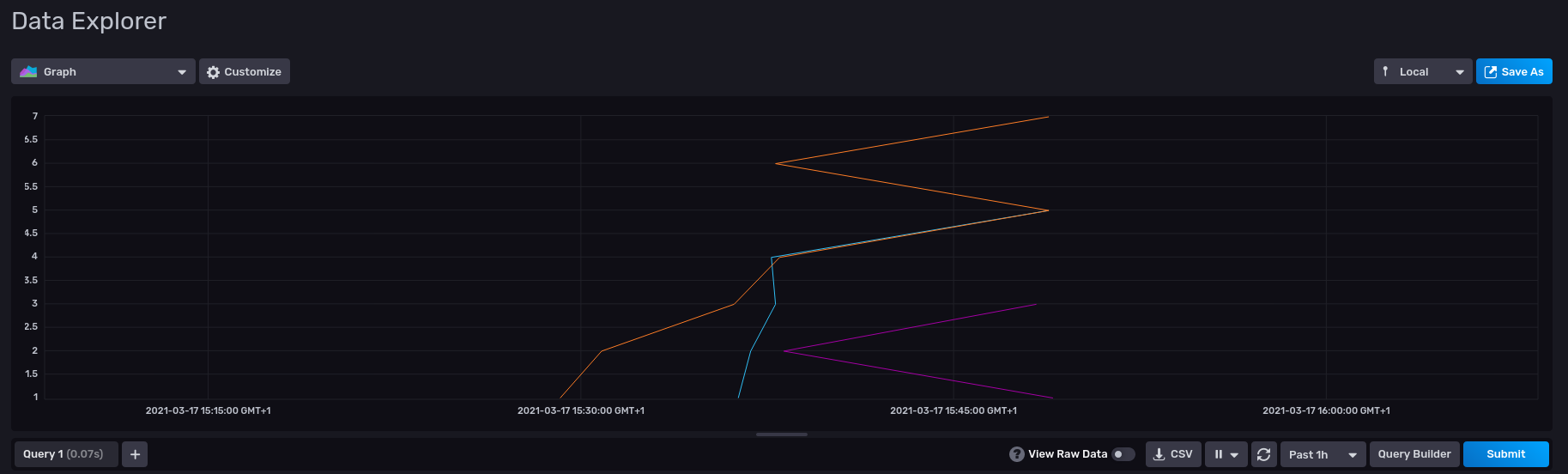

While I get results for each film title, they are somewhat funky with regards to the time domain:

![2021-03-17-160837_1827x552_scrot](https://user-images.githubusercontent.com/1347051/111490282-2e079080-873b-11eb-8c8a-fc9d0f95b33e.png)

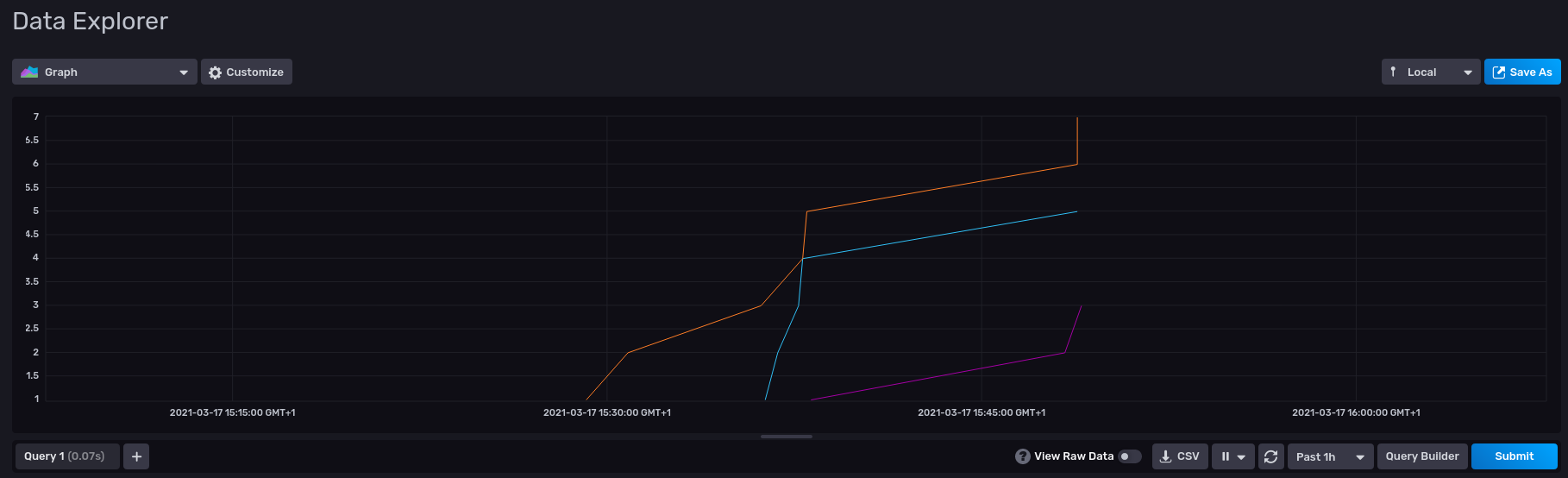

Adding a ` |> sort(columns: ["_time"], desc: false)` statement improves the situation somewhat:

![2021-03-17-160749_1818x554_scrot](https://user-images.githubusercontent.com/1347051/111490440-51324000-873b-11eb-93c1-dd9e3655e227.png)

However, there is still a bit of weird behavior where that one film's count goes up to 6 and then rises to 7 without any change in time.

I would have expected the rise to go linearly from 5 to 7 if there are two events that were pushed by telegraf at the same time.

__Environment info:__

* System info: Linux 5.10.11-arch1-1 x86_64
* InfluxDB version: InfluxDB 2.0.4 (git: 4e7a59bb9a) build_date: 2021-02-08T17:47:02Z
