Description

__Steps to reproduce:__
List the minimal actions needed to reproduce the behavior.

1. Run the proctat input plugin with telegraf pointed at influxdb

sample telegraf config

```toml
[agent]
interval="10s"
flush_interval="10s"

[[inputs.procstat]]
exe = ".*"

[[outputs.influxdb_v2]]
## The URLs of the InfluxDB cluster nodes.
##
## Multiple URLs can be specified for a single cluster, only ONE of the
## urls will be written to each interval.
## urls exp: http://127.0.0.1:9999
urls = ["http://localhost:9999"]

## Token for authentication.
token = "$INFLUX_TOKEN"

## Organization is the name of the organization you wish to write to; must exist.
organization = "rg"

## Destination bucket to write into.
bucket = "bucket1"
```

2. enter the following query and click view raw data:

```
processes = from(bucket: "bucket1")
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) =>
(r["_measurement"] == "procstat"))
|> filter(fn: (r) =>
(r["_field"] == "memory_usage"))
|> keep(columns: ["process_name"])
|> unique(column: "process_name")

processes
|> count()
|> yield(name: "num processes")

processes
|> yield(name: "process names")
```

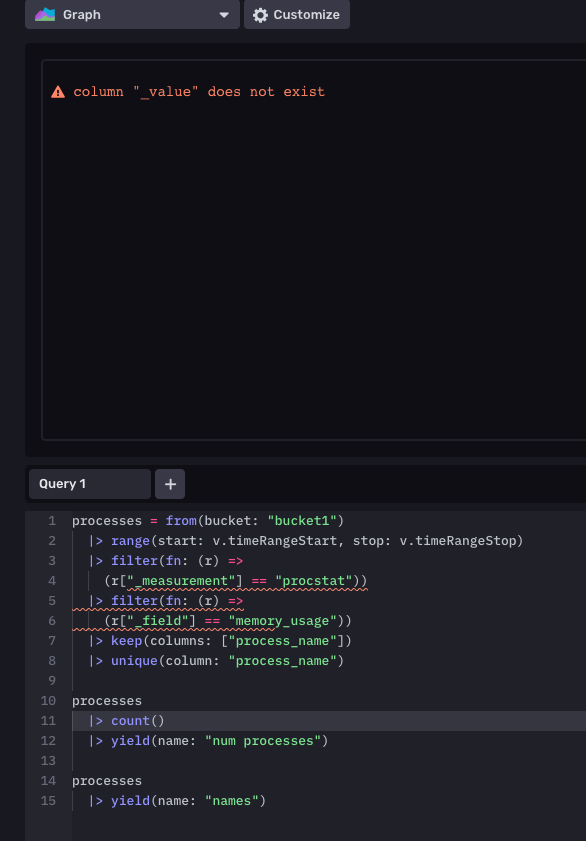

and I get:

![image](https://user-images.githubusercontent.com/17263167/90054563-e1ce0c80-dc90-11ea-9401-eb1caf6da4a6.png)

3. Update query to make `count` use the `process_name` field:

```
processes = from(bucket: "bucket1")
|> range(start: v.timeRangeStart, stop: v.timeRangeStop)
|> filter(fn: (r) =>
(r["_measurement"] == "procstat"))
|> filter(fn: (r) =>
(r["_field"] == "memory_usage"))
|> keep(columns: ["process_name"])
|> unique(column: "process_name")

processes
|> count(column: "process_name")
|> yield(name: "num processes")

processes
|> yield(name: "process names")
```

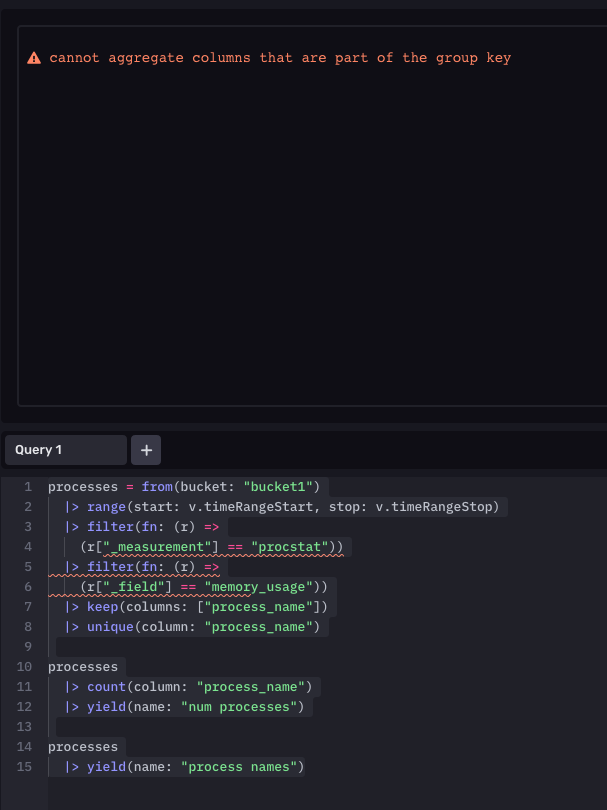

and I get:

![image](https://user-images.githubusercontent.com/17263167/90054642-01fdcb80-dc91-11ea-8ce5-bf04bde8136b.png)

__Expected behavior:__
Expected to be able to count rows here.

__Actual behavior:__
Errors, as described in the above

__Environment info:__

* System info: `Darwin 18.7.0 x86_64`
* Influxd version: master(b12c3ef77b)
* Browser: FireFox 79.0
