Description

### Version Information

Server Version: 2.0.7

### Environment

Tested on locally hosted container, OSS

### What is the expected behaviour?

When defining payload types for actions, it is possible to define scalar arrays as part of the payload (object types are not allowed)

![image](https://user-images.githubusercontent.com/25712958/134077059-4ff34527-88bd-496a-844a-11b24ba46718.png)

I can then populate this field with an array of scalar values, and it will work as expected

```js
// Request Handler
app.post('/authenticate', async (req, res) => {

// get request input
const { username, password } = req.body.input;

// run some business logic

/*
// In case of errors:
return res.status(400).json({
message: "error happened"
})
*/

// success
return res.json({
token: "",
user_id: 1,
username: "admin",
roles: ["admin", "user"] // note the array
})

});
```
Note how the `roles` field is an array of strings
![image](https://user-images.githubusercontent.com/25712958/134077461-5ad84bee-39b9-4b21-be48-b05848e4d5c1.png)

Up to now this is all expected behavior.

### Keywords

Scalar Array Action Payload Relation

### What is the current behaviour?

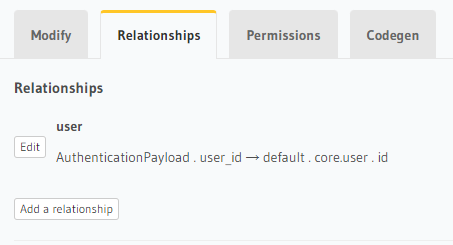

When a relation is added to the action payload, the scalar arrays will be converted json strings.
This happens even if the relation itself is not being queried

![image](https://user-images.githubusercontent.com/25712958/134077899-37735167-b4c1-4e42-8235-53d311ca62c1.png)

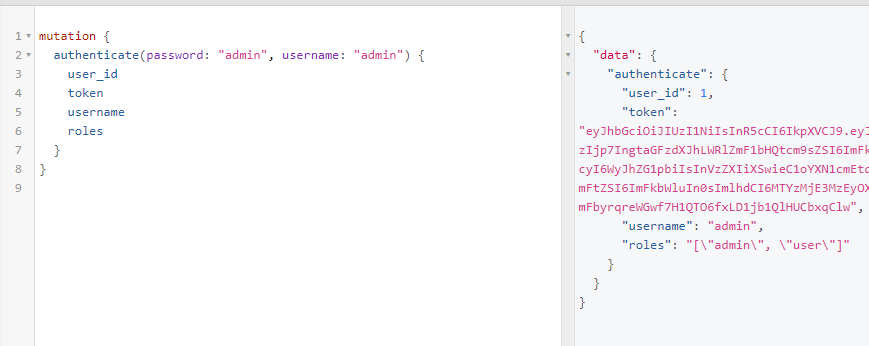

Note the `roles` field is now an escaped json string. This is unexpected.
![image](https://user-images.githubusercontent.com/25712958/134077934-1df1f06c-fbc3-42c5-a233-034323572234.png)

This is very niche behavior, but I thought it best it be documented.
