# Overview
I wanted to open an issue to get feedback and start a community discussion around how to build an optimal base platform for doing codegen in Hasura.

While setting out to build some codegen plugins of my own, I noticed that the official examples use native JS array methods for working with the GraphQL AST, which leads to things like this:

```js
const operationName = operationDoc.definitions[0].selectionSet.selections.filter(
s => s.name.value.indexOf('__') !== 0
)[0].name.value;
```

Unfortunately, for as much ***general*** tooling as there in the general ecosystem, online you will not find a lot of information about working with the low level bits in `graphql/language` and `graphql/utilities` (I assume because few people want to go mucking about with AST transforms).

The `graphql` library provides a `visit` method, which recursively walks the AST and allows you to pattern-match on node kinds during traversal. With this, you have a lot more power and expressibility/flexibility in ways you can work.

One major factor I wanted to address is **_codegen for language-specific type definitions (e.g. GraphQL type -> Go struct/Kotlin type)_**. The way this is done for Typescript currently is with `graphql-code-generator`. **The problem with this approach is that it only supports a number of plugins/languages, and outside of that you are SOL.** It would be optimum to write a base parser/generator for Codegen so that there is more flexibility here.

**To this end, I spent the past several days diving into the GraphQL source, and have come up with a rough draft using `visit` which you can see here (press RUN):**

https://repl.it/@GavinRay97/OurBlankCygwin

# Details

Given a schema of the following:
```gql
type Mutation {
InsertUserAction(user_info: UserInfo): TokenOutput
}

input UserInfo {
username: String!
password: [String]
}

type TokenOutput {
accessToken: String!
}
```

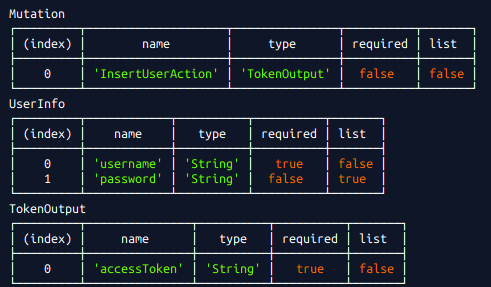

It produces:

![image](https://user-images.githubusercontent.com/26604994/76375247-bb8bf580-631b-11ea-912d-10ec9c9a85f4.png)

The core of it is very tiny (~30 lines) and only has a [dependency on a library which is a convenience wrapper around `graphql`](https://github.com/vadistic/graphql-extra), so no real dependencies outside of `graphql` itself:

![carbon(9)](https://user-images.githubusercontent.com/26604994/76375476-4ff65800-631c-11ea-82e7-1bb1340a6844.png)

# Conclusion

Now the goal is to provide some class/module which can take a schema string, parse out the typemap, and allow you to do something like:

```js
const hasuraCodegen = new HasuraCoden(schema)
hasuraCodegen.types.forEach(type => {
console.log(type.toGoType())
console.log(type.toJavaType())
console.log(type.toTypescriptType())
})
```

Any ideas/suggestions or help are much appreciated.
