Description
Overview of the Issue
Hi, I am using the consul as a agent to register and discover my 4000+ nodes.
I didn't use consul cluster but only single node mode (8c16g).

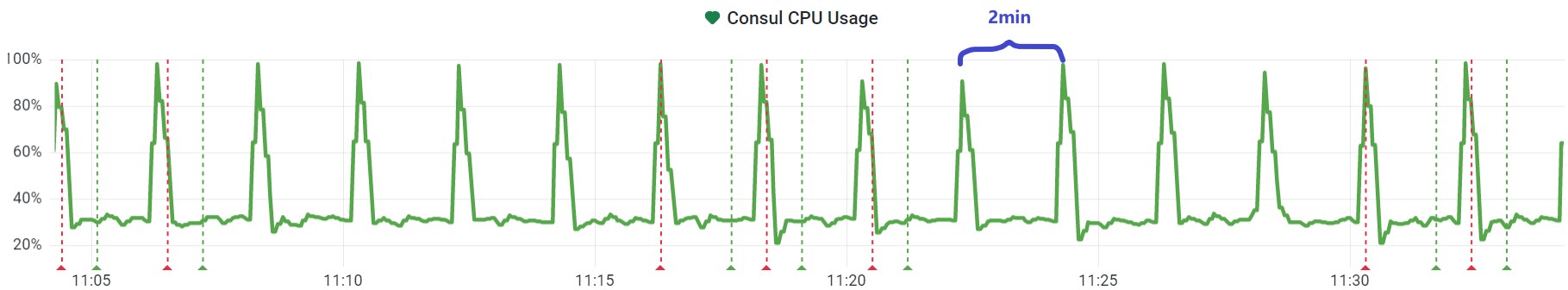

And I found the regular/periodic high CPU usage of the consul node:
I can't find any useful info from consul docs.
Why does the CPU reach 100% about per 2min ? And how to solve it ?
Reproduction Steps
No special steps, I run the consul with cmd:
nohup ./consul agent -server -bootstrap -bind=127.0.0.1 -client 0.0.0.0 -ui -data-dir=./data/ >> consul.log 2>&1 &
Consul info for both Client and Server
Client info
output from client 'consul info' command here
Server info
agent:
check_monitors = 0
check_ttls = 0
checks = 9577
services = 9577
build:
prerelease =
revision = db839f18
version = 1.10.1
consul:
acl = disabled
bootstrap = true
known_datacenters = 1
leader = true
leader_addr = 127.0.0.1:8300
server = true
raft:
applied_index = 95090532
commit_index = 95090532
fsm_pending = 0
last_contact = 0
last_log_index = 95090532
last_log_term = 10192
last_snapshot_index = 95086865
last_snapshot_term = 10192
latest_configuration = [{Suffrage:Voter ID:021344bf-96b7-ff88-a6b1-5feb1110d64d Address:127.0.0.1:8300}]
latest_configuration_index = 0
num_peers = 0
protocol_version = 3
protocol_version_max = 3
protocol_version_min = 0
snapshot_version_max = 1
snapshot_version_min = 0
state = Leader
term = 10192
runtime:
arch = amd64
cpu_count = 8
goroutines = 14270
max_procs = 8
os = linux
version = go1.16.6
serf_lan:
coordinate_resets = 0
encrypted = false
event_queue = 1
event_time = 4149
failed = 0
health_score = 0
intent_queue = 0
left = 0
member_time = 1
members = 1
query_queue = 0
query_time = 1
serf_wan:
coordinate_resets = 0
encrypted = false
event_queue = 0
event_time = 1
failed = 0
health_score = 0
intent_queue = 0
left = 0
member_time = 1
members = 1
query_queue = 0
query_time = 1
Operating system and Environment details
OS, Architecture, and any other information you can provide about the environment.
- CentOS7 x86_64
Log Fragments
Include appropriate Client or Server log fragments. If the log is longer than a few dozen lines, please include the URL to the gist of the log instead of posting it in the issue. Use -log-level=TRACE on the client and server to capture the maximum log detail.
