Groups and stacked/dodged positions.

I'm dealing with a figure where I would like to be able to dodge columns based on the group aesthetic while having the columns stay stacked on the fill aesthetic.

My intuition was that for geometries that use the group aesthetic, color/fill is assumed to be used as the group when it is not explicitly mapped to a variable. This seems to be the case with geom_line, for instance.

However, when using position_dodge and an explicitly mapped group, the bars appear to still be dodged by the group + fill variable.

To show some examples with a toy dataset:

df = pd.DataFrame(dict(
    day=np.repeat(range(1, 5), 3),
    species=np.tile(['A', 'B', 'C'], 4),
    counts=np.random.randint(0, 200, 12),
    replicate=1
))

df_replicates = df.query('day==2').assign(replicate=2).assign(counts=np.random.randint(0, 200, 3))

full_df = pd.concat([df, df_replicates])

day	species	counts	replicate
1	A	49	1
1	B	92	1
1	C	195	1
2	A	110	1
2	B	150	1
2	C	32	1
3	A	9	1
3	B	146	1
3	C	195	1
4	A	161	1
4	B	190	1
4	C	100	1
2	A	88	2
2	B	87	2
2	C	32	2

In this case, we have two different samples/replicates in day 2.

Default Behaviour

(p9.ggplot(full_df)
 + p9.aes('day', 'counts', fill='species', group='replicate')
 + p9.geom_col()
)

Since the default position is stack, specifying the group as the replicate stacks the bars for each of the replicates of day 2 following the order of species-replicate: A-1, B-1, C-1, A-2, B-2, C-2. Fair enough, this is probably the expected and desired behaviour.

Dodged Behaviour

The issue arises when we attempt to dodge the groups, so that the height of the bars still represents the total counts in a single sample:

position_dodge

(p9.ggplot(full_df)
 + p9.aes('day', 'counts', fill='species', group='replicate')
 + p9.geom_col(position='dodge')
)

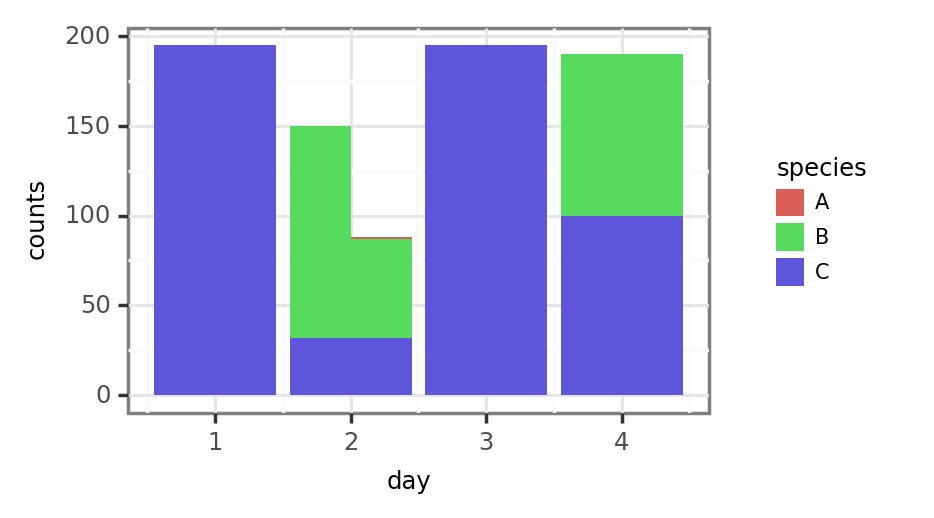

The group (replicates) have now been properly dodged/unstacked in day 2, but the previously stacked species all start now in the same x-y coords of the day-group instead of being stacked. Lowering the alpha a tad helps to see it better:

position_dodge2

The results with position_dodge2 are also problematic, since the width of the bars doesn't seem to be properly calculated (day 1 values become half as wide, while values for day 2 stay the same and overlap with values from the other days).

In any case, this completely unstacks the species/fill aesthetic, which is something we don't want even if bars' width was properly calculated.

The hacky solution

I thought that manually changing the x values (works in this case but would be a bit harder if the x variable was a Categorical, for instance) and generating a width variable to pass as an aesthetic manually setting the width of the day 2 values to .25 should allow me to make this work:

(full_df
 .assign(day=lambda dd: np.where(dd.replicate == 2, dd.day + .22, dd.day))
 .assign(day=lambda dd: np.where(dd.day==2, dd.day - .22, dd.day))
 .assign(width=lambda dd: np.where(dd.day.round() == 2, .4, .8))
 .pipe(lambda dd: p9.ggplot(dd)
 + p9.aes('day', 'counts', fill='species', group='replicate')
 + p9.geom_col(position='stack', mapping=p9.aes(width='width'))
)

I actually managed to solve this while writing the issue with this hacky solution, but still, it feels like there might be some way to include this behaviour in some position variety? I don't know if this situation is common enough to justify generating a specific position_dodgestack or something like that, but what do you think?

Start by reproducing the examples with geom_col, position='stack', position='dodge', and position_dodge2 using the provided full_df data. Trace how the explicit group='replicate' and fill='species' mappings are handled by these positions; done should provide a documented, tested way to dodge replicate groups while keeping species stacked, without manual x or width adjustments.
