Elevation void handling
- Dominant language
- Java
- Stars
- 6.7k
- Forks
- 2k
- Avg merge
- 15h 58m
- Merged PRs (30d)
- 3
Description
**Describe the bug**
Elevation voids can be present in different elevation providers that GraphHopper supports like SRTM. Currently, ElevationProvider returns NaN as the elevation where a void is present, and `Helper.eleToInt` converts that NaN to 0 for storage so all voids appear as having an elevation of 0 which could lead to large reported elevation gains/losses.
**To Reproduce**
Steps to reproduce the behavior. For examples:
1. checkout recent and stable version of GraphHopper
2. Import north-america_us_pennsylvania.pbf using foot/fastest and SRTM elevation provider and start local UI `./graphhopper.sh -a web -i north-america_us_pennsylvania.pbf`
3. Open http://localhost:8989/maps/?point=40.69086%2C-77.459169&point=40.686342%2C-77.464393&locale=en&vehicle=foot&weighting=fastest&elevation=true&turn_costs=false&use_miles=false&layer=TF%20Outdoors

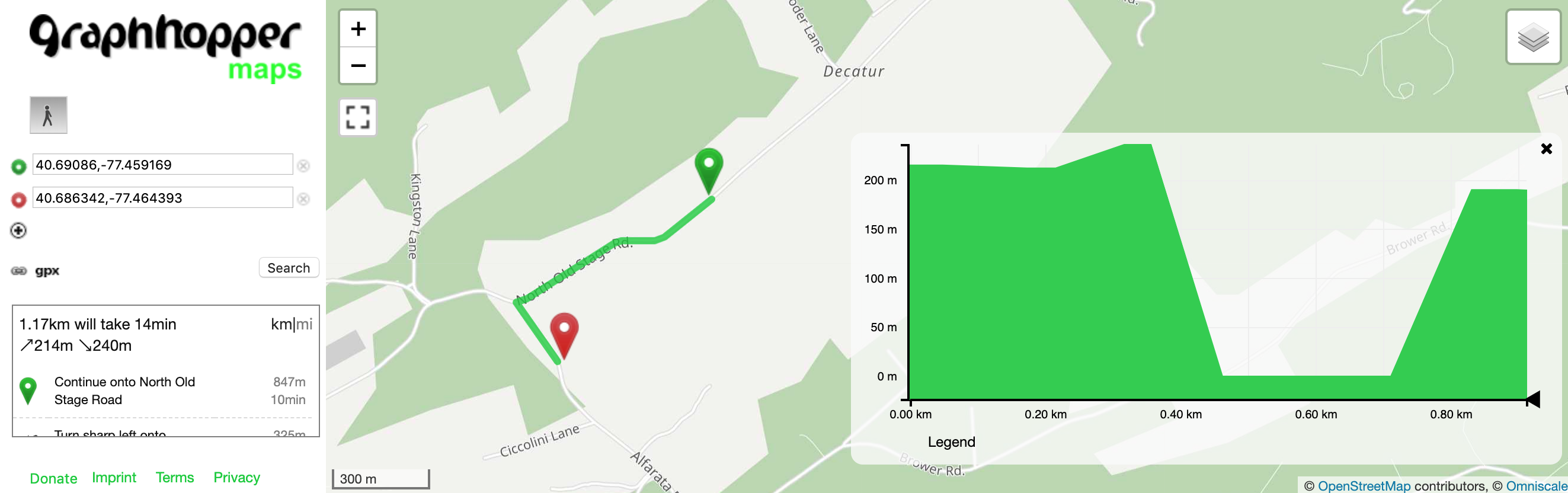

4. You can see a void that falls back to 0 in the middle of the route.

**Expected behavior**
It would be better if we excluded these artificial gains/losses from ascent/descent calculations and elevation-influenced routing algorithms, and for the elevation profiles, either:
- interpolate elevation across the void to just make it look like a consistent grade between data that we do have
- omit elevation from points in the void so it is clear that there is no data and elevation isn't actually 0m
Contributor guide
Assessment
This issue has not been assessed yet.
