Description

I found https://github.com/nvdv/vprof and ran it on two scripts.

Script 1 with booleanOperations (Cantarell from https://gitlab.gnome.org/GNOME/cantarell-fonts/tree/b3a2f068612933765af7696f46c3c2d544d5d3f9/src):

```Python
import ufoLib2
import ufo2ft

u = ufoLib2.Font.open("Cantarell-Regular.ufo")
f = ufo2ft.compileOTF(u, inplace=True, removeOverlaps=True)
f.save("a.otf")
```

Script 2 with skia-pathops:
```Python
import ufoLib2
import ufo2ft

u = ufoLib2.Font.open("Cantarell-Regular.ufo")
f = ufo2ft.compileOTF(u, inplace=True, removeOverlaps=True, overlapsBackend="pathops")
f.save("a.otf")
```

1. On my Fedora 31 x64 with Python 3.7.5, Ryzen 1700, pathops speeds up the runtime from 10s (bOps) to ~7.6s (pathops).

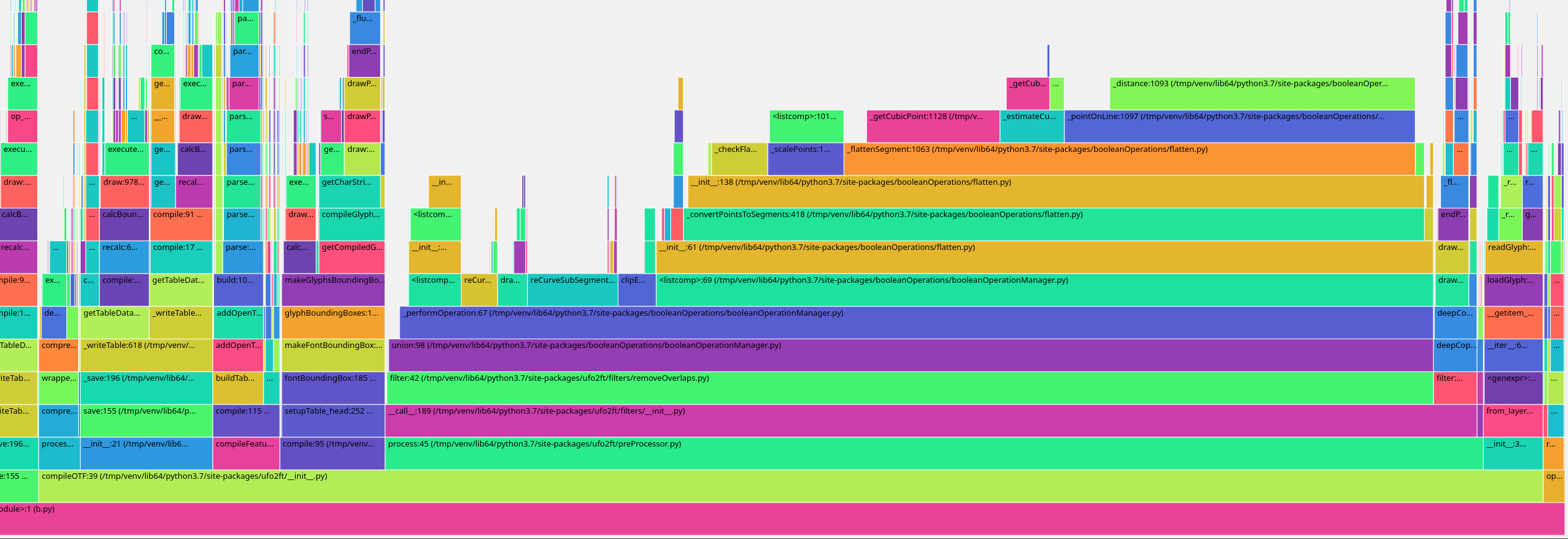

2. booleanOperations spends A LOT of time in `convertPointsToSegment`
![Bildschirmfoto vom 2019-12-05 19-39-21](https://user-images.githubusercontent.com/380829/70269630-ab9fcb00-179a-11ea-8597-a11666a6d834.png)

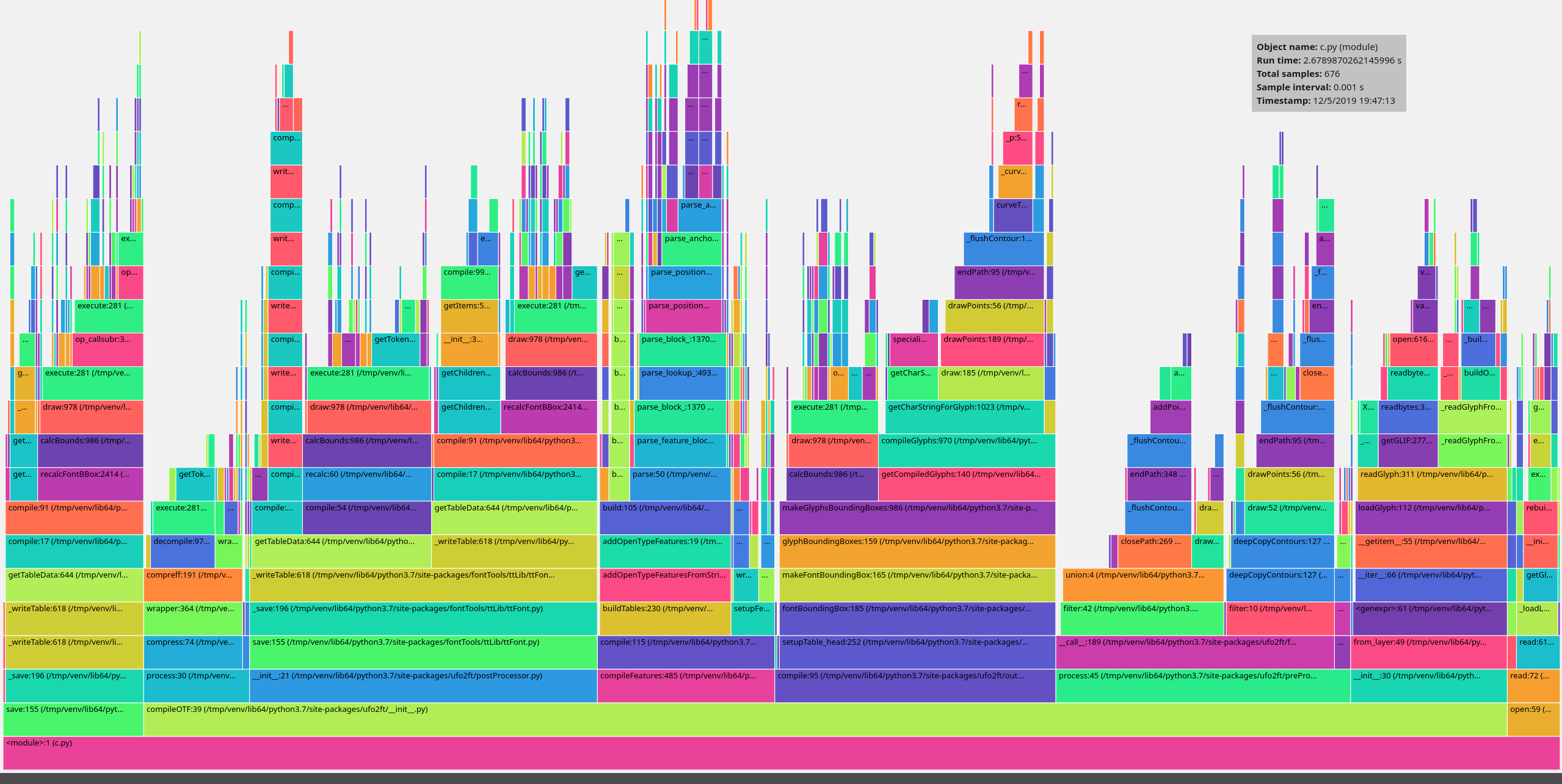

3. pathops presents a more even flame graph:
![grafik](https://user-images.githubusercontent.com/380829/70269720-d5f18880-179a-11ea-91ec-2bd3ef4b467b.png)
4. Memory usage: a lot of `Point`s. Quite a few `Glyph`s and `Anchor`s:
![Bildschirmfoto vom 2019-12-05 19-43-52](https://user-images.githubusercontent.com/380829/70269747-e4d83b00-179a-11ea-8f19-d839164d9c7d.png)
5. In the code heatmap, `logging` and `re` saw a lot of action for some reason:
![Bildschirmfoto vom 2019-12-05 20-12-02](https://user-images.githubusercontent.com/380829/70270116-97100280-179b-11ea-9a09-f49f25371921.png)

Contributor guide

Open the contributing guide

Research direction

Start by reproducing the two profiling runs through ufo2ft.compileOTF with removeOverlaps enabled, comparing the default booleanOperations backend with overlapsBackend="pathops". Review the reported time in booleanOperations.convertPointsToSegment and the observed Point, Glyph, Anchor, logging, and re activity; the issue does not define a specific optimization or acceptance criterion, so scope must be clarified before implementation.
