Keycloak issues when using Geonetwork 3.12.9 and Jetty

Open
#7,010 0 comments 0 reactions 0 assignees View on GitHub
Dominant language
Java
Stars
521
Forks
514
Avg merge
6d 13h
Merged PRs (30d)
19

Description

I am trying to configure Keycloak 21.0.2 and Geonetwork 3.12.9 (Jetty). Keycloak connects to Azure AD using openid connect protocol.

Keycloak is running under docker and https (8443) and Geonetwork as standalone application using Jetty.

After entering my credentials into the login page, I got this:

![image](https://user-images.githubusercontent.com/112934761/233105546-7179ede7-a975-4173-89d0-d7bb4aaebb45.png)

And in the Jetty logs, the error is:

```
ERROR org.keycloak.adapters.OAuthRequestAuthenticator - failed to turn code into token
javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
```

At keycloak level, I am using as redirects URLs:

https://localhost:8443/realms/my-realm/broker/azuread/endpoint*
http://localhost:8081/geonetwork/*

The keycloak.json is:

```
{
"realm": "my-realm",
"auth-server-url": "https://localhost:8443/",
"ssl-required": "external",
"resource": "client",
"credentials": {
"secret": "my-secret"
},
"confidential-port": 0,
"use-resource-role-mappings" : true
}
```

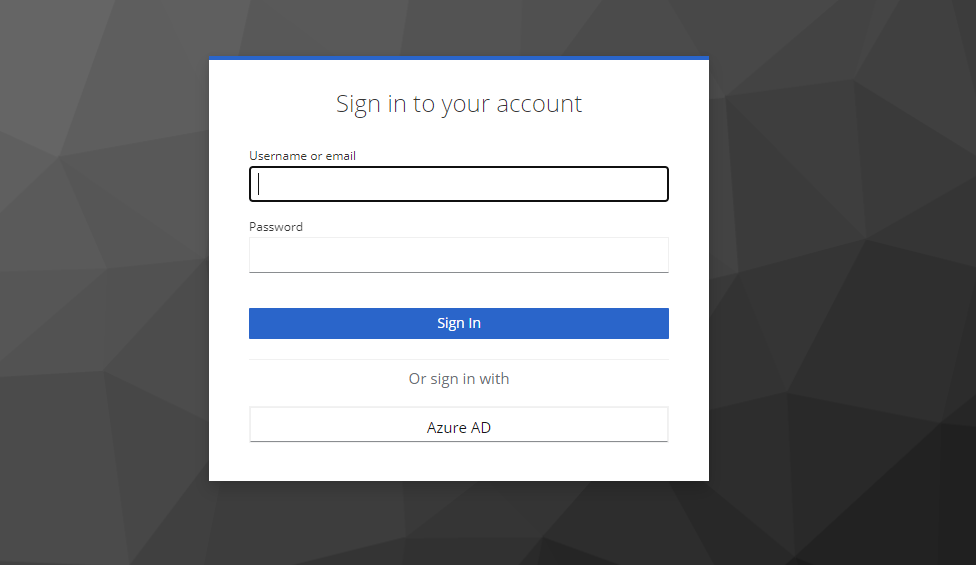

I succesfully reach this screen:
![image](https://user-images.githubusercontent.com/112934761/233110057-1e4b0e2a-3152-40e3-8249-e38b3c0adc23.png)

But after entering my credentials using the Azure AD button, I am presented with the above 403 error.
