FastLED color temperature / WWA strip support

Open
#260 10 comments 7 reactions 0 assignees View on GitHub
component: addressable component: light enhancement
Dominant language
No language data
Stars
450
Forks
29
PR merge metrics
No merged PRs in 30d

Description

**Describe the problem you have/What new integration you would like**

- Be able to set color temperature instead of RGB values for RGB LED chip

- Be able to control WWA LED chip (white+ warm white + amber) in the same way the cwww light platform do to control SK6812 chip for instance (basically the same as ws2812) that have the 3 white channel instead of 3 color channel.

**Please describe your use case for this integration and alternatives you've tried:**

- To control the RGB LED strip with temperatures values I'm using a conversion table + node-red.

- For the SK6812 I'm using it as a regular RGB LED strip. Just mapping the RGB value to the corresponding temperature :

```
color1800k = {cw: 0, ww: 0, a: 255}
color3000k = {cw: 0, ww: 255, a: 0}
color7000k = {cw: 255, ww: 0, a: 0}
```
_cw = cold white, ww = warm white, a = amber_

**Additional context**

My final goal with those SK6812 is to be able to simulate indoor sunlight.

I'm actually using node-red + Arduino sketch + MQTT to achieve that, but it's really messy and over complicated.

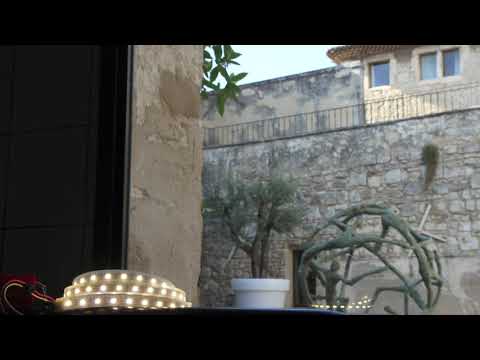

[![video](http://img.youtube.com/vi/D_Tr3xCa_PM/0.jpg)](http://www.youtube.com/watch?v=D_Tr3xCa_PM "Video Title")
_SK6812 Timelaps_

I'm checking the actual date / location with a random API on internet to get the exact time of sunrise, sunset, solarnoon, twilight begin / end, then I'm fixing some arbitrary temperatures for those events, and I'm just sending every minute via MQTT a different light temperature, with a nice and soft transition during the day.

But I'm looking for a better way to implement that since again my actual setup is really messy and hard to deploy / maintain.

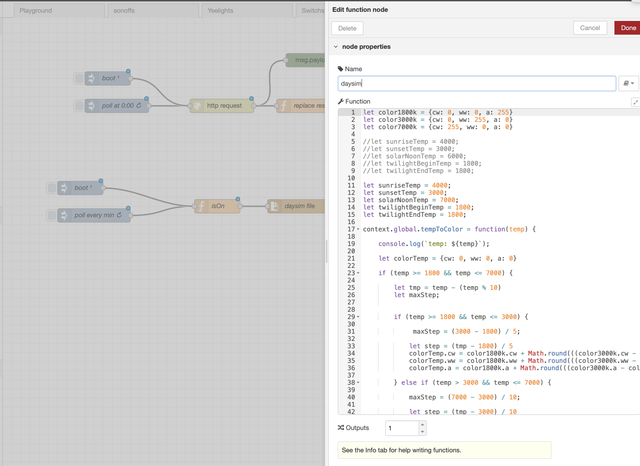

![node-red](https://i.ibb.co/ChwXM6x/Capture-d-cran-2019-06-01-13-10-35.png)

maybe in a future release we can have a light platform that automatically light up with an automatically calculated temperature according to a set location and timezone, that would be really great, but until then, being able to just set temperature on RGB LED and control WWA LED would be really helpful.
