Using bond type 8 results in removal of implicit hydrogens from the whole molecule in png

Open
#3,795 1 comment 0 reactions 0 assignees View on GitHub
Export to SVG/PNG User`s Feedback
Dominant language
C++
Stars
406
Forks
134
Avg merge
2d 11h
Merged PRs (30d)
24

Description

**Steps to Reproduce**
1. Open the attached molfile
[ketcher_2.txt](https://github.com/epam/ketcher/files/9943302/ketcher_2.txt)
2. Click on 'save as png'
3. See missing hydrogens of the CH3-group (as an example)

**Expected behavior**
groups/atoms that are not involved in the bond formation including bond type 8 should have implicit hydrogens given in the png (as it is expected from the ketcher editor - see attached screenshot

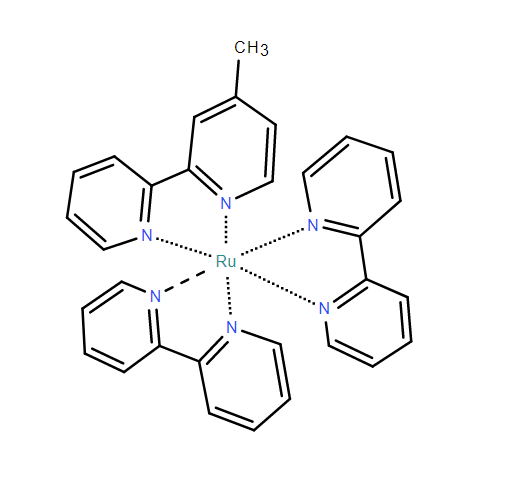

![Screenshot (123)](https://user-images.githubusercontent.com/7559189/200109711-5e3b2f9a-ca1b-4acf-a484-c362061beb3d.png)
)

**Actual behavior**
Currently, the implicit hydrogens are removed in the png
![image](https://github.com/epam/Indigo/assets/26869421/de84b007-f9b6-45f2-b74b-7982185a8a70)

Behavior is platform independent

Linked to https://github.com/epam/ketcher/issues/4539
