Mismatch between ActivityLivecycle casing and Designer casing prevents correct instance color coding

Open
#2,845 0 comments 0 reactions 0 assignees View on GitHub
bug triaged
Dominant language
C#
Stars
7.9k
Forks
1.5k
Avg merge
15h 22m
Merged PRs (30d)
114

Description

Props for the `ActivityLifecyclcle` are defined using uppercase in
https://github.com/elsa-workflows/elsa-core/blob/77dbbad3caf5756b1cbb734c2ab6a3ad27693d9d/src/core/Elsa.Core/Models/ActivityLifecycle.cs#L5

This is checked against a lowercase property in the designer
https://github.com/elsa-workflows/elsa-core/blob/2733a642f258187fb0717182d3ebd2e0d608eea8/src/designer/elsa-workflows-studio/src/components/screens/workflow-instance-viewer/elsa-workflow-instance-viewer-screen/elsa-workflow-instance-viewer-screen.tsx#L269

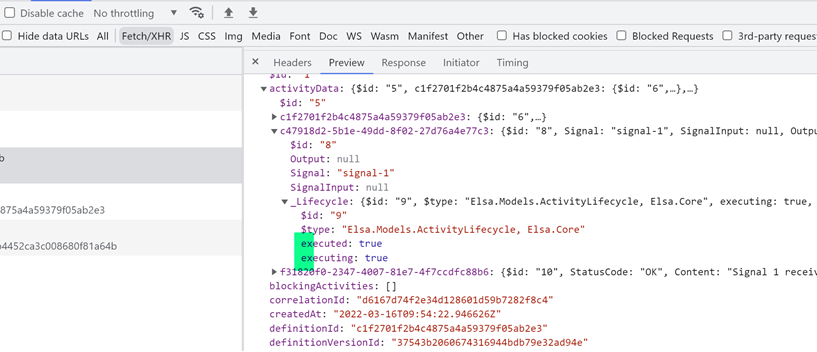

The interesting part is that the latest docker sample server claims to return an `Elsa.Models.ActivityLycle` type, however, the response is lowercase.

![image](https://user-images.githubusercontent.com/581644/158602015-53a4c4ba-8d34-4f57-971a-b24d06f81204.png)

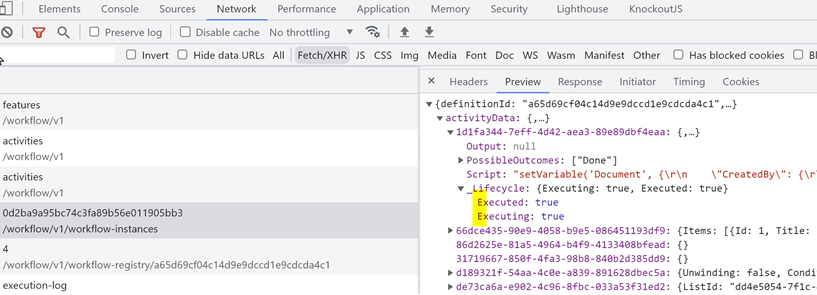

While our server that's on Elsa2.5 and is using mongo persistence the response doesn't have a `$type` prop, however, the casing looks correct.

![image](https://user-images.githubusercontent.com/581644/158602398-5cba2875-c07a-4198-9a97-45b31a4f3a43.png)

As a short-term workaround would be to check against both cases in the designer, however, it's probably cleaner to enforce the correct usage of `Elsa.Model.ActivityLifecycle` on the server.
