Description

## Summary

Workflow step types can now use the step-level `if` condition to skip a step, in cases where they couldn't before.

**Before:** Ten step types — `wait`, `waitForInput`, `waitForApproval`, `data.set`, `elasticsearch.*`, `kibana.*`, `parallel`, `merge`, `workflow.execute`, and `workflow.executeAsync` — rejected `if` with a validation error, even though the workflow engine already evaluated `if` for every step type at execution time.

**Now:** Every step type accepts `if`, with two exceptions:
- The `if` step itself still doesn't accept a step-level `if` — it already branches on its own `condition` property, and a conflicting step-level `if` is now explicitly rejected (previously it was silently ignored).
- A plain step nested inside a `parallel` branch still can't use `if`. However, `if` is now accepted directly on the `parallel` step, letting you gate the entire parallel block on one condition.

**Also new:** `if` (and the `if` step's `condition`) are now capped at 2000 characters, to keep condition parsing (KQL) within the Elastic Stack's limit.

**Why this needs docs:** The schema diff (spec/schema.ts, spec/schema.test.ts) adds `if` acceptance to exactly the ten step types the PR body names, and the internal parallel_step.md doc explicitly confirms `if` is now valid on the parallel step itself — which makes the public Parallel step doc page's current blanket statement that the parallel step doesn't accept `if` factually wrong going forward.

## Resources

- PR [#279210](https://github.com/elastic/kibana/pull/279210) — [One Workflow] Allow `if` on all step types
- Product issue: https://github.com/elastic/kibana/issues/279171

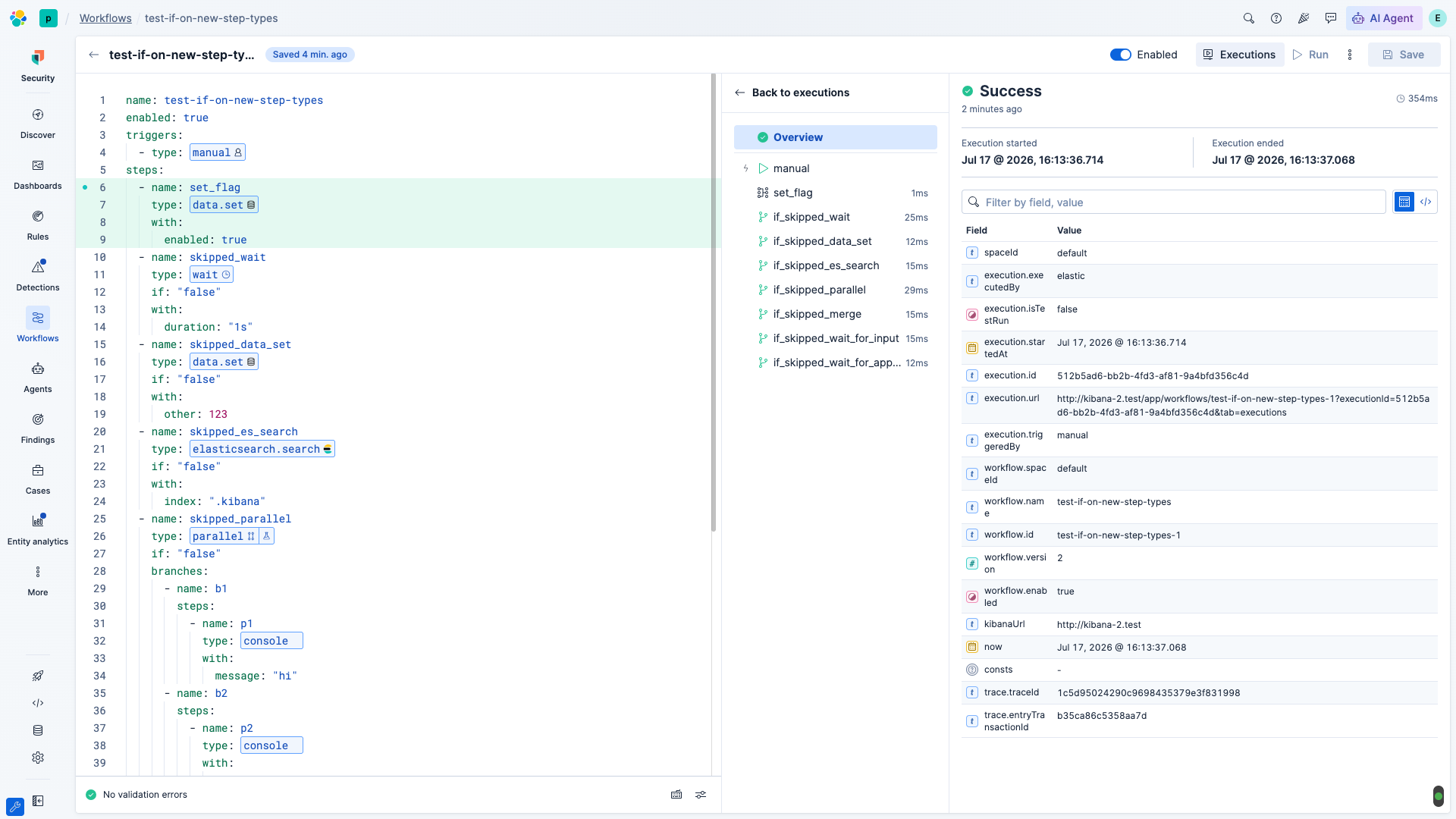

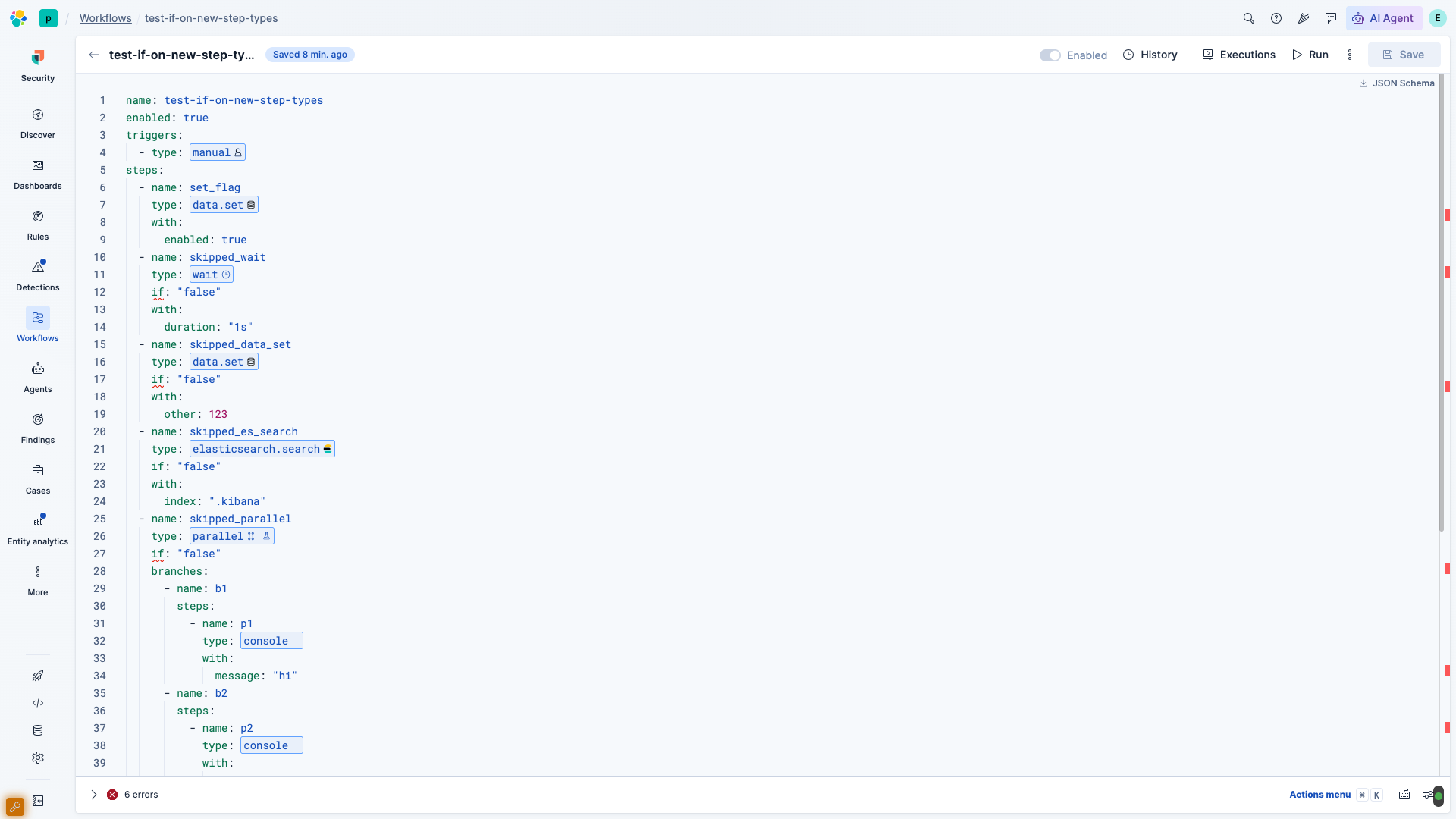

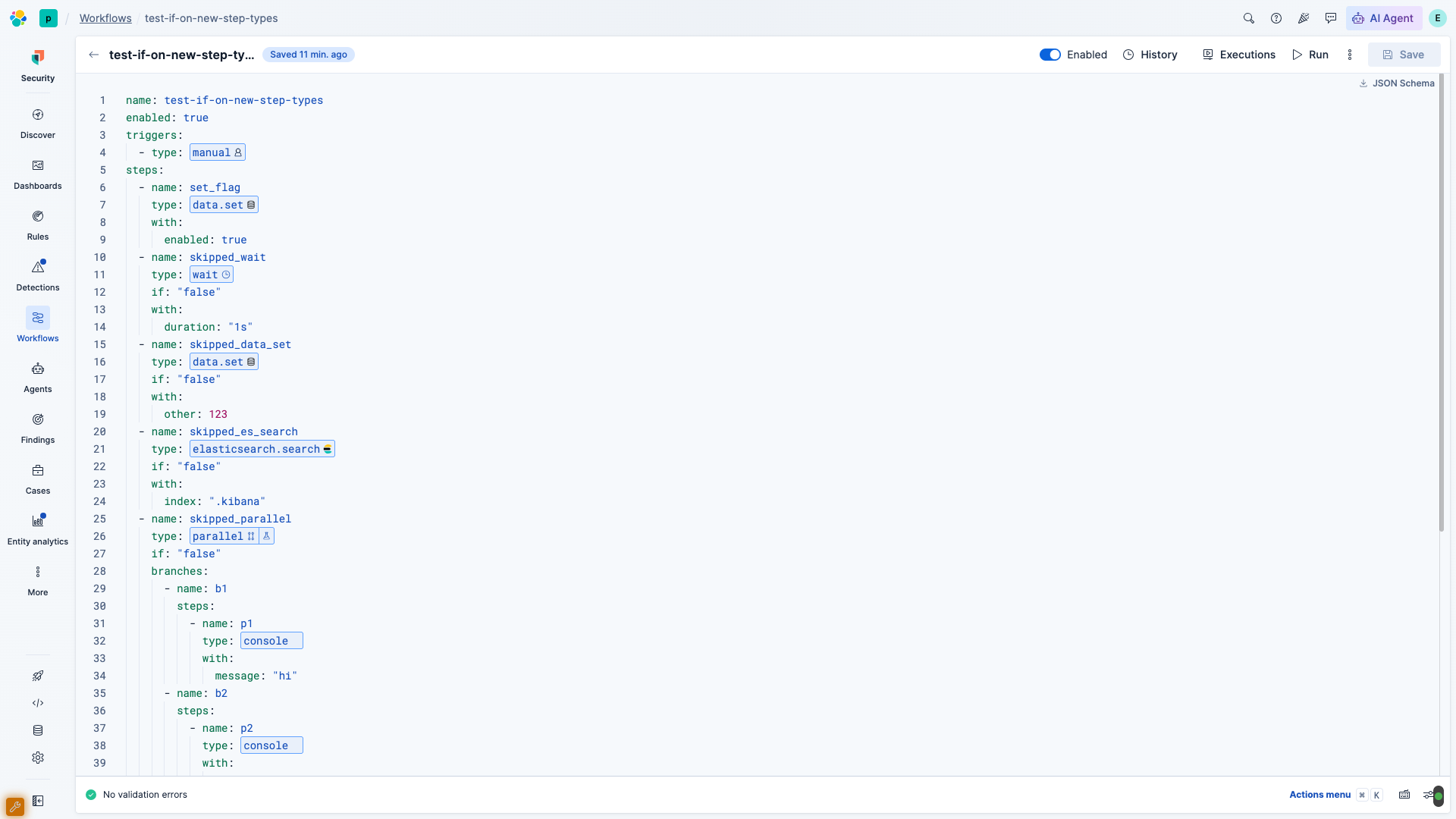

Screenshots from PR

![screenshot](https://pub-6b50802d113345dea50c783e8280b53e.r2.dev/artifacts/20260717/t941q5cz-before-editor.png)
![screenshot](https://pub-6b50802d113345dea50c783e8280b53e.r2.dev/artifacts/20260717/flztp9m8-after-editor.png)
![screenshot](https://pub-6b50802d113345dea50c783e8280b53e.r2.dev/artifacts/20260717/1mpcy8kf-after-execution-detail.png)

## Availability

| Channel | Details |
|---------|---------|
| **Stack** | v9.4.0, v9.5.2, v9.6.0 |
| **Serverless** | Aug 17–Aug 21 |
| **Feature flag** | None — active by default |

---
*Created with [Docs Quest Scanner](https://github.com/florent-leborgne/docs-quest-scanner) by @nastasha-solomon*

## Suggested edits

[Parallel](https://www.elastic.co/docs/explore-analyze/workflows/steps/parallel) > Handle branch failures
- **What the docs say:** "The parallel step doesn't accept on-failure or if as top-level parameters."
- **What to add:** Update this sentence: the parallel step now accepts `if` as a top-level parameter, which gates the whole block (all branches run only if the condition is true); only `on-failure` remains unsupported as a top-level parameter on `parallel`. Applies from 9.4.0 and in serverless.

[Parallel](https://www.elastic.co/docs/explore-analyze/workflows/steps/parallel) > Branch body limitations
- **What the docs say:** The limitations table lists nested flow control (if, switch, foreach, while), human-in-the-loop waits, step-level on-failure, and step-level timeout as rejected inside a branch body, with no row distinguishing a plain step's own `if` property from a nested `if` step type.
- **What to add:** Add a row noting that a step-level `if` property on an ordinary step is also rejected inside a branch body (separate from nesting a full `if` step type), since `if` is now valid on regular steps everywhere else. Point authors to set the condition on the parallel step itself or evaluate it in a step before the fan-out instead. Applies from 9.4.0 and in serverless.

[waitForInput](https://www.elastic.co/docs/explore-analyze/workflows/steps/wait-for-input) > Parameters
- **What the docs say:** The Parameters table lists `name`, `type`, `timeout`, `message`, `schema`, and `channels` as the step's fields. There's no `if` entry.
- **What to add:** Add an `if` row (top level, optional) noting that a step-level `if` condition can now gate whether the `waitForInput` step runs at all, the same as any other step type. Applies from 9.4.0 and in serverless.

[waitForApproval](https://www.elastic.co/docs/explore-analyze/workflows/steps/wait-for-approval) > Parameters
- **What the docs say:** The Parameters table lists `name`, `type`, `timeout`, `message`, `approveLabel`, `rejectLabel`, and `channels`. There's no `if` entry.
- **What to add:** Add an `if` row (top level, optional) — the step now accepts a step-level `if` condition like any other step type. Applies from 9.4.0 and in serverless.

[Wait](https://www.elastic.co/docs/explore-analyze/workflows/steps/wait) > Parameters (before "Duration format")
- **What the docs say:** The parameter list shows only `name`, `type`, and `with.duration`. There's no `if` entry.
- **What to add:** Add an `if` row noting the step now accepts a step-level `if` condition to skip the wait entirely, like any other step type. Applies from 9.4.0 and in serverless.

**Also reviewed, no changes needed:**
- **Action steps** (Elasticsearch action steps, Kibana action steps, Data action steps, Composition steps): these reference pages only document each action's `with`-block parameters, not the common top-level fields every step shares (`name`, `type`, `if`, `on-failure`, `timeout`) — so they never claimed `if` was unsupported, and don't need a correction. The `merge` step type named in the PR doesn't currently have a public reference page in the step catalog, so there's nothing to update for it either.
- **AI steps** (`ai.prompt`, `ai.classify`, `ai.summarize`, `ai.agent`): the AI steps page already correctly lists `if` as a supported top-level field ("alongside `name`, `type`, `if`, `foreach`"). These step types weren't in the PR's list of ten and were unaffected by this change.
- **Flow control steps overview**: the per-step summaries don't make an `if`-support claim beyond what's already covered in the Parallel edits above.
