Description

### Problem description

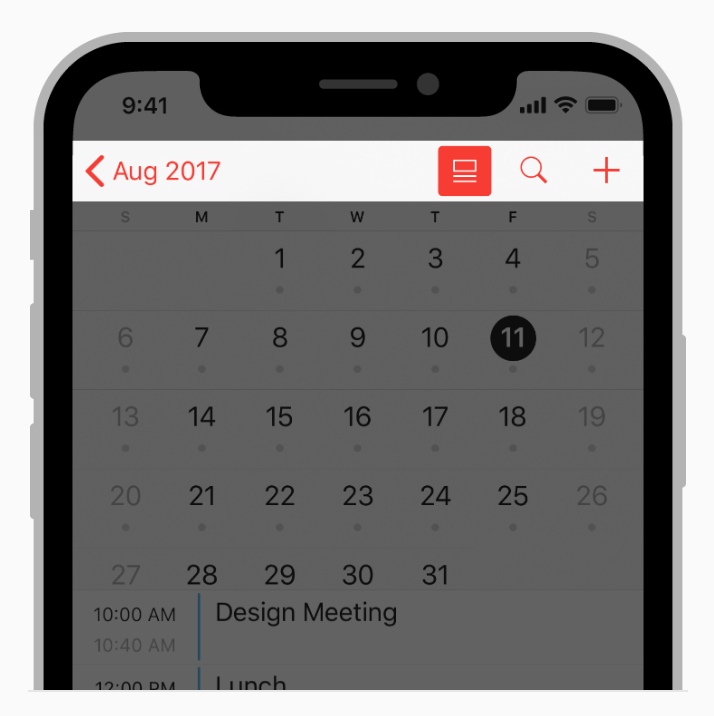

Back buttons on iOS [often show a label with the title of the previous screen](https://developer.apple.com/design/human-interface-guidelines/ios/bars/navigation-bars/):

> When a new screen is displayed, a back button, often labeled with the title of the previous screen, appears on the left side of the bar.

Screenshot 2020-02-12 at 11 32 17

(image source: https://developer.apple.com/design/human-interface-guidelines/ios/bars/navigation-bars)

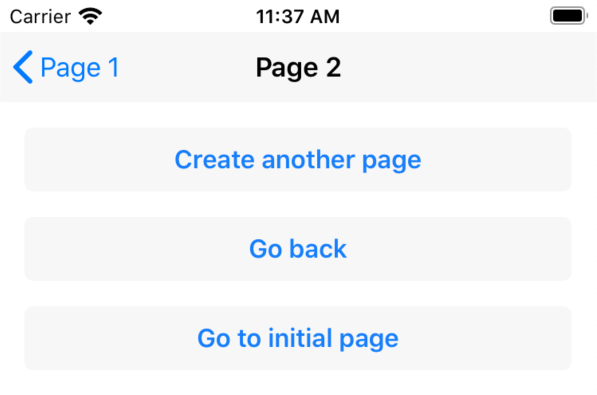

The default back navigation action in Tabris.js behaves like that as well:

Screenshot 2020-02-12 at 11 37 05

When using a custom action with `placement` set to `"navigation"`, the action will currently only display an image. The title text of the action is not rendered when set together with an image.

### Expected behavior

It should be possible to set both navigation title and image to be able to implement a custom back navigation button according to Apple's HIG.

### Environment

- Tabris.js version: 3.3
- OS: iOS

### Code snippet

Modified the navigationview-action-placement.jsx snippet for the navigation action to include both an image and a title:
```javascript
import {Action, NavigationView, contentView, device} from 'tabris';

contentView.append(





);

function getImage(image) {
return 'resources/' + image + (device.platform === 'iOS' ? '-black-24dp@3x.png' : '-white-24dp@3x.png');
}
```

Contributor guide

Open the contributing guide

Research direction

Start with the modified navigationview-action-placement.jsx example and inspect how an Action with placement='navigation' is rendered on iOS. Reproduce the case with both title='Last Page' and an image, then verify that the navigation button displays both elements while preserving the existing default and overflow actions.

Written by the indexing model from the issue text.
