dotnet / dotnet/maui

Image with Aspect of AspectFill in CollectionView item is not clipped to the item bounds

Open
#7,111 9 comments 0 reactions 0 assignees View on GitHub
area-controls-image platform/ios s/triaged s/verified t/bug
Dominant language
C#
Stars
23.3k
Forks
2k
Avg merge
1d 15h
Merged PRs (30d)
290

Description

### Description

I created a new MAUI app in Visual Studio Community 2022 V 17.2.0 Preview 6.0, and Microsoft.Maui.Dependencies/Extensions 6.0.300-rc.2.5513. I then added a CollectionView based on demo code at https://docs.microsoft.com/en-us/dotnet/maui/user-interface/controls/collectionview/layout. The app code is public at https://github.com/gbarkerz/MyMauiAppAccessibility. The image contained within each item has fixed dimensions of 60x60, and an Aspect of AspectFill.

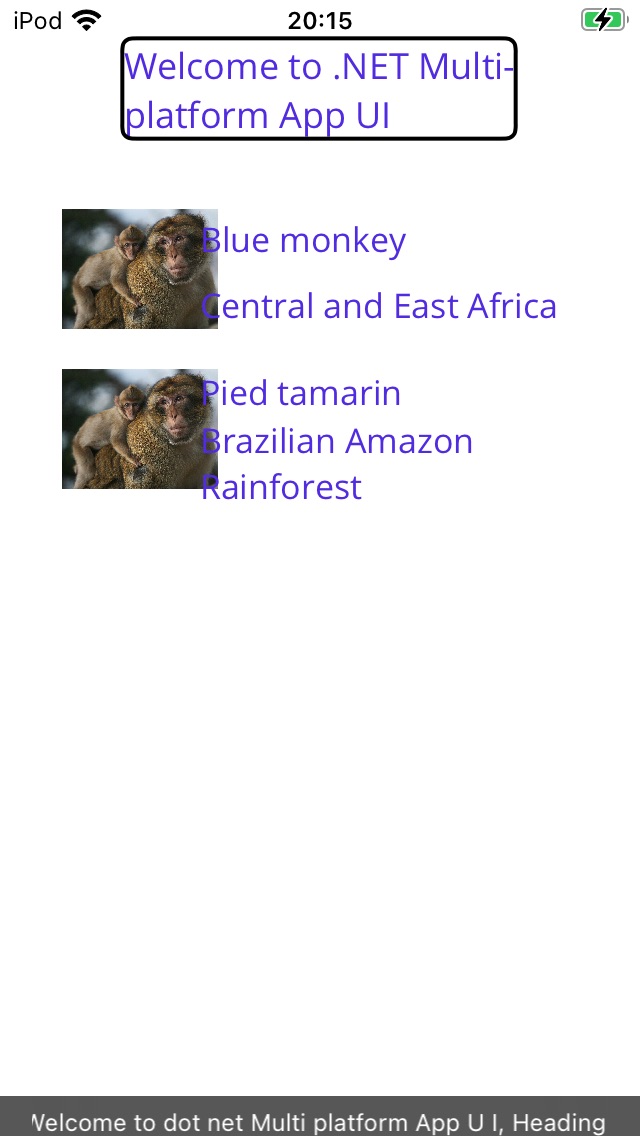

When the app is run, the displayed image bounds are not clipped at 60x60, rather the image overflows the Image bounds, as shown in the image below. I would expect the displayed image to be clipped at the Image bounds.

![Image overflow](https://user-images.githubusercontent.com/77085891/168160522-ee361bab-8402-4121-ab56-955791045486.jpeg)

### Steps to Reproduce

1. Create a new MAUI app in Visual Studio Community 2022 V 17.2.0 Preview 6.0, and Microsoft.Maui.Dependencies/Extensions 6.0.300-rc.2.5513.
2. Add a CollectionView based on demo code at https://docs.microsoft.com/en-us/dotnet/maui/user-interface/controls/collectionview/layout, and have each item contain an Image with fixed bounds and an Aspect of AspectFill.
3. Run the app and note that the displayed image overflows the Image bounds.

### Version with bug

Release Candidate 2

### Last version that worked well

Unknown/Other

### Affected platforms

iOS

### Affected platform versions

iOS 15

### Did you find any workaround?

_No response_

### Relevant log output

_No response_

Contributor guide

Open the contributing guide

Research direction

Start with the public MyMauiAppAccessibility reproduction and the CollectionView layout sample linked in the issue. Run the app on iOS 15 and inspect the CollectionView item Image configured with fixed 60x60 bounds and AspectFill. Done means the displayed image is clipped to the Image bounds instead of overflowing.
